Operators manual
V 1.0EN | Aug 2023
Magnetic drilling machine
ECO.40
S+/P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO.40 P and is the answer not in the manual?

Questions and answers

Summary of Contents for Euroboor ECO.40 P

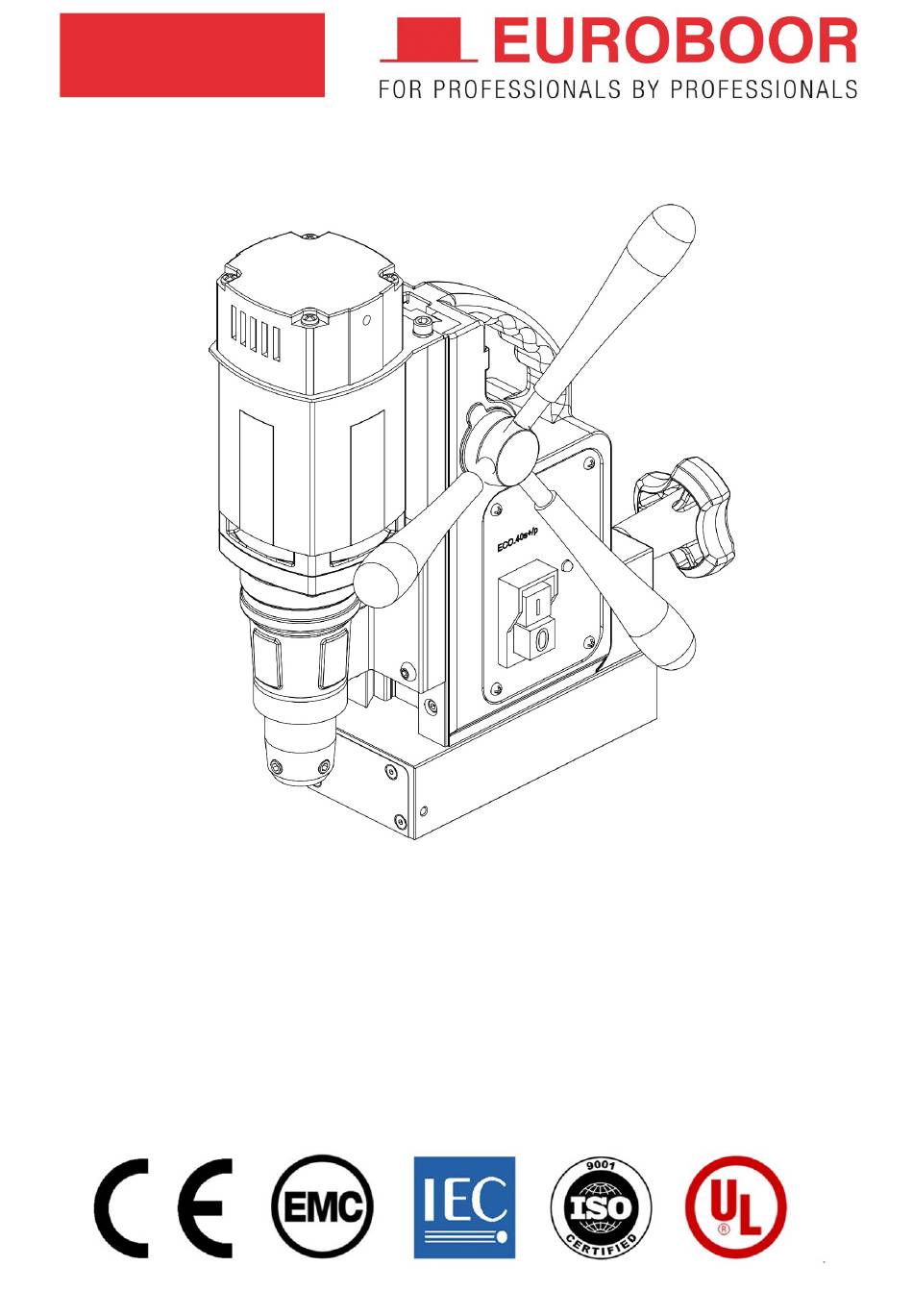

  • Page 1: Eco.40 S+/P

    Operators manual V 1.0EN | Aug 2023 Magnetic drilling machine ECO.40 S+/P...
  • Page 2 Congratulations on purchasing this premium magnetic drilling machine. At Euroboor we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
  • Page 3: Table Of Contents

    Table of contents ECO.40 S+/P ..........................1 Table of contents ......................... 3 1. Safety ............................4 1.1 General safety instructions ......................4 1.2 Specific safety information ......................6 2. Description ..........................8 2.1 Intended use ..........................8 2.2 Description and features ....................... 8 2.3 Box contents ..........................
  • Page 4: Safety

    1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’ , including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION.
  • Page 5 If you detect damage have the machine serviced before use. Many accidents are caused by poorly maintained tools; 10. Only use accessories that are recommended by Euroboor for your machine model. Accessories that are suitable for one machine may become hazardous when used on another...
  • Page 6: Specific Safety Information

    • Always use the recommended speed for the accessories and material you are working with; • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. Euroboor offers a wide range of well-considered cooling and lubrication products to match your requirements;...
  • Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: • Impairment of hearing; • Risk of personal injury from flying particles; Risk of burns due to accessories becoming hot during operation; •...
  • Page 8: Description

    ,twist drills, and for countersinking and reaming in a weather-protected environment using the application tools and accessories recommended by EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. 2.2 Description and features...
  • Page 9: Box Contents

    2.3 Box contents 1 ECO.40S+/P Magnetic drilling machine 1 x safety guard 3 x handles 1 x hex key 2.5 mm 1 x hex key 3 mm 1 x hex key 4 mm 1 x hex key 5 mm 1 x lubrication system 1 x safety chain 1 x ear protection 1 x safety goggles...
  • Page 10: Technical Data

    2.5 Technical data Metric Imperial Annular cutting Ø 12 - 40 mm Ø 7/16"- 1 9/16" Twist drilling Ø 1 - 16 mm Ø 1/16" - 5/8" Threading Countersinking Ø 10 - 45 mm Ø 3/8" - 1 3/4" Length 360 mm 14 3/16"...
  • Page 11: Symbols

    Dimensions (inches) 2.6 Symbols Symbol Term, meaning Explanation Be sure to read the documentation in this user Read documentation manual and specifically the “General safety instructions” and ‘’Specific safety information’’. Wear ear protection Use ear protection during operation. Wear eye protection Use eye protection during operation.
  • Page 12: Environmental

    Symbol Term, meaning Explanation Millimeter Unit of measure for the dimensions. " Inch Unit of measure for the dimensions. Kilogram Unit of measure for the mass. Pound Unit of measure for the mass. Volt Unit of measure for the electric voltage. Ampere Unit of measure for the electric current intensity.
  • Page 13: Preparation & Adjustment

    3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury.
  • Page 14: Prior To Use

    Your Euroboor magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required. If the supply cord is damaged, it must be replaced by a specially prepared cord available at Euroboor or your Euroboor dealer.
  • Page 15: Using The Machine

    4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum ease of use and safety.
  • Page 16 The permanent magnet has been demagnetized We want to point out that above mentioned precautions and indicator do not guarantee that the magnet will not release from the material. Euroboor accepts no liability when it comes to the magnet not functioning or functioning poorly.
  • Page 17: Switching Magnet On/Off

    4.3 Switching magnet ON/OFF [image 4-3] [image 4-2] Activating the magnetic holding force by rotating the switch knob clockwisely,the magnet LED indicator lights up in green, to indicate that the magnetic holding force is sufficient for drilling. Inactivating the magnetic holding force by press the switch knob and rotating the switch knob counter-clockwisely,the magnet LED indicator goes off ,to indicate that the magnetic holding force is off.
  • Page 18 WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste. Make sure to use only suitable cutting lubricants. Euroboor offers a wide range of cutting lubricants for all tool and material combinations. Proper lubrication will help you create better and faster...
  • Page 19: Working With Operation Tools

    5. Working with operation tools 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole.
  • Page 20: Twist Drills

    12. Remove the burrs, metal chips and clean the cutter and surface without getting injuries. The metal slug can be sharp and very hot! 5.2 Twist drills 1. Fit the twist drill: [image 5-3] [image 5-2] Weldon shank twist drills: Fit a Weldon shank twist drill (such as Euroboor SPI/SSPI-series) directly to the machine;...
  • Page 21: Countersinks

    Straight shank twist drills Use a Weldon drill chuck adapter (such as Euroboor IBK.14, adapter 19.05 mm (3/4") Weldon (external) to 1/2" x 20 UNF) to fit a drill chuck and straight shank twist drill accordingly; Precisely mark the center of the hole, and use the tip of the twist drill to position the...
  • Page 22: Maintenance

    6. Maintenance Your EUROBOOR magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs.
  • Page 23 Repair, modification and inspection of EUROBOOR Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.
  • Page 24: Trouble Shooting

    7. Trouble shooting Permanent magnet and motor do not - Damaged permanent magnet function - Damaged or defective wiring - Defective fuse - Defective control unit - Defective power supply Magnet does function, the motor does - Damaged or defective wiring not work - Carbon brushes are stuck or worn out - Defective On / Off switch...
  • Page 25: Exploded View & Spare Part List

    8. Exploded view & spare part list 8.1 Exploded views...
  • Page 27: Spare Parts List

    8.2 Spare parts list Part no. Description Part no. Description 0012 Cross pan head tapping 020.0471 Hexagon socket screw screw 040S.0022 End Cover 040S.0024 Slide 020.0278 LED red alarm indicator 020.0309 Hexagon socket screw 032.0136 Flat set screw 020.0106A Hexagon socket screw 032.0141-1 Carbon brush holder spring...
  • Page 28 Part no. Description Part no. Description 032T.0009 Panel washer 040.0012 Gear holder 032.1008Z Common control unit 018.0044 Hexagon socket screw 020.0001Z Common control unit 020.0074 Hexagon socket screw 050T.0015 Plate plastic case 018.0045 050T.0017 Cooling plate 040.0015 Gear 050T.0016 018.0046 Gear 050T.0340 Screw...
  • Page 29: Wiring Diagram

    8.3 Wiring diagram...
  • Page 30: Warranty And Service

    Service To maximise the lifetime of your Euroboor machine always use service and parts from an official Euroboor distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of Euroboor products in your country.
