Summary of Contents for Euroboor ECO.55S/T
- Page 1 Operators manual V 1.5 EN Magnetic drilling machine ECO.55S/T Serial number: Date of purchase: Don’t forget to register your machine at: www.euroboor.com/register [ only when registered you benefit from extended warranty ]...

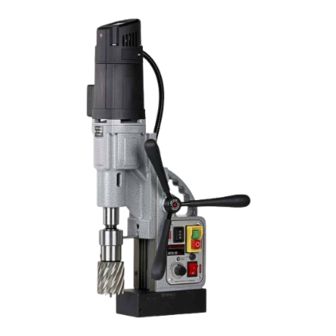

- Page 2 Congratulations on your purchase of the Euroboor ECO.55S/T portable magnetic drilling machine. Your model is designed to produce superior holes quickly and efficiently. Through years of experience, constant innovation and development, Euroboor is committed to provide you with metal cutting tools and products to help you be more productive.
-
Page 3: Table Of Contents
Table of contents 1. Safety 1.1 General safety instructions 1.2 Specific safety information 2. Description 2.1 Intended use 2.2 Description and features 2.3 Box contents 2.4 Serial number 2.5 Technical data 2.6 Symbols 2.7 Environmental 3. Preparation & adjustment 3.1 Assembly 3.2 Prior to use 4. -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the “General Safety Instructions”, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury including following. - Page 5 If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. 9. Use only accessories that are recommended by Euroboor for your model. Accessories that may be suitable for one machine, may become hazardous when used on another machine.
-
Page 6: Specific Safety Information
1.2 Specific safety information • Keep your fingers well out of the drill area; • Avoid touching the drilled core that is automatically ejected by the centering pin when the working procedure is finished. Contact with the core when it is hot, or if it falls, can cause personal injuries;... -
Page 7: Description
EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. -
Page 8: Box Contents
2.3 Box contents 1 Carrying case 1 Magnetic drilling machine 1 Instruction manual 3 Handles 1 Drill guard + 2 bolts 1 Oil tank + attachment pin 1 Bottle cutting oil 3 Allen keys (2.5, 4, 5) 1 Safety chain 1 Morse Taper 3 spindle 1 Spindle drift 4 Tap collets (DIN 376 M10/M12/M14/M16) -
Page 9: Technical Data
2.5 Technical data ANNULAR CUTTERS Ø 12 – 55 mm Ø 7/16”– 2 3/16” TWIST DRILLS Ø 1 – 23 Ø 1/16” – 15/16” THREADING M3 – M20 M3 – M20 COUNTERSINKING M10 – M60 M10 – M60 LENGTH 320 mm 12 5/8”... -
Page 10: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be absolutely sure to read the enclosed Read documentation documentation such as the Instruction Manual and the General Safety Instructions. Wear ear protection Use ear protection during operation. Wear eye protection Use eye-protection during operation. Danger/warning/caution Observe the information in the adjacent text! European conformity symbol... -
Page 11: Environmental
2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. -
Page 12: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. -
Page 13: Prior To Use
Please make sure that the contacting surface for the magnet is level, clean and rust-free. Remove any varnish or primer. When working on materials that are not magnetizable, suitable fixation devices, obtainable as accessories from EUROBOOR, e. g. suction plate, vacuum plate or pipe-drilling device must be used. -
Page 14: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum operating facility and safety. -
Page 15: Morse Taper Spindle
4.2 Morse taper spindle [image 2-3] [image 2-4] 1. Make sure the inside of the output shaft and the Morse Taper spindle are clean and free of grease 2. Align the coolant ring rotation limiter with the recess in the gearbox (A) 3. -
Page 16: Gearbox
4.3 Gearbox 1. To select the correct gear from neutral (horizontal) position: a. Rotate the switch counter clockwise to position o, this is gear 1 b. Rotate the switch clockwise to position oo, this is gear 2 2. A gear is only correctly selected when the gearbox switch is aligned with the indicators on the gearbox. -
Page 17: Electromagnet
4.4 Electromagnet Make sure the magnetic drilling machine is placed on a smooth, clean, level and solid surface without any objects or dubree in between to guarantee maximum adhesion The workpiece must be at least 5 mm thick for the magnet to stick, but minimal 3 mm thick to hold the weight of the machine and to drill safely. -
Page 18: Switching Motor On And Off
Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine. Euroboor magnets have 2 coils; make sure that both coils are in contact with the material. Do not connect any other machines to the electrical outlet the magnetic drilling machine is plugged into, as it may result in the loss of magnetic force. -
Page 19: Led Display & Torque Control
4.8 LED display & torque control This machine is equipped with an electronic display, showing: Used motor power LED indicators 1. Switch on the electromagnet. All LED indicators shortly light up and a beep sounds 2. Switch on the motor and start drilling. When the tool first touches the workpiece the used motor power shown in the display increases, and can be increased or decreased by raising of reducing the pressure on the feed handles. -
Page 20: Temperature Control
WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste Make sure to use only suitable cutting oil or fluid. Euroboor offers a wide range of cutting lubricants for all tool and material combinations. Proper cooling will help you create better and faster results,... -
Page 21: Working With Operation Tools
5 Working with operation tools 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. - Page 22 3. Use the pilot pin to position the machine and in the correct position, with the tip of the pilot pin to meet the marked center of the hole. 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece.
-
Page 23: Twist Drills
5.2 Twist drills 1. Remove the Morse Taper arbor (see chapter Gearbox) 2. Fit the twist drill a. Straight shank twist drills [image 3-2] b. Morse Taper shank twist drills [image 3-3] Morse Taper 2 [image 3-4] Morse Taper 3... -
Page 24: Machine Taps
Steps 4-12: see chapter Annular cutters. Make sure the machine runs at maximum speed for twist drills! 5.3 Machine taps The ECO.55S/T model is equipped with a reversible direction of rotation and can also be used for cutting threads. Proceed as follows for cutting threads: 1. Install the tap [image 3-5] 2. -
Page 25: Countersinks
Switch on the machine again and allow the machine tap to come completely out of the work piece. Then guide the motor unit slide upwards at handles to avoid damaging the start of the thread. DO NOT LET YOUR TAP PUSH UP THE MOTOR UNIT BY ITSELF!! Make sure the properly lubricate while performing tapping work, see chapter Annular cutters 5.4 Countersinks Thanks to its wide range of operating speeds, the machine can also be used for reaming or counter-... -
Page 26: Maintenance
6. Maintenance Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 27 Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorized dealer. The spare parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
-
Page 28: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective Control Unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 29 Insufficient magnetic force - Damaged or defective wiring - Bottom of magnet not clean and dry - Bottom of magnet not flat - Work piece is not bare metal - Work piece is not clean or flat - Work piece is less than 10 mm (too thin) - Defective Control Unit - Defective magnet Frame under voltage...
-
Page 30: Exploded View & Spare Part List
8. Exploded view & spare part list 8.1 Exploded views... -
Page 33: Spare Part Lists
Rear panel plate 230V 050.0261 Baffle 055.0002A Rear panel plate 110V 050T.0346 Rubber ring 055T.1018 ECO.55S/T Speed control unit - 220V 050T.0180 Armature speed disk 055T.1018A ECO.55S/T Speed control unit - 110V 032.0126 Bearing 8x22x7 608 020.0081 End Screw BKVZM6x20 050T.0183... - Page 34 020.0257 Capacitance Cas.55 Black case with inlay 032T.0009 Spacer KSP.Q2 Coolant System Quick Connect 050T.0001 Front pannel plate IBO.10.200 Cutting Oil 200ml Motor switch (5-pin) 220- 030E.0091/Y SAF.300 Protective gloves 240V Motor switch (5-pin) 110- 030E.0092/Y SAF.400 Safety chain (1 mtr) with lock 120V 020.0017 Fuse 5x20 F2A...
-
Page 35: Wiring Diagrams
8.3 Wiring diagrams...
