Page 1: Eco.32

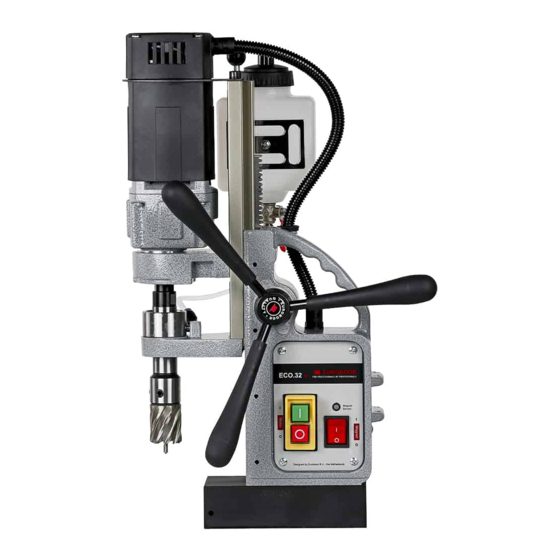

User manual V 1.0 EN Magnetic drilling machine with external motor cable and 2-way electromagnet ECO.32+ Serial number: Date of purchase: Don’t forget to register your machine at: www.euroboor.com/register [ only when registered you benefit from extended warranty ]... - Page 2 Congratulations on purchasing this premium magnetic drilling machine. At Euroboor we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
-
Page 3: Table Of Contents
Table of contents ECO.32+ ............................1 Table of contents ......................... 3 1. Safety ............................4 1.1 General safety instructions ......................4 1.2 Specific safety information ......................6 2. Description ..........................8 2.1 Intended use ..........................8 2.2 Description and features ....................... 8 2.3 Case content .......................... -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. - Page 5 If you detect damage have the machine serviced before use. Many accidents are caused by poorly maintained tools; 10. Only use accessories that are recommended by Euroboor for your machine model. Accessories that are suitable for one machine may become hazardous when used on another...
-
Page 6: Specific Safety Information
• Always use the recommended speed for the accessories and material you are working with; • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. Euroboor offers a wide range of well-considered cooling and lubrication products to match your requirements;... - Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: Impairment of hearing; • Risk of personal injury from flying particles; • Risk of burns due to accessories becoming hot during operation; •...
-
Page 8: Description
Euroboor. The magnetic drilling machine can be used horizontally, vertically or overhead. 2.2 Description and features... -
Page 9: Case Content
Additional serial no. stickers are provided with the machine for your administration. The serial number will help you, your dealer and Euroboor to validate and identify the machine. For example:... -
Page 10: Technical Data
2.5 Technical data Metric Imperial Annular cutting Ø 12 - 32 mm Ø 7/16 " - 1 1/4 " Twist drilling Ø 1 - 13 mm Ø 1/16 "- " Threading Ø 10 - 40 mm Ø 3/8 - 1 9/16 Countersinking "... -
Page 11: Environmental
Millimeter Unit of measure for the dimensions. " Inch Unit of measure for the dimensions. Kilogram Unit of measure for the mass. Pound Unit of measure for the mass. Volt Unit of measure for the electric voltage. Ampere Unit of measure for the electric current intensity. Watt Unit of measure for the output. -
Page 12: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn machine off and disconnect from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. -
Page 13: Prior To Use
Your Euroboor magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required. If the supply cord is damaged, it must be replaced by a specially prepared cord available at Euroboor or your Euroboor dealer. - Page 14 Useful tips – Try a few simple projects using scrap material until you develop a ‘’feel’’ for the magnetic drilling machine; – Let the machine run in for a period of eight to ten hours before starting with big operations. Do not load the machine too much during this run-in period;...
-
Page 15: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn the machine off and disconnect the machine from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum ease of use and safety. -
Page 16: 2-Way Electromagnet
4.3 2-Way electromagnet Make sure the magnetic drilling machine is placed on a smooth, clean, level and solid surface without any objects or debris to guarantee maximum adhesion. The workpiece must at least be 6 mm (1/4") thick for the magnet to stick and to drill safely. In case the workpiece is between 3 mm (1/8") and 6 mm (1/4"), make sure to make a proper base to create a good magnetic field as shown below. -
Page 17: Switching Motor On And Off
We want to point out that above mentioned precautions and indicators do not guarantee that the magnet will not release from the material. Euroboor accepts no liability when it comes to the magnet indicator not functioning or functioning poorly. -
Page 18: Power Surge And Fluctuation Protection
* Disclaimer: Euroboor is not liable for any damage caused to the machine due to electrical problems in the workplace. Above mentioned protection is not guaranteed in all cases of voltage and frequency spikes or fluctuations. -
Page 19: Carbon Brushes
WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste. Make sure to use only suitable cutting lubricants. Euroboor offers a wide range of cutting lubricants for all tool and material combinations. Proper lubrication will help you create better and faster... -
Page 20: Working With Drilling Accessories
5. Working with drilling accessories 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. -
Page 21: Twist Drills
3. Use the pilot pin to position the machine in the correct position, with the tip of the pilot pin to meet the marked center of the hole; 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece;... -
Page 22: Maintenance
6. Maintenance Your Euroboor magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 23 Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by Euroboor or an Euroboor authorised dealer. The spare parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
-
Page 24: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 25 Insufficient magnetic force - Damaged or defective wiring - Bottom of magnet not clean and dry - Bottom of magnet not flat - Workpiece is not bare metal - Workpiece is not clean or flat - Workpiece is less than 6 mm (too thin) - Defective control unit - Defective magnet Frame under voltage...
-
Page 26: Exploded Views & Spare Parts List
8. Exploded views & spare parts list 8.1 Exploded views... -
Page 29: Spare Parts List
8.2 Spare parts list Code no. Description Code no. Description Bearing 6003 17 x 35 ECO.32+ motor unit 032.0196 032.1001Z x 10 220V ext. cable ECO.32+ motor unit 050.0025 Pin 4 x 10 032.1001ZA 110V ext. cable 032.0206 Gear casing Torx screw M4.8 x 032.0216 036.0043... - Page 30 Code no. Description Code no. Description Frame aluminium Motor switch 220V 020.0056/X 030E.0091/Y rail (L) (5-pin) YELLOW 020.0056/S Screw SS M5 x 6 Motor switch 110V 030E.0092/Y (5-pin) YELLOW 360.1040 Motor cable cover 020.0257 Capacitance Coupling nut PG9 020.0041/H (motor cable) 020.0112 Washer M6 Capstan hub...
-
Page 31: Wiring Diagram
8.3 Wiring diagram... -
Page 32: Warranty And Service
Service To maximise the lifetime of your Euroboor machine always use service and parts from an official Euroboor distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of Euroboor products in your country.
