Chapter 6: Maintaining Your Glove Box

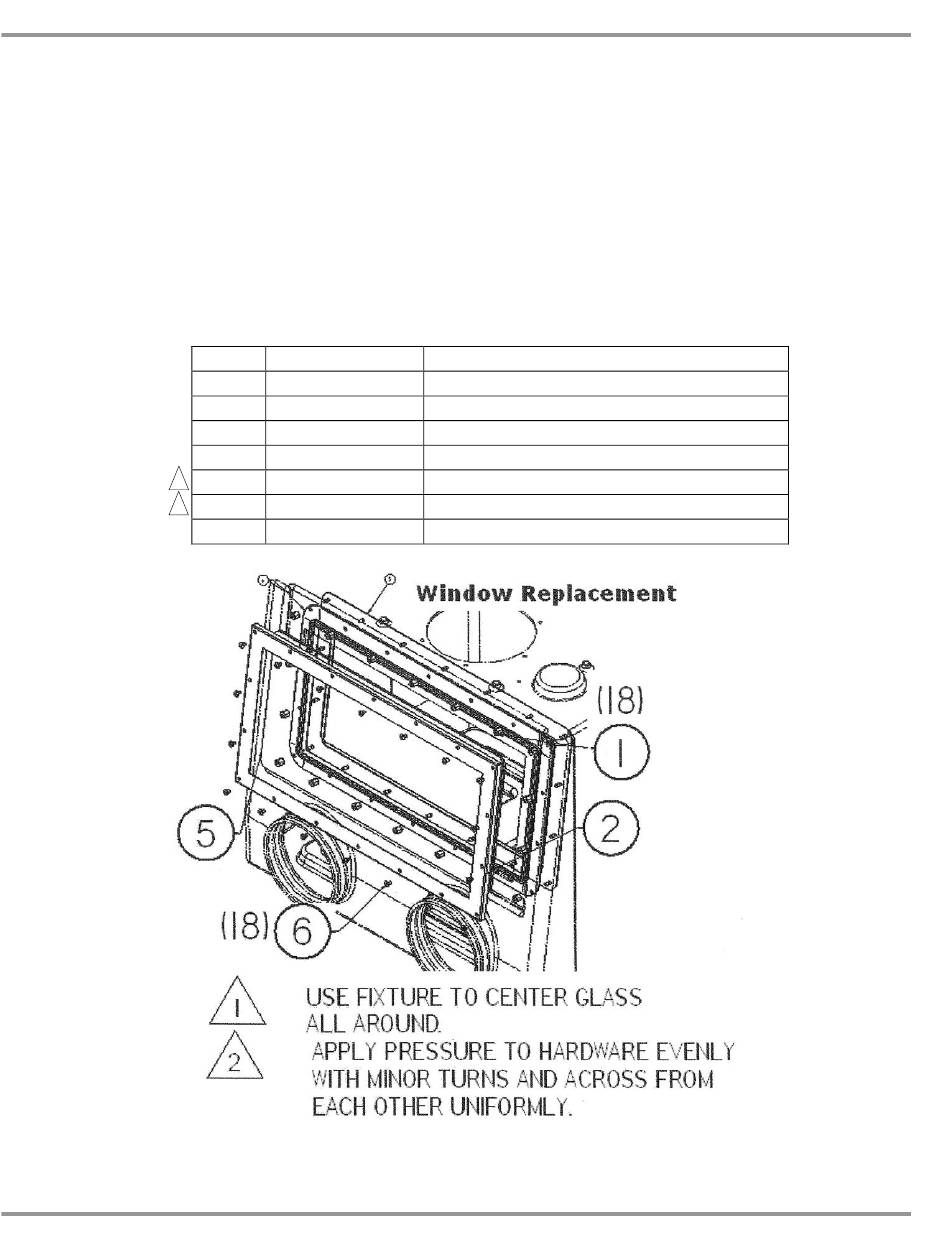

Window Replacement

Remove screws (#6) with minor turns and across from each other uniformly
(diagonally) to reduce pressure evenly. When screws are removed, take
frame (#2) and glass (#4) out (separate items – keep each secure). Before
replacing glass, tighten the anchor nuts (#1) (standoff hex nuts should be
tightened enough so the top of the flat washer is flush with plastic body of the
glove box), then replace glass and frame. Again, tighten screws with minor
turns and across from each other uniformly (diagonally) to apply pressure
evenly. Use thread lock to keep screws secure. Double sided tape should be
OK, not needed when just replacing glass.
ITEM PART NO.
1 5227600
2 5226700
3 5226300
4 5226200
1
5 5225500
6 1887606
2
7 1598901
34
DESCRIPTION
Standoff, .50 Hex Female
Frame, Window – Outside
Frame, Window – Inside
Gasket, Window – Molded
Window Glass
Screw, ¼-20 x .38 PH, SST
Tape, Double Coated Foam .75 Wide
Product Service 1-800-522-7658
