Connecting devices

Connecting USB Devices
• It may take a few seconds for the monitor to recognize the USB input. Do not disconnect the USB cable or disconnect and
reconnect the USB cable before the monitor recognizes the input.
• Before turning off the power switch of the monitor or shutting down Windows
the USB device from the monitor. Data may be lost or corrupted if the USB device is not disconnected properly.
LAO connection

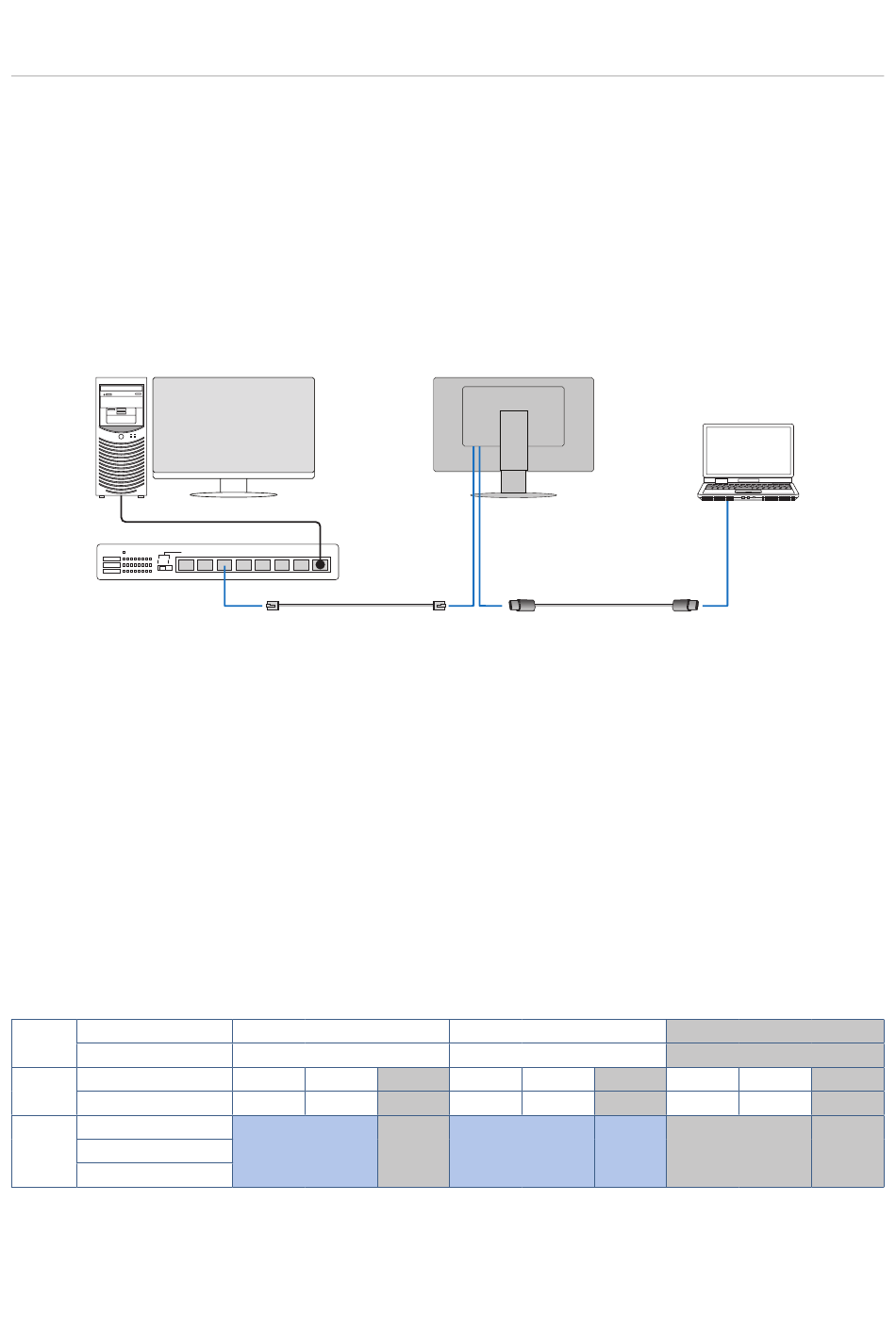

Example of LAN connection:
Router/Server
Ethernet Hub
Preparation Before Use
• Connect the monitor to the computer via a USB Type-C cable when connecting a LAN cable to the monitor (as shown
above).
• The standard driver is installed automatically. Depending on the computer or OS, a manual driver installation may be
required (see page 31).
• Please set the OSD Menu option [USB Functionality] to [On].
• Please set the OSD Menu option [USB LAN] to [On].
• After connecting a LAN cable to the monitor, make sure the LED on the side of the LAN port lights up.
• This monitor supports 1000 Mbps communication. Please make sure to use a compatible LAN cable when connecting to a
1000 Mbps network.
• LAN-to-USB conversion may not work and depends on the computer and its operating system. Any devices connected to the
monitor or computer may cause interference. Make sure to use a compatible USB Type-C cable that transmits LAN signal;
e.g., a power delivery only or USB 2.0 cable will not work.
• If LAN-to-USB conversion does not work, check if the connected computer supports LAN communication over USB. Refer to
the computer's product manual for additional information.
USB Functionality
OSD
USB LAN
Power state
Power
Power LED
Power Delivery
USB HUB
LAN
PSM is an abbreviation of power save mode.
LAN cable
Auto
On
ON PSM OFF
Blue Amber OFF
Enable OFF
English−22
, please turn off the USB function and remove
®
Monitor
USB-C cable
On
On
ON PSM OFF
Blue Amber OFF
Enable Enable
Off
Disable
ON PSM OFF
Blue Amber OFF
Disable OFF
