This manual is designed to make it as easy as possible for you
to assemble, install, operate, and maintain your ceiling fan
Tools Needed for Assembly
• One Phillips head screwdriver
• One stepladder
• Three wire connectors (supplied)
Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 4). If you
feel you do not have enough wiring knowledge or
experience, have your fan installed by a licensed
electrician.
For your convenience, check-off boxes are provided next to each step. As each step is completed, place a check
mark in the box. This will insure that all steps have been completed and will be helpful in finding your place should
you be interrupted.
Do not install or use fan if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any
accessories designated specifically for use with this
product by Fanimation. Substitution of parts or
accessories not designated for use with this product
by Fanimation could result in personal injury or
property damage.

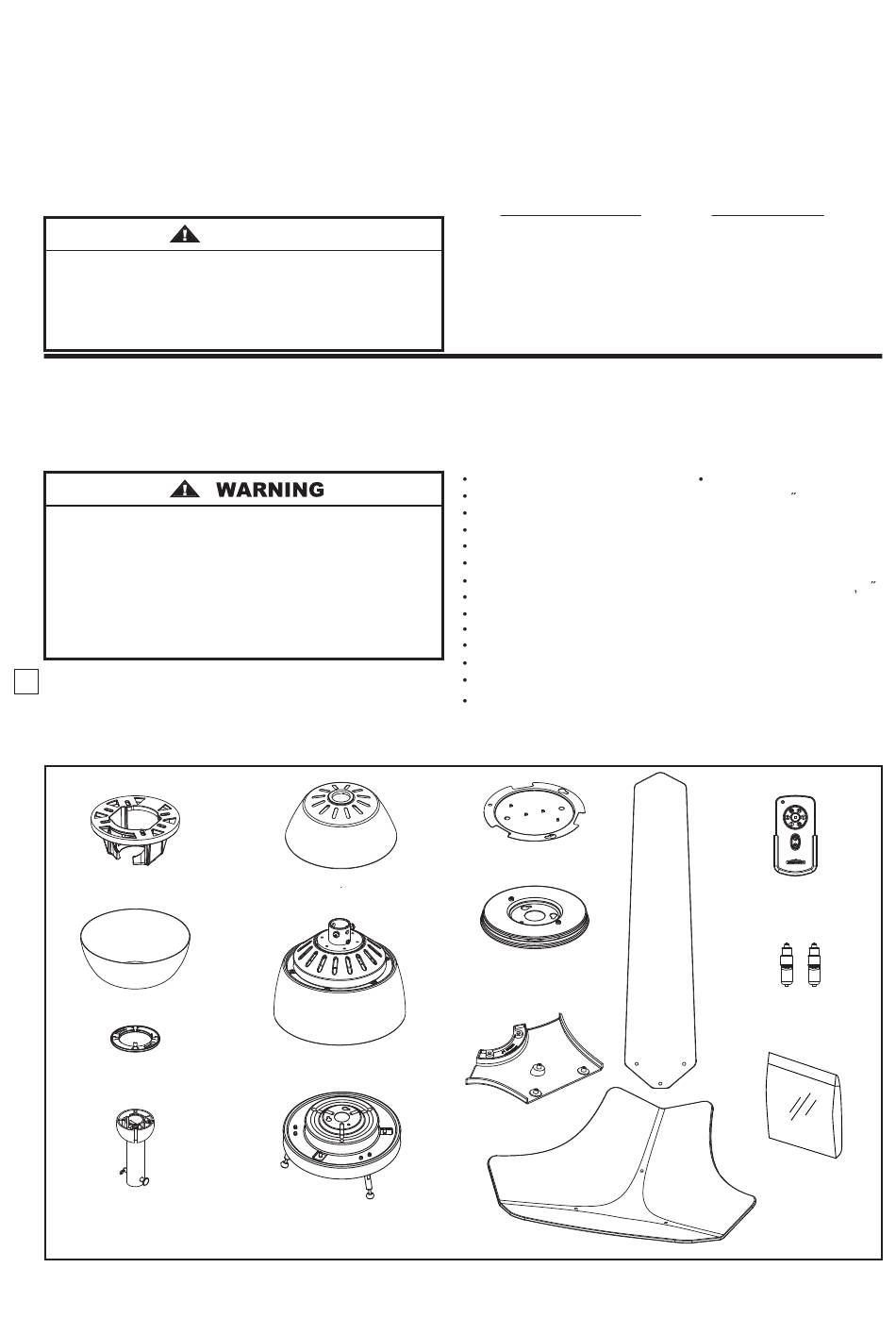

1. Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer to
exploded view illustration. (Figure 1, page 17)
Hanger Bracket
Assembly
Ceiling Canopy
Canopy Screw Cover
Assembly
Downrod/
Hanger Ball Assembly
• One wire stripper
• One 1/4" blade
screwdriver
WARNING

Unpacking Instructions

Motor Coupling Cover
Assembly
Fan Motor Assembly
Light Plate Assembly
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be a
3-conductor (2-wire with ground) of the following size:
Installed Wire Length
Up to 50 ft.
50-100 ft.
NOTE: Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are
missing contact your local retailer.
Fan Motor Assembly
Hanger Bracket Assembly
Downrod/Hanger Ball Assembly
Ceiling Canopy
Canopy Screw Cover Assembly
Motor Coupling Cover Assembly
Light Plate Assembly
Socket Plate Assembly
Switch Housing Assembly
Blade Holder Set
Blade Set
Glass
Light Bulbs (2)
TR29 Hand-Held Remote
Socket Plate Assembly
Switch Housing Assembly
Blade Holder Set
Glass
4
Wire Size A.W.G.
14
12
Hardware bags:
– Seven 1/4 -20 x 16 mm
Oval Head Screws
– Ten Washer Head Screws
#8-32 x 8 mm
– Ten Fiber Washer
– Phillips Screwdriver 4
– Balance Kit
– Four wire connectors
– Safety Cable Kit
TR29 Hand-Held
Remote
Light Bulbs (2)
Blade Set
Hardware bag
