SRC R-HM-V2-18-17-02 Scope Of Delivery And Assembly Instructions

For himalayan 410

Download this manual

R-HM-V2-18-17-02

Himalayan 410 (2017-2022)

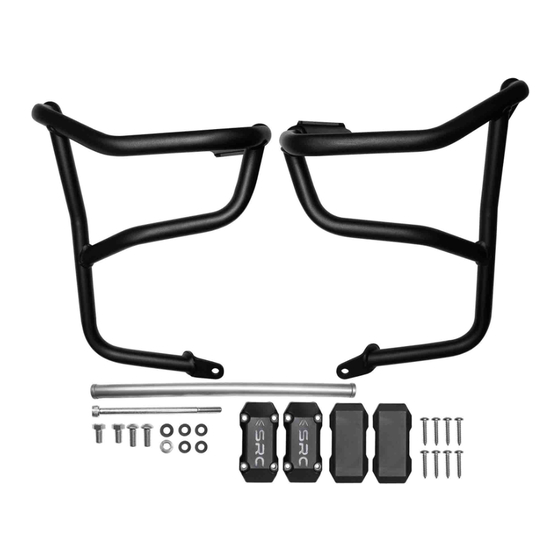

Description

NO.

Crash bar LH

Crash bar RH

Sliders Guards

Bolte screw

Hex bolt gradeb M8x15

Socket button head screw M8x20

Socket head cap screw M10x170

Hex ange nut gradea M10

Washer M8

Washer M10

SRC Design uses Metric System of Measurement and all dimensions in Millimeters

Design and Speci cation are subjected to change

Installation / Parts List / Bill of Material for Mounting

Recommended to use the Torque speci ed in the table

Denotes Usage of Liquid Thread Locker in speci ed Locations

Quantity

Torque*(N-M)

34-36

Remarks**

Use Liquid Thread Locker

Page 1 Hex ange nut gradea M10 Washer M8 Washer M10 SRC Design uses Metric System of Measurement and all dimensions in Millimeters Recommended to use the Torque speci ed in the table Denotes Usage of Liquid Thread Locker in speci ed Locations...
Page 2 By SRC Design and Speci cation are subjected to change...
Page 3 By SRC Design and Speci cation are subjected to change...
Page 4 Remove the original bolts from the motorcycle as shown in the picture above. Bring the tube to the hole that leads. plug o the frame copyright By SRC Design and Speci cation are subjected to change...
Page 5 Mounting lnstructions Place parts(Crash bar LH) as shown in the picture. Then put (nut) and (Washer) as shown in the picture. Place parts(Crash bar RH) as shown in the picture. copyright By SRC Design and Speci cation are subjected to change...
Page 6 Then put (nut) and (Washer) as shown in the picture. Take parts (nut) and (washer) as shown in the picture above. copyright By SRC Design and Speci cation are subjected to change...
Page 7 Vehicle. We have prepared this based on our experience and knowledge, related to the Vehicle, Part and its functional aspects. 3. SRC cannot guarantee the interchangeability of the parts to any other manufacturer’ s accessory part. It is advised to the User, to inspect and ensure the original state of all other Vehicle parts.
