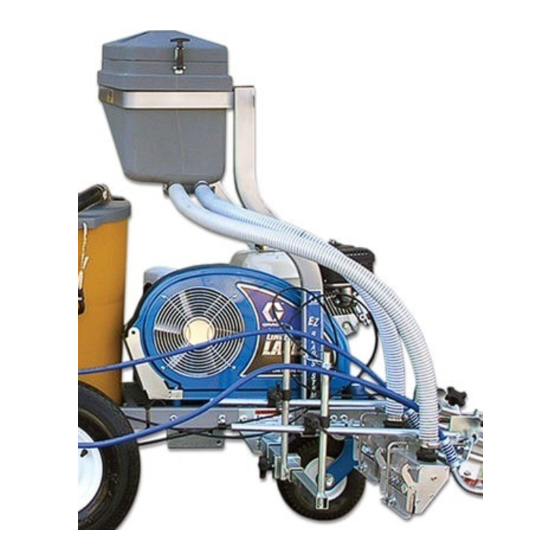

Installation
Kit, Bead Dispenser
LineLazer IV & V, 3900, 5900, 200
130
LL250
HS,
Airless Line Stripers
For application of line striping materials.
Not approved for use in European explosive atmosphere locations.
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
LineLazer IV & V 3900,
5900, 130HS, 200HS, ES1000
Glass bead system with one 6-in.
(152 mm) dispenser
Glass bead system with two 6-in.
(152 mm) dispensers
6-in. (152 mm) dispenser and hose
6-in. (152 mm) wind deflector kit
with aluminum dispenser
6-in. (152 mm) wind deflector with
plastic dispenser
12-in. (305 mm) dispenser and two
hoses
12-in. (305 mm) bead system
12-in. (305 mm) wind deflector with
aluminum dispenser
LL250SPS & LL250DC
6-in. (152 mm) dispenser and hose
6-in. (152 mm) wind deflector kit
with aluminum dispenser
12-in. (305 mm) dispenser and two
hoses
12-in. (305 mm) Bead System
12-in. (305 mm) wind deflector with
aluminum dispenser
Glass bead system with one 6-in.
(152 mm) dispenser
Glass bead system with two 6-in.
(152 mm) dispenser
, LL250
SPS
Model
Series
277065
A
277064
A
277067
A
277066
A
245519
A
245516
A
24N265
A
245520
A
Model
Series
277067
A
277066
A
245516
A
24N267
A
245520
A
24M641
A
24M838
A
LL ES1000
DC,
HS,
311068H
ti6587a
EN
Advertisement
Related Manuals for Graco LineLazer IV
Summary of Contents for Graco LineLazer IV
- Page 1 Installation Kit, Bead Dispenser LineLazer IV & V, 3900, 5900, 200 LL250 , LL250 LL ES1000 311068H Airless Line Stripers For application of line striping materials. Not approved for use in European explosive atmosphere locations. Important Safety Instructions Read all warnings and instructions in this manual.
- Page 2 Bead Dispenser Kit Bead Dispenser Kit Setup 11. Route bead hose down to bead dispenser inlet. NOTE: To avoid bead stoppage in hose during use, make sure bead hose is in an arc curved downward with no kinks or high spots. NOTE: Glass bead system and paint guns can be 12.
- Page 3 Bead Dispenser Kit Bead Dispenser Kit 4,15 11,13 9,10 ti6588b 311068H...
-
Page 4: Operation
Bead Dispenser Kit Dispenser Adjustments Only use dry, clean beads. Any moisture or contamina tion with beads will cause poor bead flow. A window type screen can be used to remove unwanted debris Adjust dispenser plates up or down for desired bead before filling glass bead hopper. - Page 5 Bead Dispenser Kit Gun Orientation for 8 - 12 in. Stripe Operation ti6591a For 8 - 10 in. stripe, adjust line width, loosen set screws at (A) and loosen gun adjuster (B). Tilt guns in for desired line width and 8 - 10 in.
- Page 6 Bead Dispenser Kit - Parts List (LineLazer IV & V 3900, 5900, 130HS, 200HS, ES1000) Bead Dispenser Kit - Parts List (LineLazer IV & V 3900, 5900, 130HS, 200HS, ES1000) Ref. Part Description 277065 KIT, bead system 15F581 . LEG, hopper, RH (painted) 115087 .
- Page 7 Bead Hopper Kit - Parts List (LL250SPS, LL250DC) Bead Hopper Kit - Parts List (LL250 LL250 SPS, ti19261a Ref. Part Description Ref. Part Description 111194 SCREW, cap flange HD 16N607 FRAME, bead mount, LL250, paint 101566 NUT, lock 287680 RING, hopper, frame 100731 WASHER 241437 HOPPER, beads 194666 LABEL, Linelazer, EZ bead system...
- Page 8 6-Inch Dispenser Assembly - Parts List 6-Inch Dispenser Assembly - Parts List ti6593a Ref. Part Description Qty. Ref. Part Description Qty. 198376 . CAP, end, bead dispenser 277067 DISPENSER ASSY KIT, beads (see 102598 . SCREW, cap, sch item 8, Bead Dispenser Kit Parts List) 115483 .
- Page 9 12-Inch Dispenser Assembly - Parts List 12-Inch Dispenser Assembly - Parts List ti2066a Ref. Part Description Qty. Ref. Part Description Qty. 117576 . SCREW, machine, hex washer hd 245516 DISPENSER ASSY KIT, beads (see 198376 . SCREW, door, hex item 8, Bead Dispenser Kit Parts List) 102598 .
-
Page 10: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
