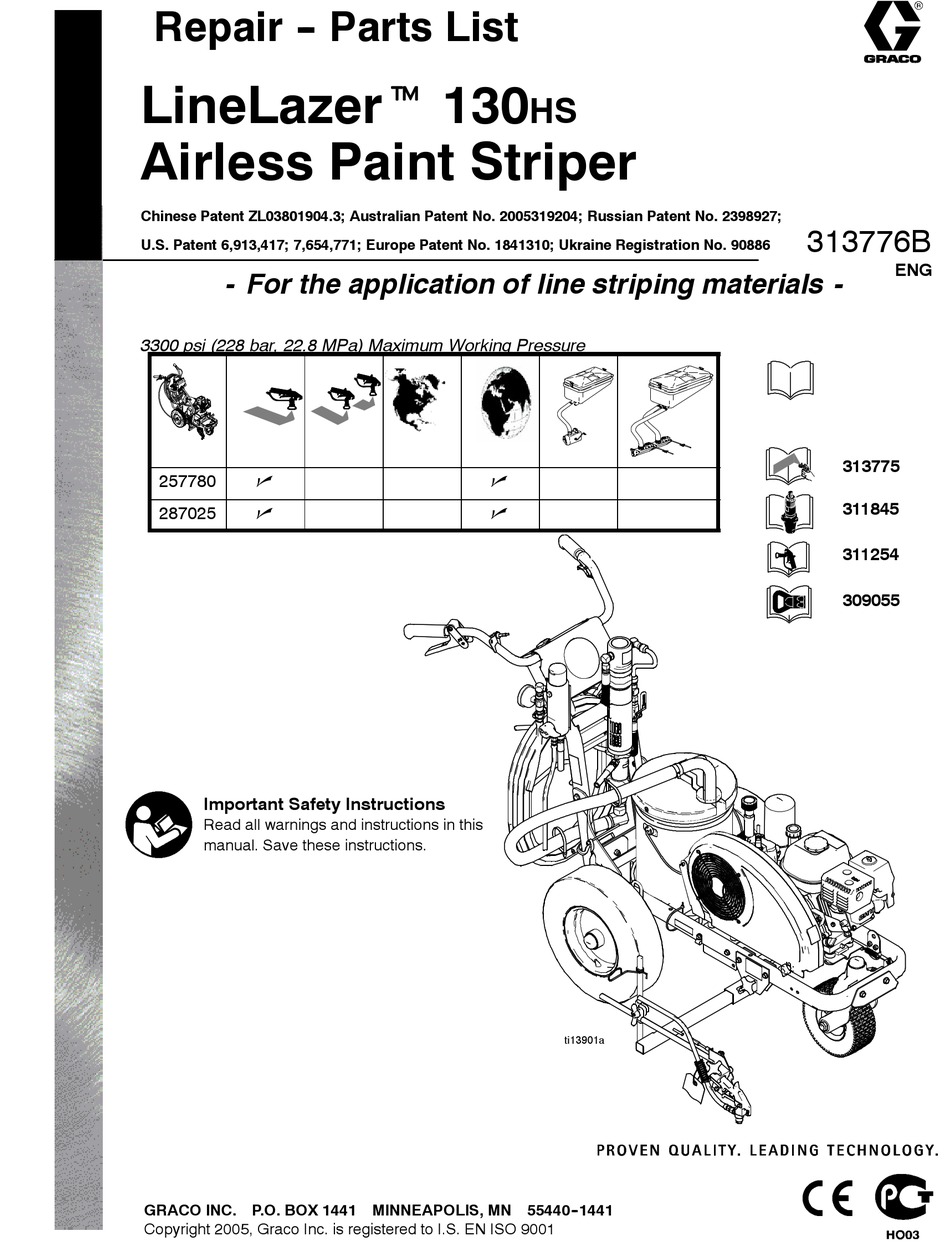

Repair - - Parts List

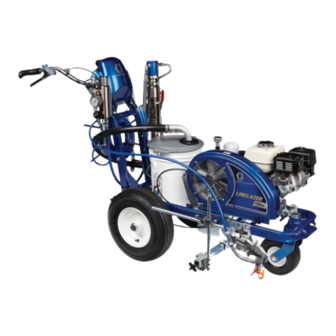

LineLazert 130
Airless Paint Striper
Chinese Patent ZL03801904.3; Australian Patent No. 2005319204; Russian Patent No. 2398927;
U.S. Patent 6,913,417; 7,654,771; Europe Patent No. 1841310; Ukraine Registration No. 90886
- For the application of line striping materials -
3300 psi (228 bar, 22.8 MPa) Maximum Working Pressure
257780
n
287025
n
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440- -1441
Copyright 2005, Graco Inc. is registered to I.S. EN ISO 9001
HS
n
n
ti13901a
313776B
ENG
313775
311845
311254
309055
