NetVanta 1531/1534/1544 Series

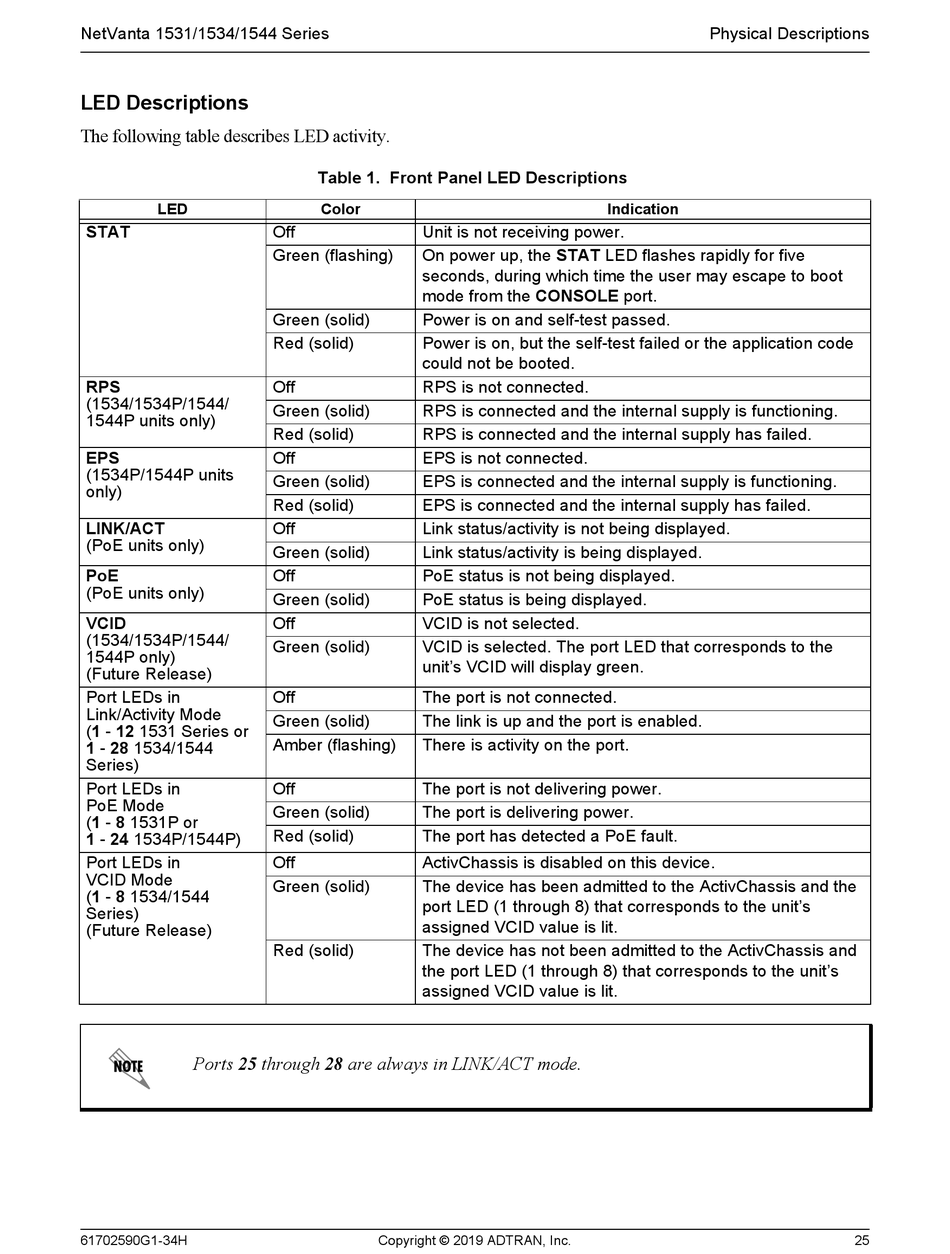

LED Descriptions
The following table describes LED activity.
LED
STAT
RPS
(1534/1534P/1544/
1544P units only)
EPS
(1534P/1544P units
only)
LINK/ACT
(PoE units only)
PoE
(PoE units only)
VCID
(1534/1534P/1544/
1544P only)
(Future Release)
Port LEDs in
Link/Activity Mode
(1 - 12 1531 Series or
1 - 28 1534/1544
Series)
Port LEDs in
PoE Mode
(1 - 8 1531P or
1 - 24 1534P/1544P)
Port LEDs in
VCID Mode
(1 - 8 1534/1544
Series)
(Future Release)
Ports 25 through 28 are always in LINK/ACT mode.
61702590G1-34H
Table 1. Front Panel LED Descriptions
Color
Off
Unit is not receiving power.
Green (flashing)
On power up, the STAT LED flashes rapidly for five
seconds, during which time the user may escape to boot
mode from the CONSOLE port.
Green (solid)
Power is on and self-test passed.
Red (solid)
Power is on, but the self-test failed or the application code
could not be booted.
Off
RPS is not connected.
Green (solid)
RPS is connected and the internal supply is functioning.
Red (solid)
RPS is connected and the internal supply has failed.
Off
EPS is not connected.
Green (solid)
EPS is connected and the internal supply is functioning.
Red (solid)
EPS is connected and the internal supply has failed.
Off
Link status/activity is not being displayed.
Green (solid)
Link status/activity is being displayed.
Off
PoE status is not being displayed.
Green (solid)
PoE status is being displayed.
Off
VCID is not selected.
Green (solid)
VCID is selected. The port LED that corresponds to the
unit's VCID will display green.
Off
The port is not connected.
Green (solid)
The link is up and the port is enabled.
Amber (flashing)
There is activity on the port.
Off
The port is not delivering power.
Green (solid)
The port is delivering power.
Red (solid)
The port has detected a PoE fault.
Off
ActivChassis is disabled on this device.
Green (solid)
The device has been admitted to the ActivChassis and the
port LED (1 through 8) that corresponds to the unit's
assigned VCID value is lit.
Red (solid)
The device has not been admitted to the ActivChassis and
the port LED (1 through 8) that corresponds to the unit's
assigned VCID value is lit.
Copyright © 2019 ADTRAN, Inc.
Physical Descriptions
Indication
25
