QuickBridge.11 (2454-R, 5054-R & 5054-R-LR)
High-Capacity Wireless Backhaul
Proxim Wireless offers extremely reliable,
secure and easily-deployed solutions for
interconnecting corporate and
telecommunications networks.
This portfolio includes:
• Gigalink ® – Alternative to fiber, up to a
Gigabit speed
• Lynx.GX ® – Cellular voice and data
backhaul, up to DS3 interface
• Tsunami.GX - Carrier-class IP
®
Ethernet bridge for voice and data
backhaul for service providers and
enterprise applications
• TeraBridge ™ – Ethernet backhaul or
traditional telecommunications converged
voice and data networks
• QuickBridge ® – Complete "hop-in-a-
box" Ethernet bridge for campus and
small business networks
Proxim Wireless is a global provider in scalable
broadband wireless networking. From Wi-Fi to
wireless Gigabit Ethernet – our WLAN, mesh,
point-to-multipoint and point-to-point products
are available through our extensive global
channel network.
Cost Effective Solution for Quick Return on Investment
The Tsunami QuickBridge.11 family operates in the unlicensed frequency spectrums of 2.4 GHz
and 5 GHz (5.15, 5.25, 5.47, and 5.725) and comes complete with a set of accessories to ease
outdoor installations. As the most cost-effective point-to-point solution from Proxim, any
deployment will enjoy a quick return on investment.
• Suitable for the service provider, municipal and education markets
• Certified for deployments in the Americas, Europe, Asia, and Australia
• Designed with the same high quality and reliability that are synonymous with all
Proxim Tsunami wireless bridges
• High Power version for extended range (5054-R-LR-US, FCC only)
Complete "Hop-In-A-Box" Allows Unprecedented Ease of Installation
Tsunami QuickBridge.11 bundles are the easiest-to-install family of broadband wireless bridges
on the market. Requiring no training or wireless experience, they can be installed within hours.
Each solution includes everything needed to set up a link right out of the box.

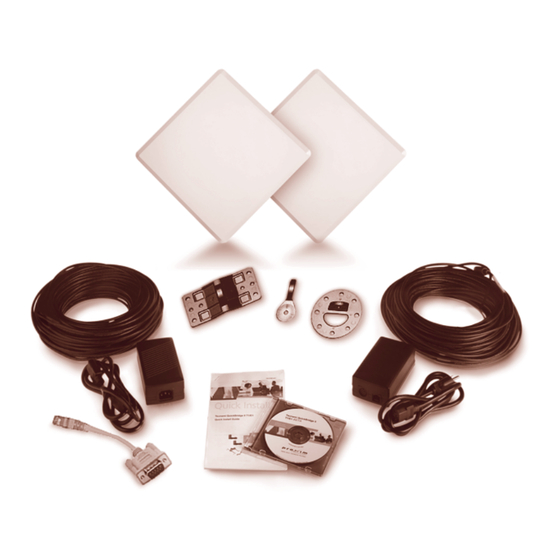

• Hop-in-a-box solution includes two radios with integrated antennas, outdoor-rated
Ethernet cables, mounting hardware, power injectors and documentation
• Pre-configured software defaults and easy to use graphical user interface eliminate
guess work during installation
• Audible tones ensure antennas are properly aligned
Industry Leading Co-Location Capability
Expand your own service coverage area or co-locate a service within another service provider's existing
area – it's never been easier. All Tsunami QuickBridge.11 models support 5/ 10/ 20 MHz channels
designed to mitigate radio interference in unlicensed frequency spectrums.
• 5 MHz channel increases the number of non-overlapping channels from 20 to 80+ in the
5 GHz and from 3 to 13 in the 2.4 GHz spectrums
• With the high number of non-overlapping channels, products can be used as high-bandwidth
CPE (customer premise equipment) within a limited coverage area
• Less likely to offend neighboring wireless systems
Synergy with Tsunami MP.11 Point-to-Multipoint Systems
Maximum synergy is realized when deployed in conjunction with Tsunami MP.11 point-to-
multipoint wireless systems. With the same proven platforms, both products are designed to
deliver an equal experience.
• Using the integrated antennas also used in the MP.11, the QuickBridge.11 produces the
same radio characteristics
• Same ruggedized enclosures allow the use of common accessories, resulting in reduced
inventory and preservation of investments
• Identical CLI and graphical software interfaces reduce training costs, and accelerate
installation and troubleshooting
Advanced Security Protects Privacy
QuickBridge.11 implements tiered security layers for the most secure outdoor communication in
the unlicensed frequency spectrum.
• Proxim's Wireless Outdoor Routing Protocol (WORP) prevents snooping common to Wi-Fi systems
• Advanced encryption protects over-the-air transmission via AES
• Radio mutual authentication eliminates unauthorized use of the system by rogue Subscriber
Units and man-in-the middle attacks
• Password protection of all remote management methods
®
Tsunami QuickBridge.11 Series
Point-to-Point Wireless Bridge Bundle
