3. Properly seal the conduit connections to maintain the weatherproofed integrity of the
actuator enclosure.
Note: The square-head conduit plug is weatherproofed but may eventually degrade. If
the square-head conduit plug degrades, replace it with a metal plug.

Wiring Diagrams

Shown below are the typical wiring diagrams for their respective applications

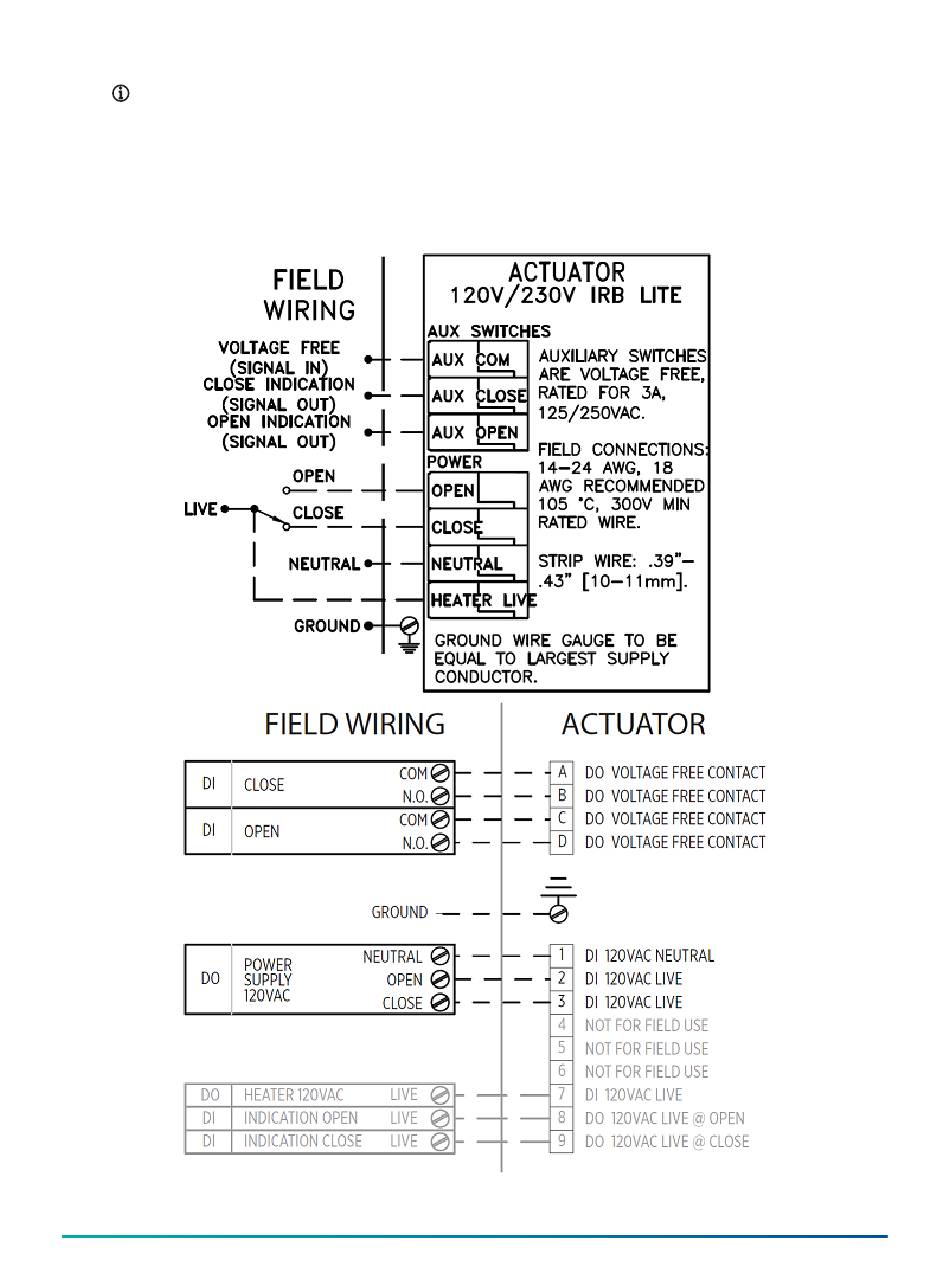

Figure 1: 120V on/off actuators
VA-9070 Series Electric Rotary Actuators for Two-Position and Modulating Service Technical Bulletin 3
