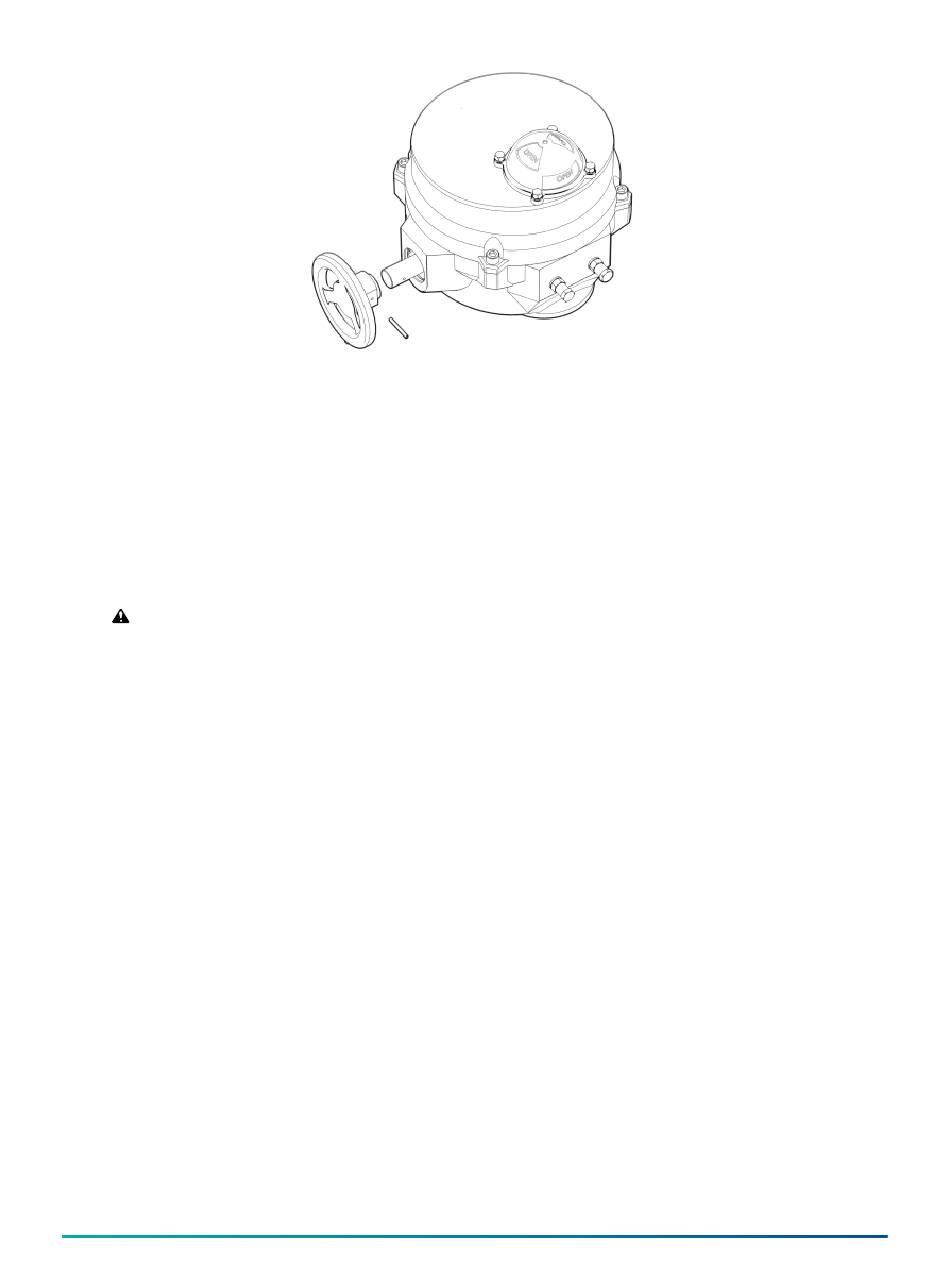

Figure 13: S70 with handwheel removed
16. To replace the handwheel:
a. Engage the override shaft.
b. Slide the handwheel onto the override shaft and align mounting holes.
c. Use a punch to fit a replacement slot spring pin.
i. Actuator Size E03, E06, E08 slot spring pin: 070316-71900529
ii. Actuator Size E12, E20, E30 slot spring pin: 070424-71900534
iii. Actuator Size 050 - 180 slot spring pin: 070428-71900534
d. Disengage the handwheel.
CAUTION: Further disassembly of the unit requires special tools and procedures, and
thus will not be covered in this manual.
