Positioning The Media Sensors

Your printer is equipped with upper and lower media sensors that

detect the top-of-form position on media with label length indicators

(black marks, gaps, notches, or holes). The media sensors also

detect Paper Out conditions.

Use the handles on the lower media sensor to horizontally position

it in the center of the installed media. Slide the upper media sensor,

located in the slot under the printhead cover (see figure on

page 23), directly over the lower sensor.

Running Auto Calibrate

IMPORTANT

Since manufacturing differences in media and ribbon can

decrease the printer's TOF (top-of-form) sensing reliability,

you must run an Auto Calibrate to provide optimum sensor

threshold values for the installed media and ribbon.

1. Set the printer power switch to | (On). (For the location of the

2. Press the

NOTE: For a complete description of the QUICK SETUP menu,

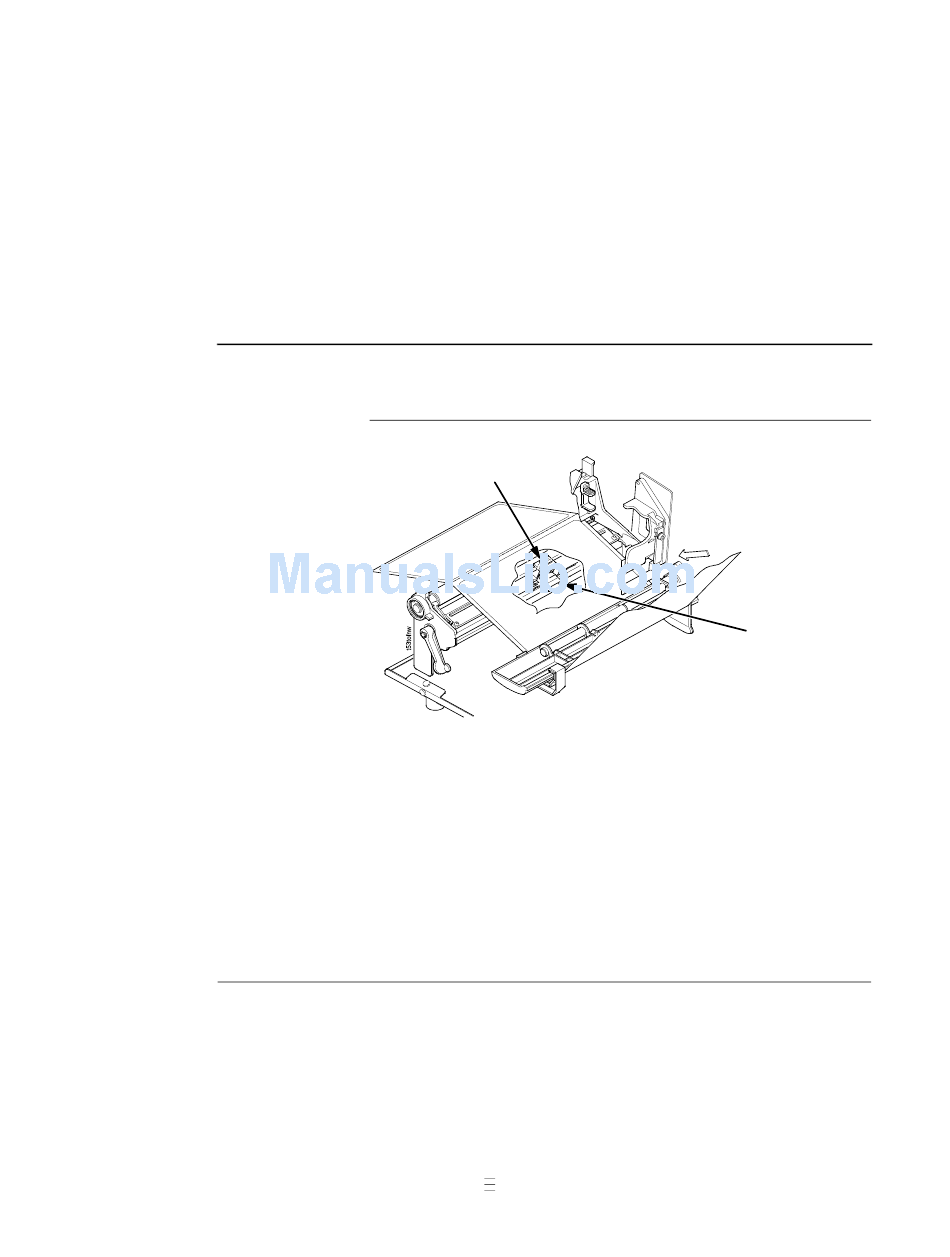

Lower

Media Sensor

power switch and various panel keys, refer to "Controls And

Indicators" on page 9.)

. .

key to enter the QUICK SETUP menu.

see page 27.

Lower

Media Sensor

Handle (2)
