Loading Media And Ribbon
3. Slide the media width guide close to the outside end of the
media damper.
4. Slide the supplied starter media roll onto and towards the back
of the media hanger.
5. Place the media hanger guide under the media hanger and
against the lower part of the label core at a 45 degree angle
(as shown). This position provides the required tension for a
new label roll and the desired drag for a partial label roll.
16

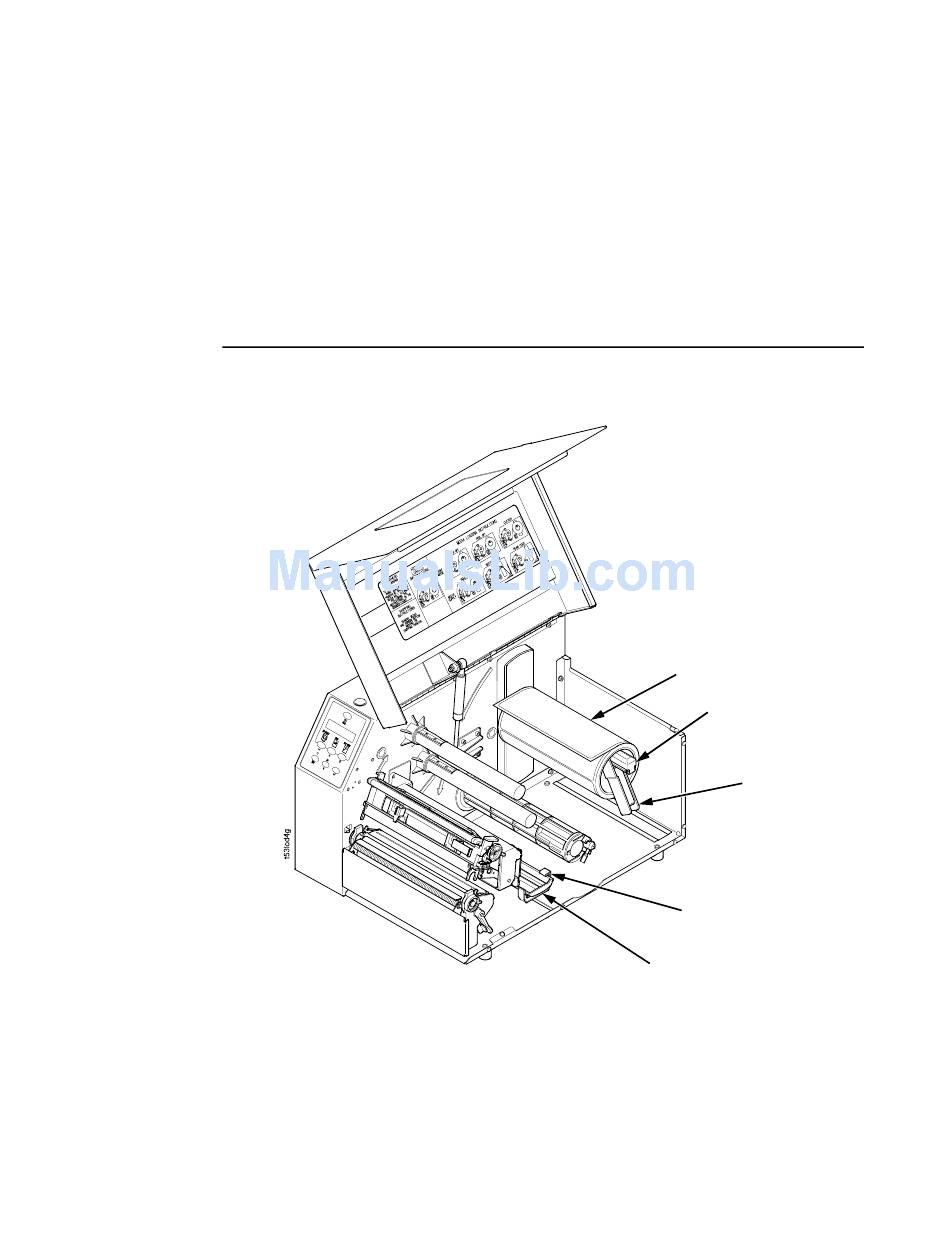

Media Roll
Media Hanger
Media Hanger
Guide
Media Width
Guide
Media Damper
