Loading Media And Ribbon
Media
Guard
Media Sensor
Handle
7. Verify that the left edge of the media is against the fixed guide
on the bottom of the media damper.
8. Push the media width guide in until it is flush with the outer
edge of the media.
9. Check the horizontal position of the lower media sensor
(located under the media guard) and the upper media sensor
(shown on page 23). (See "Positioning The Media Sensors" on
page 24.)
18

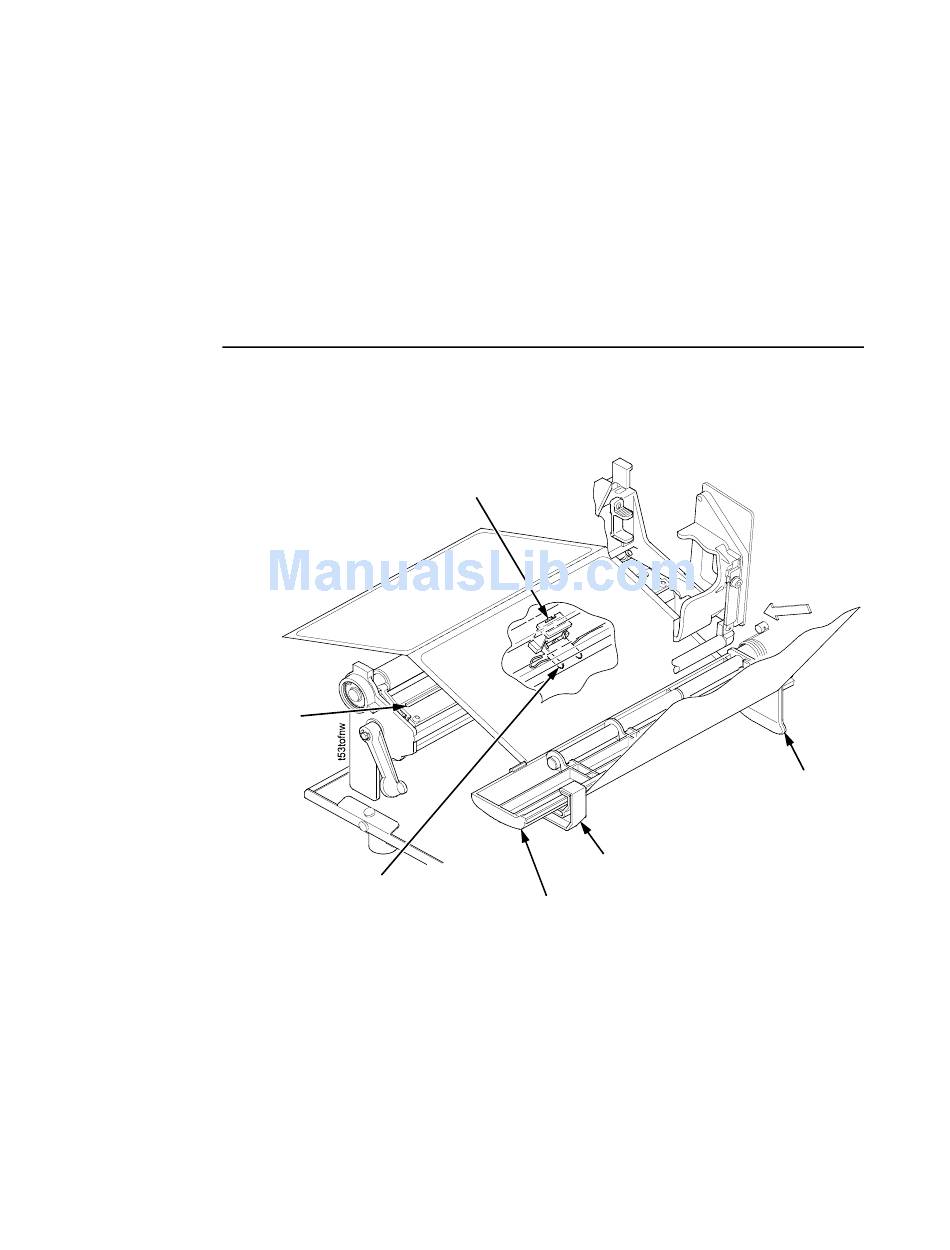

Lower
Media Sensor
Media
Width Guide
Media
Damper
Fixed Guide
