Echotrac E20
Height
Length
Depth
Weight
System Block Diagram
High-frequen cy
transducer
Low-frequen cy
transducer
Dual high and low-freq.
transducer
*
This Quick Reference Guide is not intended as a substitute for the Operator's Manual (provided on a USB key).
Version 6
E20
83.0mm
300.0mm
221.0mm
5.7kg
Echosounder
1
TX1
TX2
1
2
Document Number QG19389 / Part Number 1013740
Echotrac E20
Singlebeam Echosounder - Quick Reference Guide*

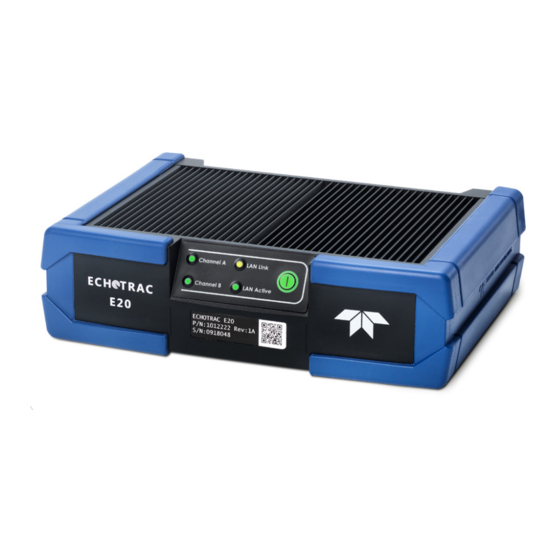

Echotrac E20 Singlebeam Echosounder
The portable Echotrac E20 single/dual-channel
echosounder for surveys in any environment:
Frequency: 10-250kHz
Ping rate: Up to 50Hz
Range: from 0.5-6000m depending on
frequency and product variant
Power requirements: 10-30VDC, max. 50W
Operating temperature: -20°C to +55°C
Standard Cables
E20 to laptop/PC (5m)
Bend radius
Bend radius
Configuration examples:
E20
1: Separate high and low transducers.
2: A high/low dual-transducer with a single cable.
LAN
COM1
COM2
COM3
SYNC
60mm (minimum)
Power cable (5m)
60mm (minimum)
CFE
laptop/PC
GPS/time
Motion/heading
Serial depth data
Trigger in/out
22/01/2021
