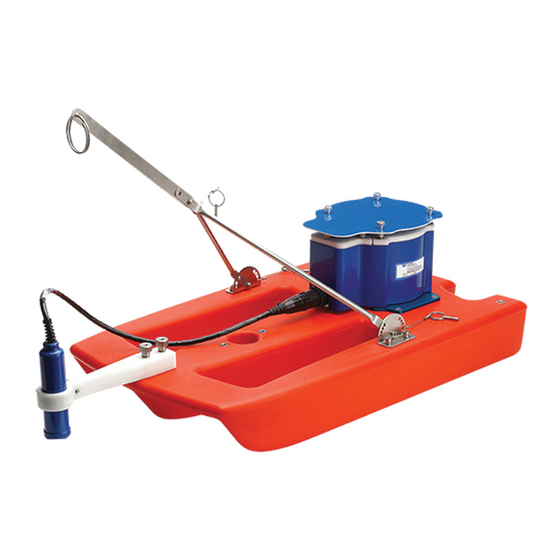

Teledyne Everywhereyoulook STREAMPRO Deployment Manual
  1. Manuals
  2. Brands
  3. Teledyne Manuals
  4. Marine Equipment
  5. Everywhereyoulook STREAMPRO
  6. Deployment manual

Teledyne Everywhereyoulook STREAMPRO Deployment Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

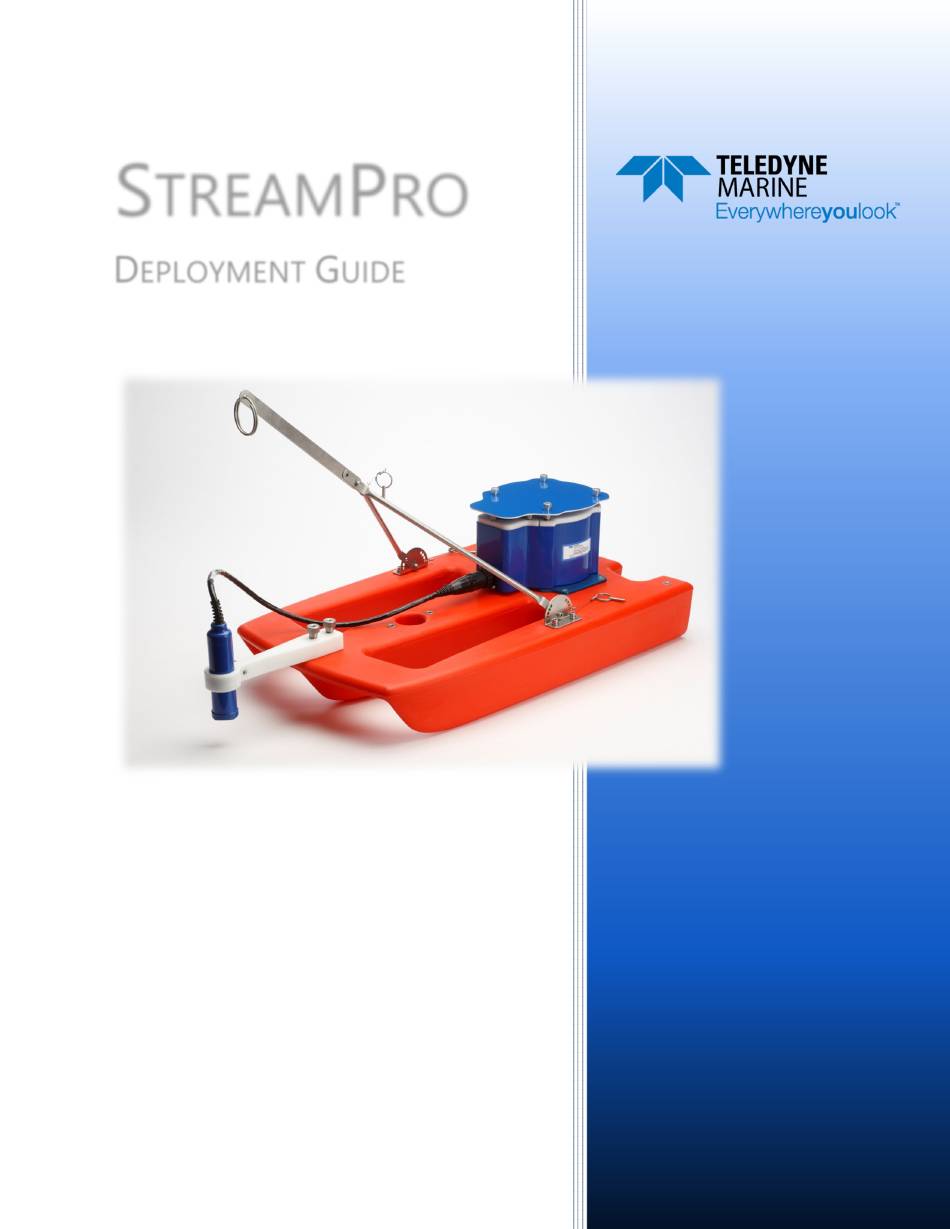

S
TREAM
D
EPLOYMENT
Information included herein is controlled by the Export Administration Regulations (EAR) and may
require an export license, license exception or other approval from the appropriate U.S. Government
agency before being exported from the United States or provided to any foreign person. Diversion
contrary to U.S. law is prohibited.
P
RO
G
UIDE
P/N 95B-6129-00 (August 2021)
© 2021 Teledyne RD Instruments, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Everywhereyoulook STREAMPRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne Everywhereyoulook STREAMPRO

Summary of Contents for Teledyne Everywhereyoulook STREAMPRO

  • Page 1 UIDE P/N 95B-6129-00 (August 2021) © 2021 Teledyne RD Instruments, Inc. All rights reserved. Information included herein is controlled by the Export Administration Regulations (EAR) and may require an export license, license exception or other approval from the appropriate U.S. Government agency before being exported from the United States or provided to any foreign person.

  • Page 2: Table Of Contents

    (this can take up to 24 hours). Once you have secured an account, use the Teledyne Marine software portal to access this data with your unique username and password.

  • Page 3: Preparing The Streampro

    StreamPro Deployment Guide P/N 95B-6129-00 (August 2021) Preparing the StreamPro R E P A R I N G T H E T R E A M R O I N C L U D E S T H E F O L L O W I N G S T E P S Checking you have all the StreamPro parts Installing the documentation and software CDs Assembling the float...
  • Page 4 P/N 95B-6129-00 (August 2021) StreamPro Deployment Guide Part Number Name Description SD1000U USB Bluetooth device USB Bluetooth device SD1000U and Sena DAT5-G01R antenna. DAT5-G01R 75BK6003-00 Spare parts kit See below for a list of parts included. For instructions on using the USB Bluetooth device, see the WinRiver II Software User’s Guide and the instructions included with the device on the Bluetooth driver CD.
  • Page 5 StreamPro Deployment Guide P/N 95B-6129-00 (August 2021) Assembling the Float To attach the boom to the float: Loosen the clamp thumbscrew on the boom. Feed the transducer cable up through the bottom of the clamp. Attach the transducer cable to the electronics housing connector.
  • Page 6 Check that you have all the StreamPro If you are missing parts, contact TRDI parts. support or call +1 rdifs@teledyne.com (858) 842-2700. Check that the software and If the CD browser does not automatically documentation is installed. start, double-click on the launch.exe file.

  • Page 7: Connecting To The Streampro

    StreamPro Deployment Guide P/N 95B-6129-00 (August 2021) Connecting to the StreamPro O N N E C T I N G T O T H E T R E A M R O I N C L U D E S T H E F O L L O W I N G S T E P S Installing a battery pack Connecting to the system using WinRiver II What type power does my system need?
  • Page 8 P/N 95B-6129-00 (August 2021) StreamPro Deployment Guide Some Bluetooth devices may ask for a passkey, PIN code, Pair code, Pairing code, Security code, or Bluetooth code. In all cases, the code is 0 or 0000 (zero, not the letter o). The pin code is 0 for systems shipped prior to August 2017 and 0000 for systems shipped after August 2017.
  • Page 9 In this example, the Comm. Port is set to Com Port 40. 10. Click the Test Port button. The StreamPro banner appears. >break StreamPro ADCP Teledyne RD Instruments (c) 2015 All rights reserved. Firmware Version: 31.xx > 11. Click the Close button to exit the Test Port Dialog.
  • Page 10 P/N 95B-6129-00 (August 2021) StreamPro Deployment Guide Quick Review Connect to the StreamPro For instruction on using the SD1000U USB Bluetooth using a Bluetooth device, see Chapter 2 in the WinRiver II Software User's connection Guide and the instructions and Bluetooth CD included with the device.

  • Page 11: Using Gps

    • Mounting hardware *The SXBlue II GPS system may be purchased from Teledyne RD Instruments or other sources. Remove two screws on opposing corners as shown from the battery pack on the SXBlue II GPS unit. Newer SXBlue II battery packs have a curved back and require spacers to attach it to the sunshield.
  • Page 12 P/N 95B-6129-00 (August 2021) StreamPro Deployment Guide Remove the original magnetic antenna base and attach the non-magnetic base using the four Phillips screws. Magnetic materials will adversely affect the StreamPro compass and substantially reduce the accuracy of data referenced to the GPS. Do not use the original magnetic base! Install the transducer on the float.
  • Page 13 StreamPro Deployment Guide P/N 95B-6129-00 (August 2021) To enable GPS communications with WinRiver II: Select the Configure menu, Peripherals. Click the Add button. Choose GPS, and then click Next. Choose the COM port that the GPS is connected to. Click Next. Enter the GPS communication Baud Rate, Parity, and Stop Bit settings.

  • Page 14: Easurement

    P/N 95B-6129-00 (August 2021) StreamPro Deployment Guide Prepare for Discharge Measurement R E P A R I N G F O R I S C H A R G E E A S U R E M E N T I N C L U D E S T H E F O L L O W I N G S T E P S I I M U N N I N G T H E...
  • Page 15 StreamPro Deployment Guide P/N 95B-6129-00 (August 2021) Measurement Wizard The Hydrologist selects to start a new measurement within the WinRiver II application. Once the Hydrol- ogist enters all of the background information on the site where the measurement will be performed, the software will then automatically detect whether an ADCP is connected and which ADCP product it is.
  • Page 16 P/N 95B-6129-00 (August 2021) StreamPro Deployment Guide Moving Bed Test/Set the Clock At this point, the StreamPro should be tested and the compass cal- ibration completed; once those steps are complete, it is ready to start the moving bed test. The StreamPro is placed in the water, and the Hydrologist enters the command to start it pinging using the Acquire menu, and click Start Pinging or use the shortcut key F4.

  • Page 17: Locating The Start & Stop

    StreamPro Deployment Guide P/N 95B-6129-00 (August 2021) Locating the Start & Stop Positions O C A T I N G T H E S T A R T A N D S T O P P O S I T I O N S I N C L U D E S T H E F O L L O W I N G S T E P S Locating the Start and Stop Positions Locating the Start and Stop Positions...

  • Page 18: Discharge Measurements

    P/N 95B-6129-00 (August 2021) StreamPro Deployment Guide Discharge Measurements Before starting a discharge measurement with a StreamPro ADCP using WinRiver II, the Hydrologist has: Prepared the StreamPro, Boat or RC boat, and any external sensors being used 2. Configured the computer, communications link(s), and WinRiver II software for data collec- tion using the StreamPro and any external sensors 3.
  • Page 19 StreamPro Deployment Guide P/N 95B-6129-00 (August 2021) Step by Step Data Collection 1. Open or create a measurement file. 2. Press F4 to start pinging. 3. At the start/stop position, press F5 to start the transect. 4. Enter the starting distance from the shore. 5.
  • Page 20 P/N 95B-6129-00 (August 2021) StreamPro Deployment Guide Data Collections Tips • Locate the point where a solid two-depth cell measurement can be measured on both banks. Stake or otherwise mark these locations. They represent the starting and stopping points for the tran- sects.
  • Page 21 StreamPro Deployment Guide P/N 95B-6129-00 (August 2021) Glossary of Common Terms Actors: • Field hydrologist/Technician • Data Analyst Expert (DAE ) Data Collection Terminology: • Left/Right Bank – The Left bank is defined as the bank that would be on your left side if you were looking downstream.

  • Page 22: Conclusion

    Q-View license. PDDecoder Library in C language The Teledyne Marine PDDecoder library is an open source library written in C language to decode the PD0 data formats that are commonly output by Teledyne Marine/Teledyne RD Instruments ADCPs. The definition and details of the PD0 format can be found in the StreamPro ADCP Guide, Commands and Output Data Format chapter.
