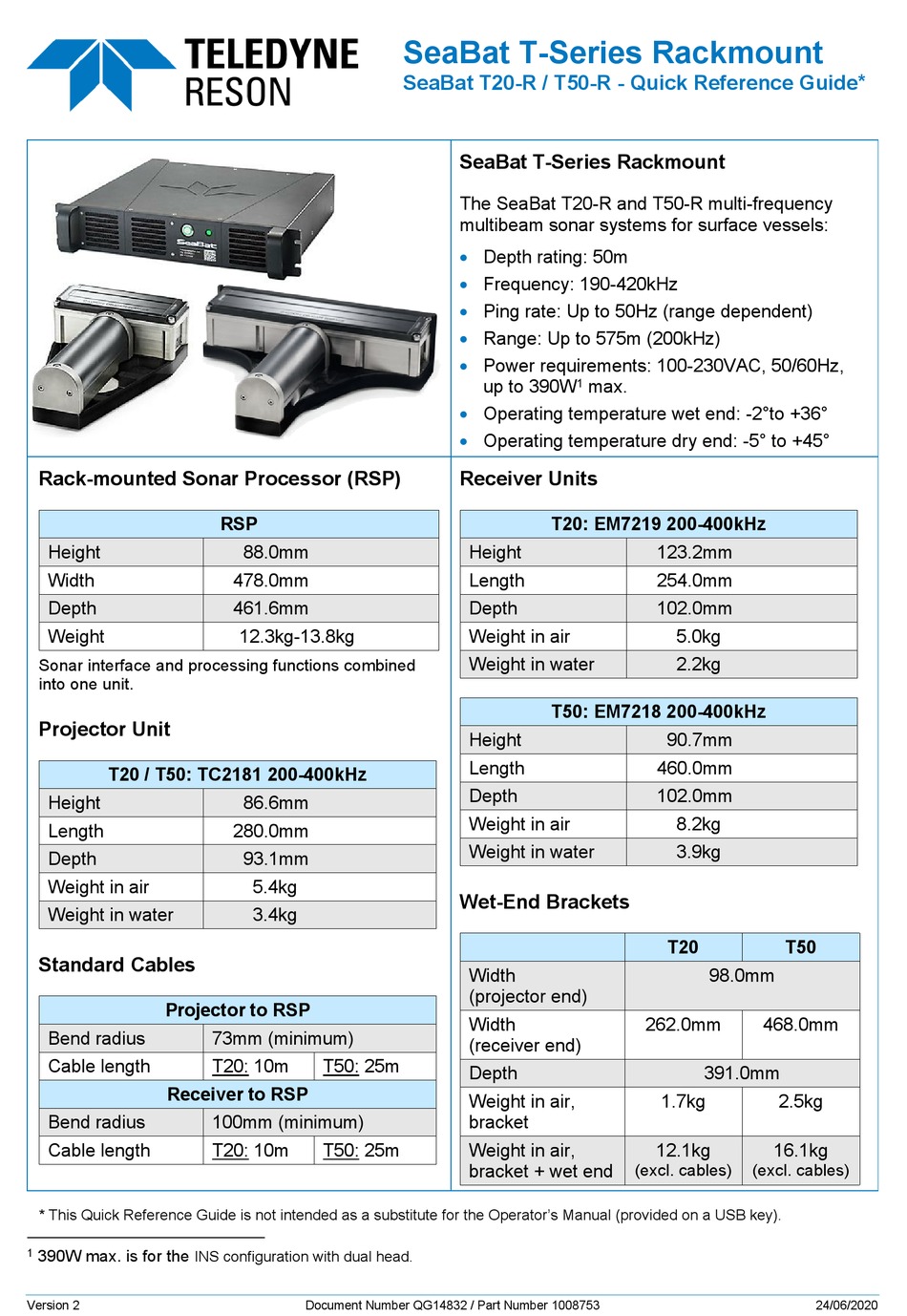

Teledyne SeaBat T Series Quick Reference Manual

Rack-mounted Sonar Processor (RSP)
Height
Width
Depth
Weight
Sonar interface and processing functions combined
into one unit.
Projector Unit
T20 / T50: TC2181 200-400kHz
Height
Length
Depth
Weight in air
Weight in water
Standard Cables
Projector to RSP
Bend radius
Cable length
Receiver to RSP
Bend radius
Cable length
* This Quick Reference Guide is not intended as a substitute for the Operator's Manual (provided on a USB key).
1 390W max. is for the
INS configuration with dual head.
Version 2
RSP
88.0mm
478.0mm
461.6mm
12.3kg-13.8kg
86.6mm
280.0mm
93.1mm
5.4kg
3.4kg
73mm (minimum)
T20: 10m T50: 25m
100mm (minimum)
T20: 10m T50: 25m
Document Number QG14832 / Part Number 1008753

SeaBat T-Series Rackmount

SeaBat T20-R / T50-R - Quick Reference Guide *
SeaBat T-Series Rackmount
The SeaBat T20-R and T50-R multi-frequency
multibeam sonar systems for surface vessels:

Depth rating: 50m

Frequency: 190-420kHz

Ping rate: Up to 50Hz (range dependent)

Range: Up to 575m (200kHz)

Power requirements: 100-230VAC, 50/60Hz,
up to 390W

Operating temperature wet end: -2°to +36°

Operating temperature dry end: -5° to +45°
Receiver Units
T20: EM7219 200-400kHz
Height
Length
Depth
Weight in air
Weight in water
T50: EM7218 200-400kHz
Height
Length
Depth
Weight in air
Weight in water
Wet-End Brackets
Width
(projector end)
Width
(receiver end)
Depth
Weight in air,
bracket
Weight in air,
bracket + wet end
max.
1
123.2mm
254.0mm
102.0mm
5.0kg
2.2kg
90.7mm
460.0mm
102.0mm
8.2kg
3.9kg
T20
98.0mm
262.0mm
391.0mm
1.7kg
12.1kg
(excl. cables)
T50
468.0mm
2.5kg
16.1kg
(excl. cables)
24/06/2020
