616, 626, 636 & 646
Keypads
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Esprit+ 616 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paradox Esprit+ 616

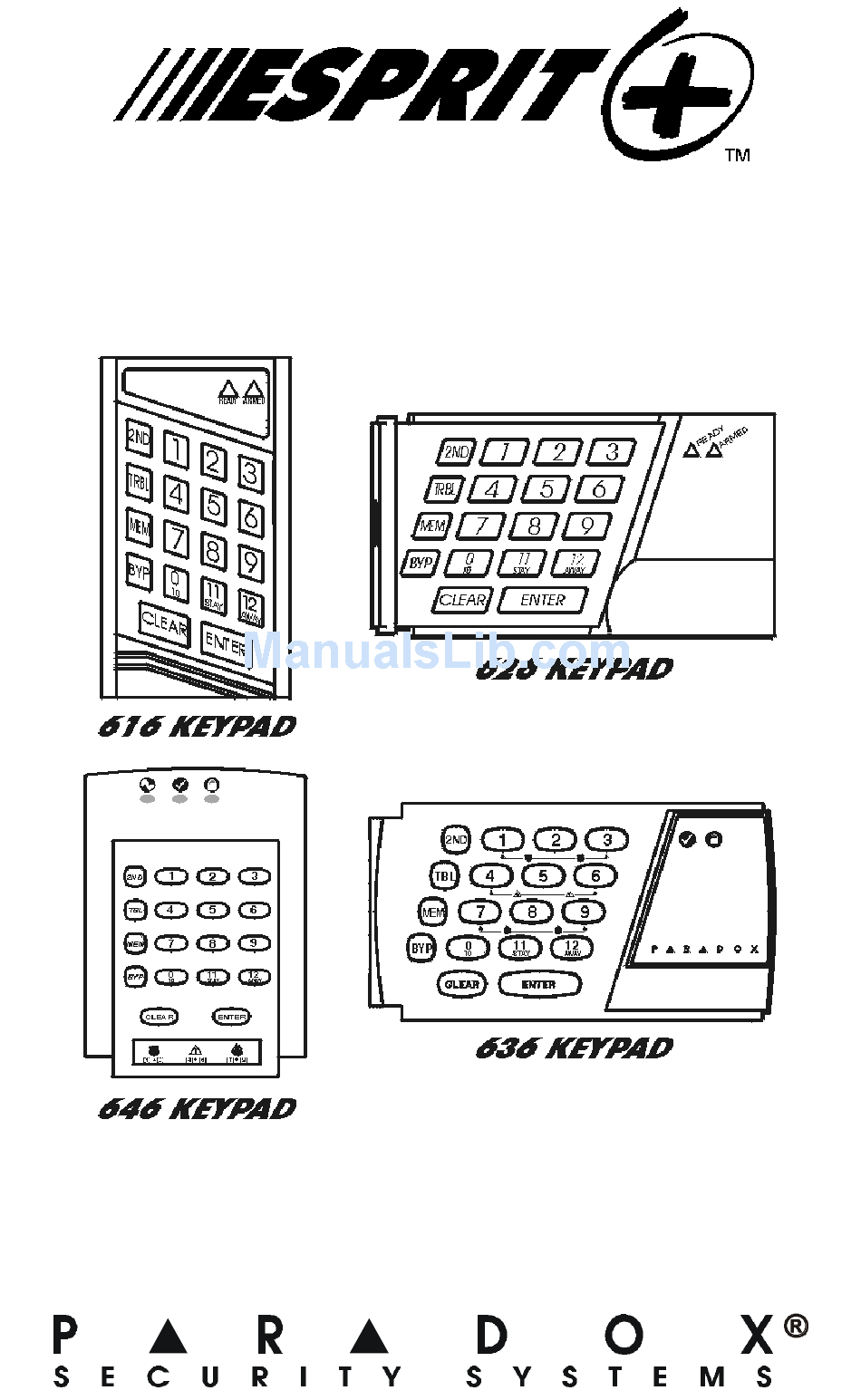

  • Page 1 616, 626, 636 & 646 Keypads User’s Manual...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.0 BASIC OPERATION ....2 2.0 ACCESS CODES ......4 3.0 ARMING & DISARMING ....6 4.0 PANIC ZONES ......13 5.0 KEY ACCESS PROGRAMMING . 14 6.0 ADDITIONAL FEATURES ..15 7.0 TROUBLE DISPLAY ....16 8.0 FIRE ALARM OPERATION ..
  • Page 4: Basic Operation

    1.0 BASIC OPERATION The Esprit 616, 626, 636 and 646 keypads all function in the same way, but display the visual feedback differently. 1.1 V ISUAL EEDBACK The numbers, symbols, lights and keys on the keypad communicate the status of your system as described below.
  • Page 5 Figure 2: Overview of the 636 & 646 Keypads Esprit Keypads 3...
  • Page 6: Access Codes

    1.2 Z ONES The Esprit control panel can support up to 24 zones. When zone opened breached corresponding key will light up on the keypad. For example, if zone 5 were to open, the 5 key will light up on the keypad. The Esprit’s keypads will show the status of the zones through keys 1 to 12.
  • Page 7 Note: Avoid programming simple obvious access codes, such as your telephone number, address or codes such as 1234. To create or modify access codes, follow the steps indicated in section 2.2. The master code and user codes are identified by a 2 digit “code number”. 2.2 C REATING ODES...
  • Page 8: Arming & Disarming

    2.3 D URESS ODES The last user code (user 48) can be programmed to report a “duress code”. If you are forced to arm or disarm your system under threat, a duress code can be entered to produce a silent alarm at the monitoring station.
  • Page 9 3.2 R EGULAR SYSTEM ARMING How do I Regular Arm the system? 1) The green “ ’ light must be ON in order to arm READY the system. 2) Enter your User Code. After the Confirmation beep, the “ready” light and the ] and [ ] buttons will begin to flash.
  • Page 10 3.4.2 Key [ /11] - Stay arming: STAY Please refer to section 3.3 on page 7 for an explanation of stay arming. Press the [ /11] key STAY steadily for 2 seconds. This will automatically “Stay” arm the system. 3.5 D OUBLE RMING After Stay Arming and during the exit delay, press...
  • Page 11 3.7 K EYSWITCH RMING A keyswitch can be used to arm your system. If an alarm is generated in your system, or a zone that has not been defined as a Stay zone is opened after panel arming, the system can only be disarmed from a keypad (if keyswitch is defined as “Stay”...
  • Page 12 “ ” light (for all zones to close), use Force READY “Away” arming. Open zones will not be protected, but will be armed as soon as they are closed. How do I Force Arm the system? 1) Press the [ ] button and then enter your User AWAY Code.
  • Page 13 How do I Disarm System B? 1) Press the [ ] key. AWAY 2) Enter your Access Code. The [ ] key will flash. The “ready” light will also AWAY begin to flash and the exit timer will begin to count- down.
  • Page 14 3.15 D ISARMING How do I Disarm the Security System? 1) Enter through the designated entry/exit door. The keypad will beep and begin the entry delay timer. 2) Enter your Access Code. The “armed” light will go off and the keypad will stop beeping.
  • Page 15: Panic Zones

    3.17 V IEWING LARM EMORY The memory light [ ] on your keypad will illuminate if any alarm situations take place while your system is armed. After disarming the system, pressing once on the [ ] key brings up the zones that were open during the last alarm period.
  • Page 16: Key Access Programming

    4.3 “P 3” - F ANIC LARM Pressing keys [7] and [9] simultaneously for 2 sec. will generate a “panic 3" or a “fire alarm”. 5.0 KEY ACCESS PROGRAMMING Several control panel features can be programmed quickly on the keypad. The Security Company or installer may ask you to perform some of these functions.
  • Page 17: Additional Features

    Feature Description Test Report: If programmed by your installer, this fea- ture will send a test report code to the Security Company. Call Espload via telephone: TRBL This initiates communication to the cen- tral monitoring station computer using the Espload software. Answer Espload Software: AWAY This feature will force the control panel to...
  • Page 18: Trouble Display

    6.2 C HIME ZONES A chime zone will emit a rapid intermittent beep tone when it is opened. To turn on the “chime zone” feature, press on the selected zone key for three seconds until the intermittent chime beep is heard. If you have more than one keypad in your system, “chime”...
  • Page 19 memory. Only the troubles that are relevant to you are listed below. If a trouble appears and it is not listed below, call your Security Company to come service your system. Trouble conditions will remain in memory. Pressing on the [2 ] key displays current trouble conditions.
  • Page 20: Fire Alarm Operation

    How do I reprogram the Timer? 1) Press the [ ] key. ENTER 2) Enter the [ ] or [ 01]. MASTER CODE USER CODE 3) Press the [ ] key. 4) Enter the new time using the 24-hour clock (ex: 8:30PM = 20:30).
  • Page 21 Note: IF A FIRE CONDITION EXISTS, FOLLOW YOUR EVACUATION PLAN IMMEDIATELY! If there is no fire condition, contact your monitoring company without delay to avoid an unnecessary response. Fire Safety in the Home Reasonable fire safety can be achieved by following a three point program: 1.Minimizing fire hazards (i.e.
  • Page 22: System Maintenance

    • Drills should be held so that all family members know what to do. • Each person should plan for the possibility that an exit out of the bedroom window may be necessary. An exit out of the residence that does not require the opening of a bedroom door is essential.
  • Page 23: System Checklist

    Your installer can advise you of the best way to test your particular system. 9.1.2 Fire Alarm Testing CAUTION: Do not use open flame or burning materials to test your fire detection devices. Contact your alarm installer to discuss safe methods to test your system.
  • Page 24 Zone # and System Zone # and System Description Description Entry Delay 1 is __________ seconds. Entry Delay 2 is __________ seconds. Exit Delay is __________ seconds. 22 User’s Manual...
  • Page 25 10.3 U CCESS User Name System User Name System Esprit Keypads 23...
  • Page 26 User Name System User Name System Warranty The Seller warrants its products to be free from defects in materials and workmanship under normal use for a period of one year (except as indicated otherwise). Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
