ACCESS CODES

To program Access Codes:
1) Press
2) Enter your [
]
MASTER CODE
3) Enter three-digit section
(see Table)
4) Enter new 4- or 6-digit [
CODE
5) Press
to exit
Section:
Codes:
[001]
System Master Code
[002]
Master Code 1
[003]
Master Code 2
[004] to [047] User codes 004 to 047
[048]
Duress or User code 048
To delete Access Codes:
1) Repeat steps 1 to 3
2)
Press
for each digit in the code
3) Press
to exit
Web site: www.paradox.ca
Security Company:
PRINTED IN CANADA 02/00 1689EQ-00

ARMING AND DISARMING

To arm
when leaving:
To Regular Arm
(Arms entire Area)
Enter your [
ACCESS CODE
?
One-touch Button,
if enabled:
To Force Arm
(Arms Area without waiting for all
]
zones to close)
+ Enter your [
ACCESS CODE
?
One-touch Button,
if enabled:
To arm
when staying:
To Stay Arm
(Arms Area's perimeter)
+ Enter your [
ACCESS CODE
?
One-touch Button,
if enabled:
To Instant Arm
(Stay Arms Area, but if any armed zones are
breached, it will instantly cause an alarm)
Stay Arm + press
during the Exit Delay.
To Disarm: enter your [
*
If needed, press button(s)
corresponding to desired partition(s).
ARM
STAY
*
]
AC
STATUS
*
]
*
]
= AC power
ON
= Power failure
OFF
STATUS LIGHT
Green:
for 3 seconds
= Zones closed
ON
= Zone(s) open
OFF
= Exit Delay
FLASH
]
ACCESS CODE
Lights
Lights
Light
Light
1689
AC LIGHT
(for Stay & Instant Arming)
STAY 1
STAY 2
ON
(for Regular & Force Arming)
ARM 1
ARM 2
ON
FLASH

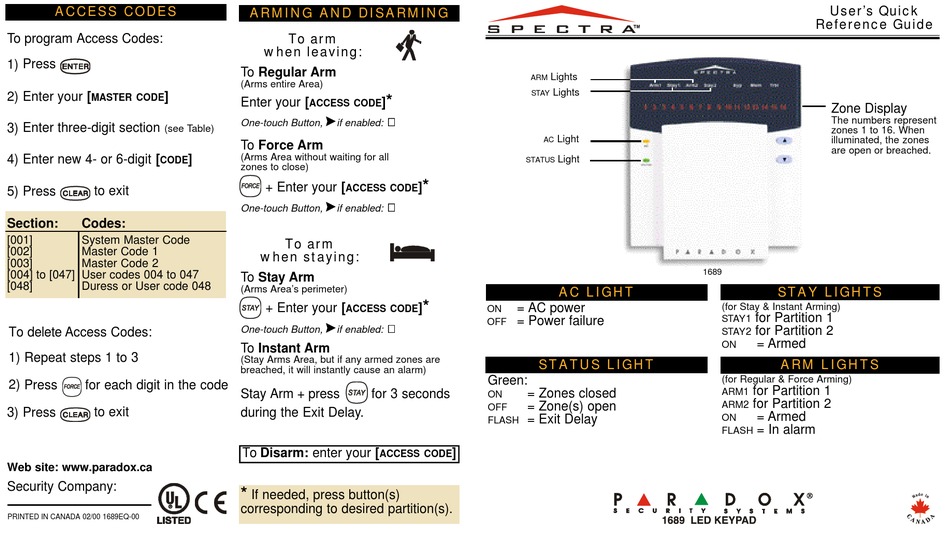

User's Quick
Reference Guide
Zone Display
The numbers represent
zones 1 to 16. When
illuminated, the zones
are open or breached.
STAY LIGHTS
for Partition 1
for Partition 2
= Armed
ARM LIGHTS
for Partition 1
for Partition 2
= Armed
= In alarm
