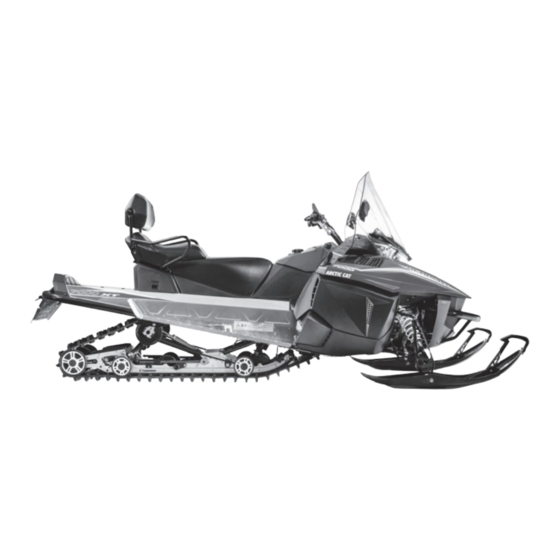

- Page 1 2 2 017 OPERATOR’S MANUAL OPERATOR’S MANUAL LYNX LYNX /BEARCAT /BEARCAT ® ® PANTERA PANTERA 7000 XT 7000 XT ® ® ™ ™ www.arcticcat.com...
- Page 2 Arctic Cat Snowmobile dealer. No transportation charges, rental charges, or inconvenience costs will be paid by Arctic Cat. The warranty is validated upon examination of said parts by Arctic Cat or an authorized Arctic Cat Snowmobile dealer. Arctic Cat reserves the right to inspect such parts at its factory for final determination if warranty should apply.
-
Page 3: Table Of Contents
Table of Contents Limited Warranty .....Inside Front Cover Lubrication..........27-31 Foreword ............1 Gear Case (2000)..........27 Declaration of Conformity........2 Chain Case (3000) .......... 28 Transmission (7000) ........29 Snowmobile Safety Rules ........3 Front Suspension (2000) ......... 30 General Information ........4-20 Rear Suspension .......... - Page 4 SELF AND OTHERS. Parts and Accessories When in need of replacement parts, oil, or accessories for your Arctic Cat Snowmo- bile, be sure to only use GENUINE ARCTIC CAT PARTS, OIL, AND ACCESSO- RIES. Only genuine Arctic Cat parts, oil, and accessories are engineered to meet the standards and requirements of your Arctic Cat Snowmobile.
-
Page 5: Foreword
Drive with caution, observe all state and local regulations, and respect the rights of others. ISMA members like Arctic Cat do their part to improve trails, sponsor events, and generally support the sport of snowmobiling. As a mem- ber of the National Snowmobile Foundation, Arctic Cat Inc. -
Page 6: Declaration Of Conformity
Declaration of Conformity Application of council directives: EMC Directive 2004/108/EC Issued by European Commission. EC Machinery Directive 2006/42/EC Type of Equipment: Snowmobile Brand Name: Arctic Cat Model Numbers: S2017BCDFCOSL S2017BCDFCUSL S2017BCDWTOSL S2017BCDWTUSL S2017BCTLTEBL S2017BCTLTOSL S2017BCTLTUSL S2017BCUWGOSO S2017BCUWGUSO S2017BCUWTEBL S2017BCUWTOSL S2017BCUWTOSO... -
Page 7: Snowmobile Safety Rules
Snowmobile Safety Rules... -
Page 8: General Information
General Information Control Locations Shown are the control locations. Bearcat 7000 XT XM314A Pantera 7000 XT LTD 0749-189 Bearcat 7000 XT GS 0749-190... -
Page 9: Snowmobile Identification
When using ethanol blended gasoline, it is the complete engine must be replaced, not necessary to add a gasoline antifreeze ask the dealer to notify Arctic Cat for since ethanol will prevent the accumula- correct registration information. tion of moisture in the fuel system. -
Page 10: Engine Break-In
The recommended oil to use in the oil- CAUTION injection system is Arctic Cat Formula 50 Injection Oil (p/n 5639-475 - qt) or (p/n Never mix oil and gasoline in the 5639-476 - gal.). This oil is specially for- snowmobile gas tank. -
Page 11: Drive Belt Break-In
NOTE: After 500 miles of opera- tion, the engine oil must be changed and the oil filter replaced. If any engine trouble should occur during the engine break-in period, immedi- ately have a Arctic Cat dealer check FZ003C the snowmobile. RPM/MPH (kph) Drive Belt Break-In... - Page 12 Arctic Cat Snowmobile dealer for service. If not under war- level; however, it is highly recommended ranty, this service is at the discretion...
- Page 13 E. Service Icon 4. Speedometer/Tachometer Display - Indicates approximate vehicle speed On electric start models, the icon should in MPH or KM/H when speedome- illuminate each time the key is turned to ter function is selected, RPM when RUN or START, and it should go out tachometer function is selected.
- Page 14 The indicator and LOW TEMP display will remedy the problem, take the snowmo- cease to flash when the engine reaches bile to an authorized Arctic Cat Snow- proper operating temperature. mobile dealer for service. If not under warranty, this service is at the discretion If the coolant temperature rises too far and expense of the snowmobile owner.
-
Page 15: Diagnostic Codes
With the clock mode selected by pressing engine does not start, take the snowmo- the Upper Right Button, press and hold the bile to an authorized Arctic Cat Snowmo- Upper Right Button to set the clock. The bile dealer. If not under warranty, this... - Page 16 3000/7000 Code Trouble P0522 Engine oil pressure sensor circuit Code Trouble P0016 Crankshaft Position - P0523 Engine oil pressure sensor circuit Camshaft Position Correlation high P0030 O2 Heater Control Circuit P0562 System Relay Voltage Low P0031 O2 Heater Control Circuit Low P0563 System Relay Voltage High P0032...
-
Page 17: Handlebar Tilt
2. Adjust the handlebar to operator’s desired position, tighten the cap Handlebar Tilt screws evenly to 25 ft-lb, and check 3000/7000 steering for maximum right/left turning capabilities. 1. Loosen the four lock nuts securing the handlebar caps and block to the NOTE: Do not rotate the handlebar steering post. -
Page 18: Cooling System (3000/7000)
Protect skin and cloth- take the snowmobile to an authorized ing when handling a battery. When ser- Arctic Cat Snowmobile dealer for ser- vicing a battery in an enclosed space, vice. If not under warranty, this service is keep the area well-ventilated. -
Page 19: Drive Clutch And Driven Clutch
If a fuel delivery problem is bare metal. suspected, take the snowmobile to an autho- rized Arctic Cat Snowmobile dealer. If not NOTE: Have the battery and elec- under warranty, this service is at the discre- trical system checked prior to oper- tion and expense of the snowmobile owner. -
Page 20: Shock Absorbers
Always use a shielded safety stand whenever performing When installing studs on a single-ply any maintenance or adjustments. track, it is important to use Arctic Cat- approved studs (proper head diame- ! WARNING ter). If approved studs (proper head... - Page 21 Shifting Into Reverse 3. Upon pressing the reverse switch button, the reverse function will 7000 make up to three attempts to engage into reverse. If the function is not CAUTION completed after the third attempt, Shift only when the vehicle and the the engine will shut down.
-
Page 22: Adjustable/Movable Backrest
2. On 2000 models, the reverse func- tion will cancel if operated in reverse longer than 45 seconds. Whenever the reverse function has been canceled, the engine must be run in the forward mode for a mini- mum of 60 seconds at 2000 RPM before the reverse function can be used again. - Page 23 742-593B 743-329A To install the seat, use the following pro- 2. Lift on the back of the rear seat and cedure: move it rearward to remove it from the mount. 1. Place the seat into position on the tunnel. To install the rear seat, use the following procedure: 2.
-
Page 24: Removable Light Bar (Bearcat Xt Gs)
Pantera 7000 XT LTD NOTE: Make sure to unplug the accessory plug for the heated hand grips and seat before removing the seat. To remove the rear seat, lift up the lever on the rear of the seat and hold it in that position;... -
Page 25: Operating Instructions
The brake fluid level must be visible too lean. To start a warm engine, in the sight glass. Add Arctic Cat however, the throttle control lever approved brake fluid as necessary. may have to be compressed slightly. -
Page 26: Braking
9. On 3000/7000 models, a “cold NOTE: On the 3000/7000 models drive-away” function is incorporated when a cold engine is being started, within the engine. This function is DO NOT COMPRESS THE THROT- active until the engine reaches oper- TLE CONTROL LEVER. -
Page 27: Emergency Stopping
! WARNING pads just start to heat up; then allow Use only Arctic Cat approved DOT 4 them to thoroughly cool down. This brake fluid. Never substitute or mix process stabilizes the pad material and different types or grades of brake extends the life of the pads. -
Page 28: Engine Heater (Pantera 7000 Xt Ltd/Bearcat 7000 Gs)
If the engine now starts and stops when the throttle lever is released, take the snowmobile to an autho- rized Arctic Cat Snowmobile dealer for service. If not under warranty, this service is at the discretion and expense of the snowmobile owner. -
Page 29: Varying Altitude Operation
Arctic Cat Snowmobile dealer carburetor switch may be the prob- for service as soon as possible. If lem. Take the snowmobile to an not under warranty, this service is at... - Page 30 Always consult the altitude take the snowmobile to an autho- decal. rized Arctic Cat Snowmobile dealer for this service. This service is at the CAUTION discretion and expense of the snow- mobile owner...
-
Page 31: Lubrication
Arctic Cat rec- its left side far enough to allow the ommends that the flushing and replacing lubricant to drain from the gear case be done prior to off-season storage. -
Page 32: Chain Case (3000)
20. Pour 444 ml (15 fl oz) of Arctic Cat amount of Arctic Cat Synthetic Synthetic ACT Gear Case Fluid into Chain Lube (p/n 6639-539) through the check/fill hole;... -
Page 33: Transmission (7000)
It is very important that the transmission making sure the track is free to rotate. be flushed and the lubricant be replaced after each season of use. Arctic Cat rec- ! WARNING ommends that the flushing and replacing be done prior to off-season storage. -
Page 34: Front Suspension (2000)
11. Pour Arctic Cat Synthetic ACT Heavy Duty 3-Speed Transmission Fluid (p/n 7639-080) into the fill hole until fluid is level with the bottom of the check level hole;... -
Page 35: Maintenance
Maintenance Periodic Maintenance Checklist Item Interval Page Remarks Brake System Daily Check for binding, leakage, and proper operation; lever firmness, travel, caliper, disc, and pads Cooling System - Liquid Daily 13,36 Check for leakage, damage, obstructions, coolant level Oil System Daily —... -
Page 36: Fuel System
DO NOT OPERATE THE and secure with new clamps. SNOWMOBILE. Take the snowmobile to an authorized Arctic Cat Snowmobile dealer for inspection and adjustment or repair. If not under warranty, this service is at the discretion and expense of the snowmobile owner. -
Page 37: Checking Engine Oil Level
XM303 pickup valve is suspected, take the snow- 1. Remove the fuel filter from the fuel mobile to an authorized Arctic Cat Snow- filter bracket. mobile dealer for this service. If not under warranty, this service is at the discretion 2. -
Page 38: Changing Engine Oil/Filter
Changing Engine Oil/ Filter 3000 ! WARNING Engine oil is extremely hot immedi- ately after the engine is turned off. Burning could occur if oil contacts skin or clothing. SNO-525A NOTE: Recycle or properly dis- 4. If step 1-3 was followed and the oil pose of the used engine oil. - Page 39 NOTE: If the oil and engine are not at operating temperature, the oil level may read too low. Always make sure the engine is at operating tem- perature before checking the oil. 11. Install the access plate and torx-head screws beneath the snowmobile;...
-
Page 40: Coolant Level
6. Remove the cap screw on the bottom NOTE: The warning icon should of the oil tank and let the oil drain into go out within five seconds. If it does, the drain pan. proceed to step 10. If the warning icon does not illuminate, take the snowmobile to an authorized Arctic Cat Snowmobile dealer for service. -
Page 41: Adjusting/Calibrating Carburetors (2000)
If the owner does not feel expense of the snowmobile owner. qualified, take the snowmobile to an authorized Arctic Cat Snowmobile dealer for this service. This service is at the discretion and expense of the snowmobile owner. - Page 42 Adjusting Choke Cable 3. Slide the insulators away from the adjusters; then loosen the jam nut (External) securing each throttle cable adjuster. 1. Be sure the ignition switch key is in Rotate each adjuster clockwise until the OFF position and the brake lever each piston valve bottoms in the pis- lock is set.
- Page 43 9. At this point, there must be 0.75-1.5 4. With the snowmobile on a shielded mm (0.030-0.060 in.) of cable free- safety stand, start the engine, release play gap in the throttle lever. If there the brake lever lock, and thoroughly is no cable free-play in the throttle warm up.
-
Page 44: Spark Plugs
A main jet which is too small will that this service be done by an authorized cause severe engine damage. Engine Arctic Cat Snowmobile dealer only. damage caused by lean jetting WILL NOT BE covered by Arctic Cat Inc. CAUTION warranty policy. 1. Loosen each... -
Page 45: Valve Clearance
Arctic Cat inder head cover. Snowmobile dealer for this service. This service is at the discretion and 2. - Page 46 1. Remove the negative battery cable ! WARNING and ground wire; then remove the positive cable. An overheated battery could explode causing severe injury death. ! WARNING Always monitor charging times and charge rates carefully. Stop charging Avoid spillage and contact with skin, if the battery becomes very warm to eyes, and clothing.
-
Page 47: Fuses
Bearcat/Pantera XT LTD CAUTION Before installing the battery, make sure the ignition switch is in the OFF position. 8. Secure the red positive cable to the positive terminal on the battery using a cap screw, lock washer, and a flat washer. Tighten securely. 9. -
Page 48: Brake System
If not under warranty, this ser- sight glass, remove the reservoir cover vice is at the discretion and expense of and add Arctic Cat approved DOT 4 the snowmobile owner. brake fluid until the fluid is at the rec- ommended level. - Page 49 ! WARNING 0745-816 Use only Arctic Cat approved DOT 4 brake fluid. Any substitute may result in a loss of brakes. 2. Slide a piece of flexible tubing over the ball of the bleeder valve and direct the other end into a container.
- Page 50 Arctic Cat Snowmobile dealer for this service. 6. Measure the thickness of the brake This service is at the discretion and pad.
-
Page 51: Burnishing Brake Pads
Arctic Cat Snowmobile dealer for this service. 13. Secure the brake shield, the driven This service is at the discretion and clutch (tightened to 51 ft-lb);... - Page 52 0743-395 0749-025 NOTE: Each time the driven clutch 3. When the sheaves are fully apart, cap screw is removed, the hole in the pull up on drive belt and roll belt driven shaft should be cleaned free over stationary sheave until it is free of any Loctite residue.
-
Page 53: Checking/Adjusting Deflection (2000/3000)
NOTE: Adding shim washers will decrease belt deflection and remov- ing shim washers will increase belt deflection. Available shim washers from Arctic Cat are p/n 0648-714 (0.090 in.) - one included in the tool kit, p/n 0648-715 (0.030 in.), and p/n 0648-716 (0.060 in.). -
Page 54: Track Tension
“lock.” adjuster on the stationary sheave; then using an Allen wrench, adjust Arctic Cat recommends that the track the set screw as needed. While hold- tension be checked daily during the first ing the set screw, tighten the jam nut 300 miles of operation and once a week securely. -
Page 55: Track Alignment
NOTE: To ensure proper track ten- track will occur if the track is improperly sion adjustment, perform all adjust- aligned. Arctic Cat recommends that the ments both sides track alignment be checked once a week snowmobile. -
Page 56: Suspension
3. Start the engine and accelerate 3. After proper track alignment is slightly. Use only enough throttle to obtained, tighten the adjusting bolt turn the track several revolutions. jam nut against the axle housing. SHUT ENGINE OFF. ! WARNING NOTE: Allow the track to coast to a If jam nuts are not tightened properly, stop. - Page 57 Adjusting Skid Frame NOTE: Equal adjustments should Front Arm be maintained on both sides of the snowmobile. On these models, the skid frame front On 2000 models to adjust spring tension, arm shock spring tension and the limiter rotate the entire spring in whichever straps are adjustable.
- Page 58 Adjusting Rear Spring Pre- 7000 Load Rider Weight (lb) Cam Position 2000/3000 Up to 180 Proper adjustment of rear spring pre-load 180-240 is necessary to get the most desirable ride. The chart is designed to help in set- Over 240 ting up rear spring pre-load;...
-
Page 59: Lights
These models are equipped with an LED engaged. taillight/brakelight. If the LED fails, it must be replaced. To remove and install NOTE: Arctic Cat recommends the LED, use the following procedure. that overload springs engaged whenever a load on the ... - Page 60 Bearcat 2000 XT/XTE 1. Remove the four pins securing the rear seat to the seat/Speedrack mount. 0744-462 1. Disconnect the taillight harness con- nector. 2. Remove the two self-tapping screws securing the taillight to the snowflap. 743-329A 2. Lift on the back of the rear seat and 3.
- Page 61 9. Tighten the three right-side mount 2. Disconnect the taillight harness con- cap screws; then lower the front seat. nector. 10. Place the rear seat into position on 3. Remove the two nuts securing the the mount making sure the four pin taillight.
- Page 62 6. Check headlight aim (see Adjusting Headlight Aim in this sub-section). ! WARNING Do not operate the snowmobile unless headlight beam is adjusted properly. incorrectly adjusted beam will not provide the operator the optimum amount of light. 3000/7000 741-329A 1.
- Page 63 Adjusting Headlight Aim 1. Position the snowmobile on a level floor so the headlight is approxi- 2000 mately 8 m (25 ft) from an aiming surface (wall or similar surface). The headlight can be adjusted for vertical aim of the HIGH/LOW beam. The geo- ...
-
Page 64: Ski Wear Bars
7. Place the cotter pin into the ski cap screw and spread the pin. 8. Repeat procedure for the other ski. Rail Wear Strips Arctic Cat recommends that the wear strips 0743-185 be checked weekly and replaced as neces- 3. Remove the wear bar from the ski. - Page 65 Loose snow is required to Take the snowmobile to an authorized cool and lubricate the wear strips and Arctic Cat Snowmobile dealer for this prevent accelerated wear. service. This service is at the discretion and expense of the snowmobile owner.
-
Page 66: Preparation For Storage
An authorized 12. Apply light oil to the upper steering Arctic Cat Snowmobile dealer should per- post bushing and shafts of the shock form this service; however, the owner/ absorbers. -
Page 67: Preparation After Storage
7. Tighten all nuts, bolts, and cap trouble-free snowmobiling. Arctic Cat screws making sure all nuts, bolts, recommends the following procedure: screws tightened 1. -
Page 68: Epa Emission Control Statement/Warranty Coverage (U.s. Only)
Coverage (U.S. Only) STATEMENT/WARRANTY Arctic Cat warrants to the original retail purchaser, and each subsequent purchaser, that all U.S. EPA- certified Arctic Cat snowmobiles are designed, built, and equipped to conform to all U.S. EPA Emission Control Regulations. Please read the following information completely. -
Page 69: Change Of Address, Ownership, Or Warranty Transfer
Please make sure a copy of this form is completed and returned to Arctic Cat Inc. if you move or if the vehicle is sold to another party. This form may also be used to transfer the unused portion of the original warranty to a second party. - Page 70 Fold Back Once Place Stamp Here CHANGE OF ADDRESS/OWNERSHIP ARCTIC CAT INC. PRODUCT SERVICE AND WARRANTY DEPT. P.O. BOX 810 THIEF RIVER FALLS, MN 56701...
-
Page 71: Warranty Procedure/Owner Responsibility
You, the consumer, will then be asked to sign a warranty form to ensure Arctic Cat that the warranty work was actually performed. - Page 72 Printed in U.S.A. Trademarks of Arctic Cat Inc. Thief River Falls, MN 56701 p/n 2261-102 ®TM Phone: (218) 681-9851 - U.S. (204) 982-1656 - Canada...
