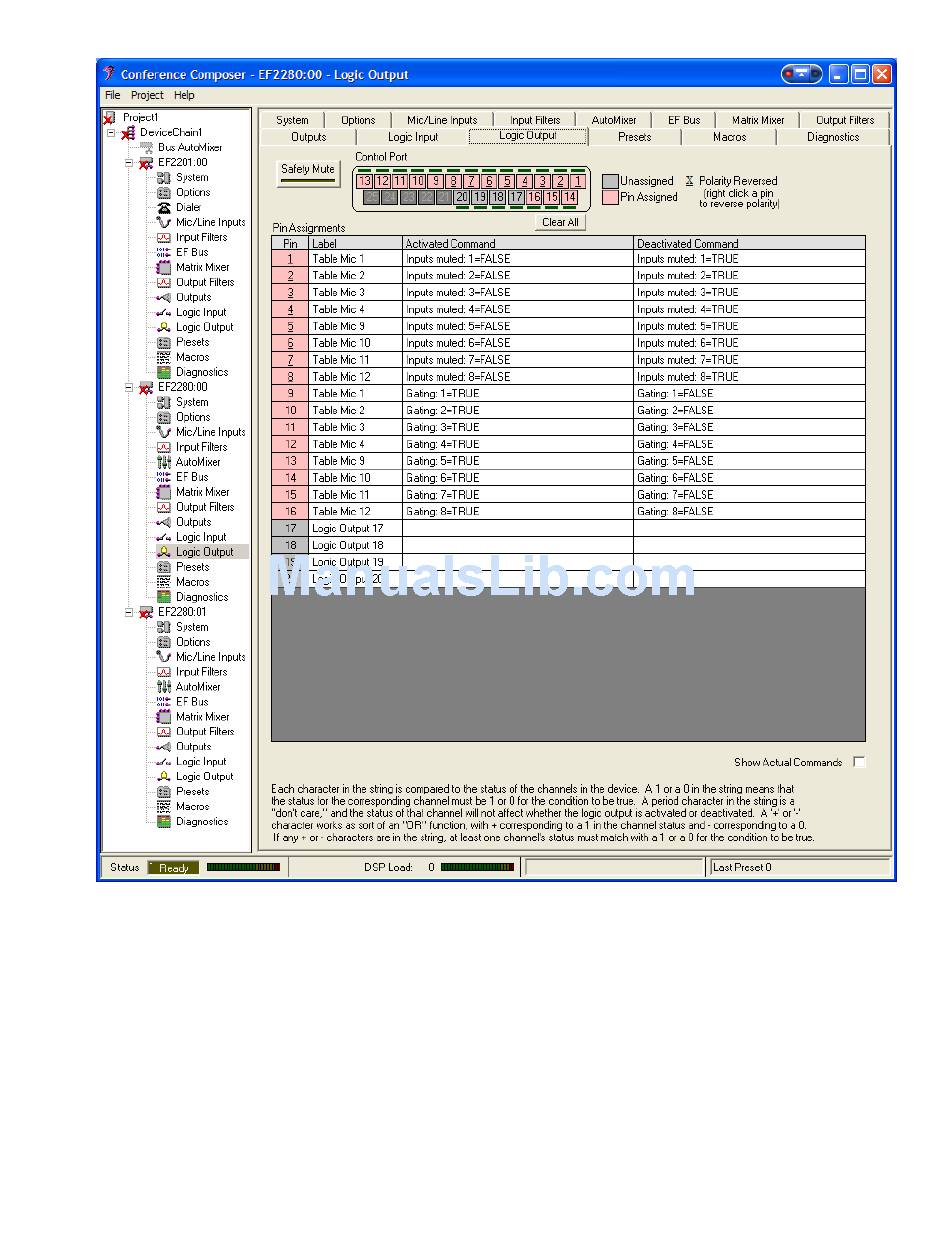

Figure 22. The default logic output definitions showing the microphone inputs and their associated
macros for illuminating the LEDs on the microphones according to muting and gating status.
5.

Uploading to Vortex Devices

Once Polycom InstantDesigner has created the complete Vortex configuration for
the desired audio design, the next step is to upload the settings to the Vortex
devices. When the system design requires more than one Vortex device, the first
step is to set the device ID's of the devices to the settings that Polycom
InstantDesigner designates for those particular devices. The device ID settings
can be found on the left panel of the Conference Composer screen where each
device in the project is listed with its device ID. In this example, there will be a
30
