There is also an option for manually selecting the equipment in case there is
specific equipment to be used in the installation. To use this option, select Manual
and then select Add Device to add devices to the selection. To delete devices,
select the device and click Delete Device. Please note that if you manually select
devices and then select Automatically Select Devices, your manual selections will
be overwritten with the automatic selection.
In this example, the automatic method of selecting devices was used and the
resulting equipment list consists of 2 Vortex EF2280's and 1 Vortex EF2201 as
shown in Figure 15. In addition to the device selection, this window shows the
number of unused microphones, line inputs, line outputs, and telephone
connections that are presently unused with the equipment selection. In our
example, there is 1 microphone input, 6 line level inputs and 16 line level outputs
available.
Select Next to go to Step 4 – Connecting Inputs and Outputs.

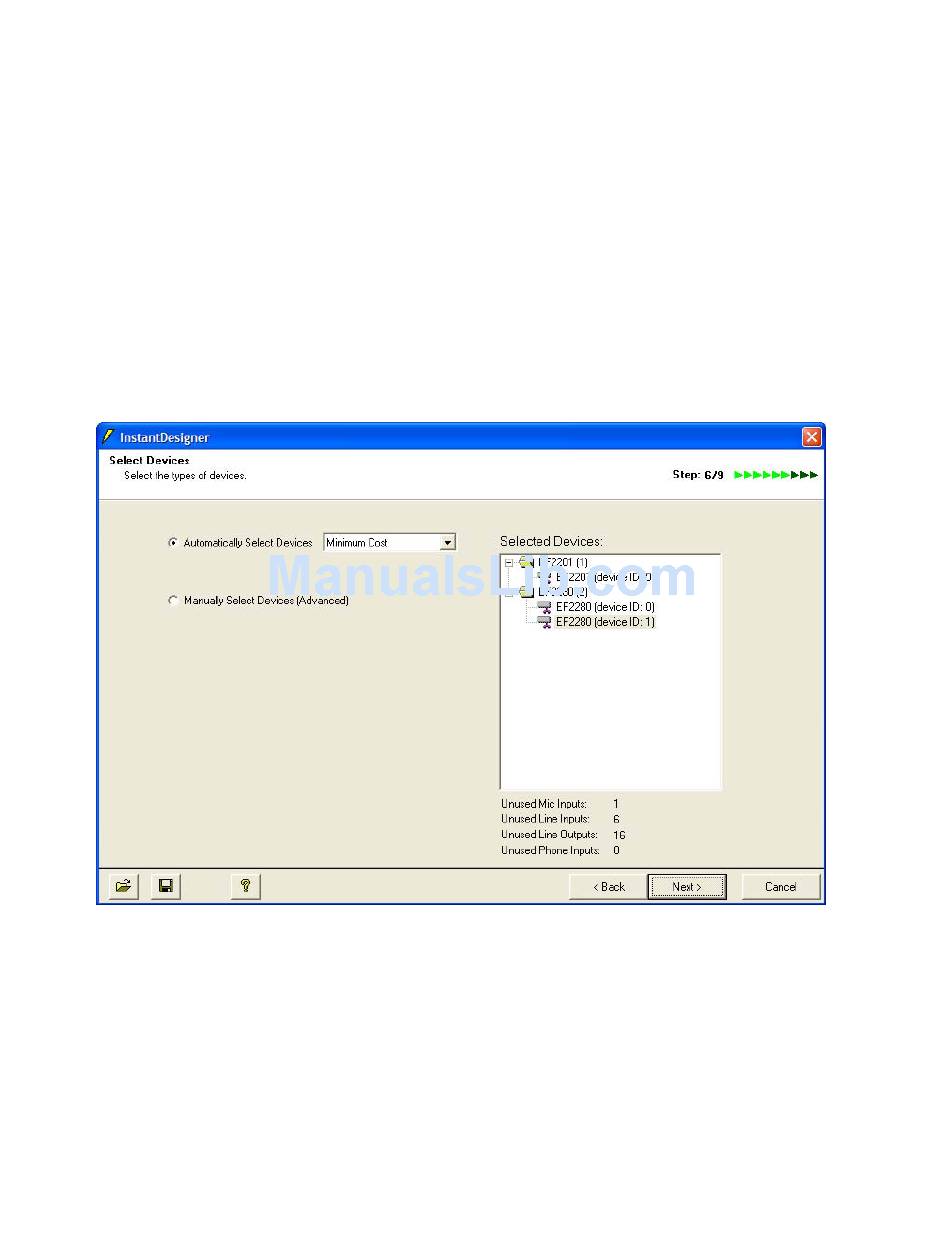

Figure 15. Polycom InstantDesigner Step 6 -- Selecting the devices shows the automatic equipment
selection.
Step 7 – Connect Inputs and Outputs
The next step for Polycom InstantDesigner is to determine how to connect the
inputs and outputs to the actual device inputs and outputs. This process is done
automatically, but the signals can be manually moved around – when not using
sound reinforcement – by selecting Manually Connect Inputs and Outputs and
dragging the appropriate input or output to the desired location.
