Please note that at any time during the Polycom InstantDesigner process you may
save your design to an InstantDesigner template file (*.idt) by selecting the floppy
icon on the lower left of the screen. The design specifications that you have
created up to that point can be restored from a saved file by selecting the folder
icon on the lower left of the screen. These Conference Composer template files
are different from the files that Conference Composer creates and can be used to
share your design intent with your team, subcontractors, etc. before the complete
Conference Composer project file is created.
After the input selections have been made, select Next to go to Step 2 – Select
Outputs.

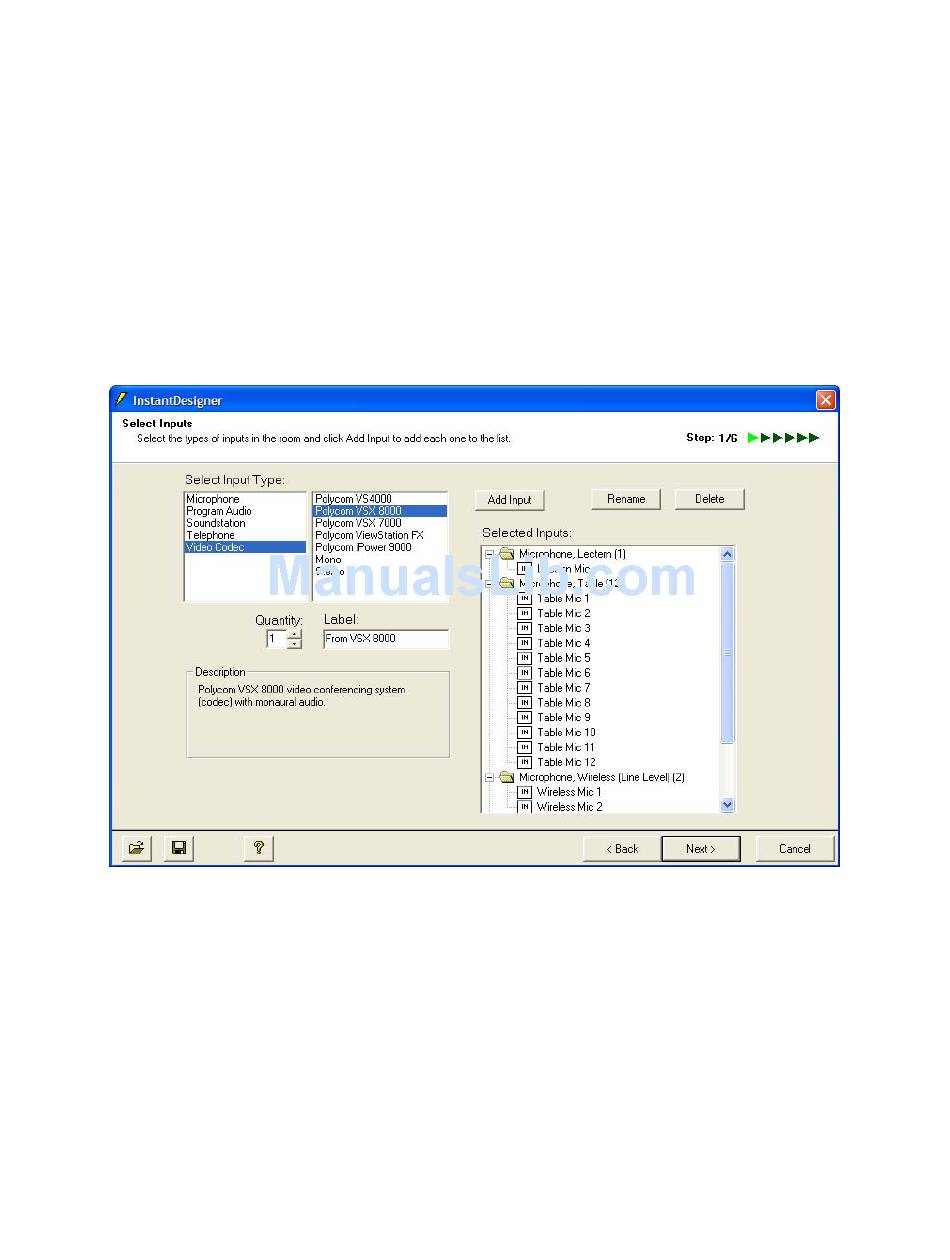

Figure 6. Sample input selection with 12 table microphones, a lectern microphone, 2 wireless
microphones, stereo program audio, telephone interface, and a Polycom VSX 8000 video codec.
Step 2 – Select Outputs
The second step of Polycom InstantDesigner is to select the outputs that will be
used. By default, some outputs will already be selected, such as a telephony
output and a video codec output, if their respective inputs have been selected.
This automatic selection is shown in Figure 7.
The types of outputs that may be added to the system include:
• Assistive listening
