Polycom Vortex EF2280 Brochure & Specs

Benefits
Industry leading audio quality – Design
enhancements improve the audio experi-
ence for even the most demanding listening
environments; support for the broadest
range of microphones in the industry
Hear every word with Polycom's
industry-leading acoustic echo and
noise cancellation – Ensures the highest
possible audio quality between sites with
20 kHz bandwidth, 270 ms tail length, more
than 10 dB of room gain, and a conver-
gence rate of over 40 dB per second on
each mic/line channel
Integrated voice and video
solution – May be linked with additional
Vortex Installed Voice products including
Vortex EF2201, Vortex EF2210, Vortex
EF2211, the Vortex EF2241 and Vortex
EF2280; Polycom's SoundStation VTX
1000™ wideband conference phone and
Polycom's video conferencing systems
including the VSX™ 7000 and 8000
product lines
Easy setup – Conference Composer™ and
Polycom Instant Designer™ software make
configuration fast and simple
Easy to operate – Controllable via
® ®
Crestron , AMX or other room control
systems, RS-232, the Vortex EF-IR11
infrared controller, or from the unit's front
panel; 16 factory presets and 32 user con-
figurable presets allow quick selection of
operating parameters
Adaptable to user requirements – User-
programmable delays on all outputs, 5-band
parametric EQ on all inputs and outputs,
intelligent Automatic Gain Control, 256
macros, system diagnostics, and other
tools ensure the best performance for
all room conditions
Polycom Vortex
®
Acoustic echo/noise canceller with automatic
microphone/matrix mixer
Enjoy clear, understandable conversation in all
conferencing applications.

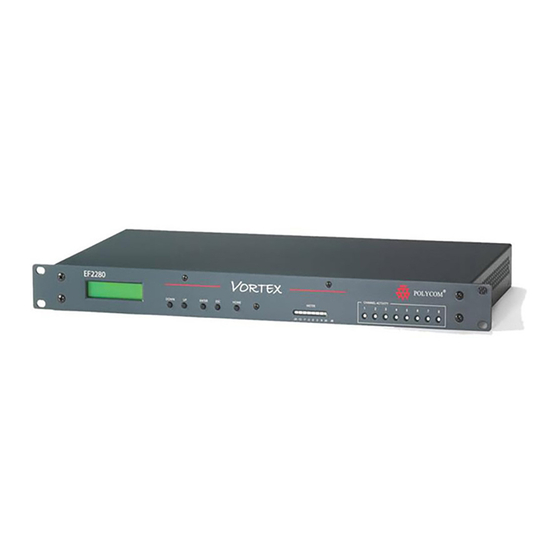

The Vortex EF2280 improves audio quality for conferencing, distance learning, and other installed applications
through industry-leading acoustic echo and noise cancellation - with support for up to 8 microphones.
The Vortex EF2280 automatically mixes microphones and other audio sources while cancelling acoustic
echoes and annoying background noise. It is typically installed at each site in a multi-site network and is
commonly used in applications such as boardrooms, courtrooms, distance learning, sound reinforcement,
and room combining. It connects easily to other equipment such as codecs, VCRs, or other A/V products.
The unit can be programmed from the front panel, or through Conference Composer™ software (included).
Conference Composer's Instant Designer™ wizard ensures fast, accurate setup for a variety of applications.
A single Vortex EF2280 unit provides automatic mixing of up to eight microphones plus four auxiliary
audio sources. If more microphones are needed, additional Vortex EF2280 or Vortex EF2241 units can be
linked, up to a total of eight units. Number of Open Microphones (NOM) information can be specified across
all channels in the linked units. The microphone channels feature industry-leading acoustic echo cancellation
to prevent retransmission of signals to their original locations. A neural network Automatic Gain Control
(AGC) reacts only to valid speech patterns, bringing voices within desired levels. AGC controls are user
adjustable, as are settings for the five-band parametric EQ offered on all input and output channels and
output delay controls.
The high-quality audio choice to access the power of Polycom unified collaborative communications solutions.
With the greatest breadth and depth of integrated video, voice, and Web solutions, only Polycom delivers
the ultimate communications experience. Our market-leading conferencing and collaboration technologies,
supported by world-class service, enable people and organizations to maximize their effectiveness and pro-
ductivity. Add to that the most experience and proven best-practices in the industry, and it's clear why
Polycom has become the smart choice for organizations seeking a strategic advantage in a real-time world.
EF2280
®
Connect. Any Way You Want.
