TESmart HSW0801A10 Quick Start Manual

8x1 HDMI Switch

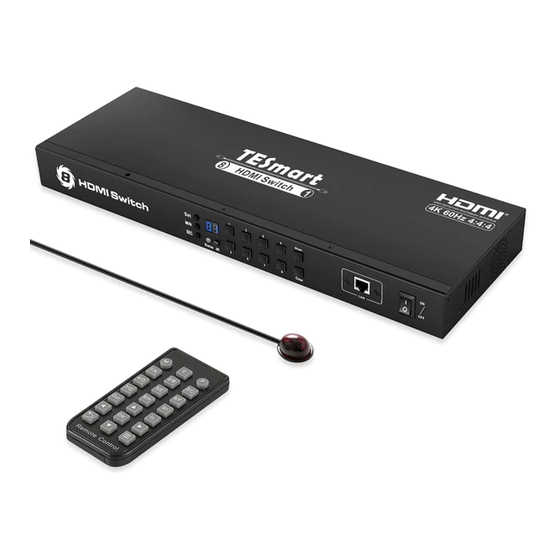

The 8 ports HDMI switch HSW0801A10, allows up to 8 Ultra HD sources to be routed to one
Ultra HD display. Support resolutions up to 4K (3840 x 2160 @ 30Hz). Deep Color, 3DTV
pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD
Master Audio are also supported. Support automatic input source detection, when attach
new input device to the switch, the switch will switch to last plugged in source automatically.
With EDID emulators in every input ports, keep PCs always have correct display information,
prevent display settings changed while switching input ports.

Features

 With EDID emulators in each input port, keep PCs always having correct display
information
 Support hot plug, connect or disconnect devices to the HDMI switch at any time without
turning off devices
 Support auto switching to monitor computers in a specified time interval
 Support front panel buttons, IR signals, RS232 serial commands or IP commands to
control HDMI switch
 Support resolution up to 3840*2160@30Hz
 Auto input detect and switch
 Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

Packing list

1 * 8x1 HDMI Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector(For RS232)
2 * Rack-ears
1 * Quick-Start Guide
