  • Page 1 HDMI Switch USER MANUAL ENJOY THE VIVID WORLD UltraHD HDR...

  • Page 3: Packing List

    UltraHD HDR Features : With 3/5 HDMI inputs and 1 HDMI output Ÿ Support resolution up to 4K@60Hz 4:4:4 Ÿ HDCP 2.2 compliant Ÿ Support two switching modes: auto mode and manual Ÿ mode Switch between 3/5 inputs using front panel key and IR Ÿ...

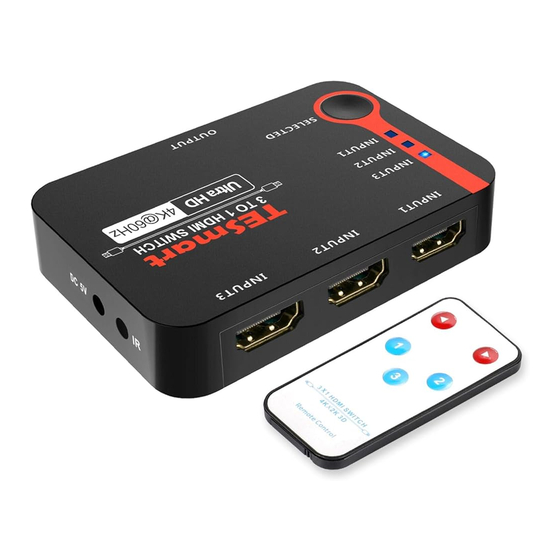

  • Page 4 UltraHD HDR 3x1 Panel Description : 3 TO 1 HDMI SWITCH 4K@60Hz Name Description Receive IR signal, connect IR receiver IR receiver extension cable to this port DC 5V 5V DC power supply HDMI input Connect to HDMI source devices HDMI output Connect to HDMI display...
  • Page 5 UltraHD HDR Name Description Input selection button Select input source Input connection Indicate current selected input status source 5x1 Panel Description : 5 TO 1 HDMI SWITCH 4K@60Hz...
  • Page 6 UltraHD HDR Name Description Receive IR signal, connect IR IR receiver receiver extension cable to this port DC 5V 5V DC power supply HDMI input Connect to HDMI source devices HDMI output Connect to HDMI display Input selection button Select input source Input connection Indicate current selected input status...

  • Page 7: Connection Diagram

    UltraHD HDR Connection Diagram : HD STB 3 To 1 switch Projector HDMI 4K@60Hz HDMI 4K@60Hz HD TV PS3/PS4 5 To 1 switch Monitor...

  • Page 8: Switching Mode

    UltraHD HDR Switching mode : 1. Switch manual/ auto switching mode (1) Press the button ‘Selected’ for 5 seconds, then all the indicators will flash three times, the switch enters manual mode (2) Press the button ‘Selected’ for 5 seconds, then all the indicators will flash once, the switch enters auto mode 2.
  • Page 9 UltraHD HDR 3x1 IR Remote Control : Select input source 1 Select input source 2 Select input source 3 Switch to next input port...
  • Page 10 UltraHD HDR 5x1 IR Remote Control : Select input source 1 Select input source 2 Select input source 3 Select input source 4 Select input source 5 Switch to next input port Note: 1. For the safety request by some express company, the remote control is not equipped battery by default.

  • Page 11: Warranty Information

    Warranty Information :...
