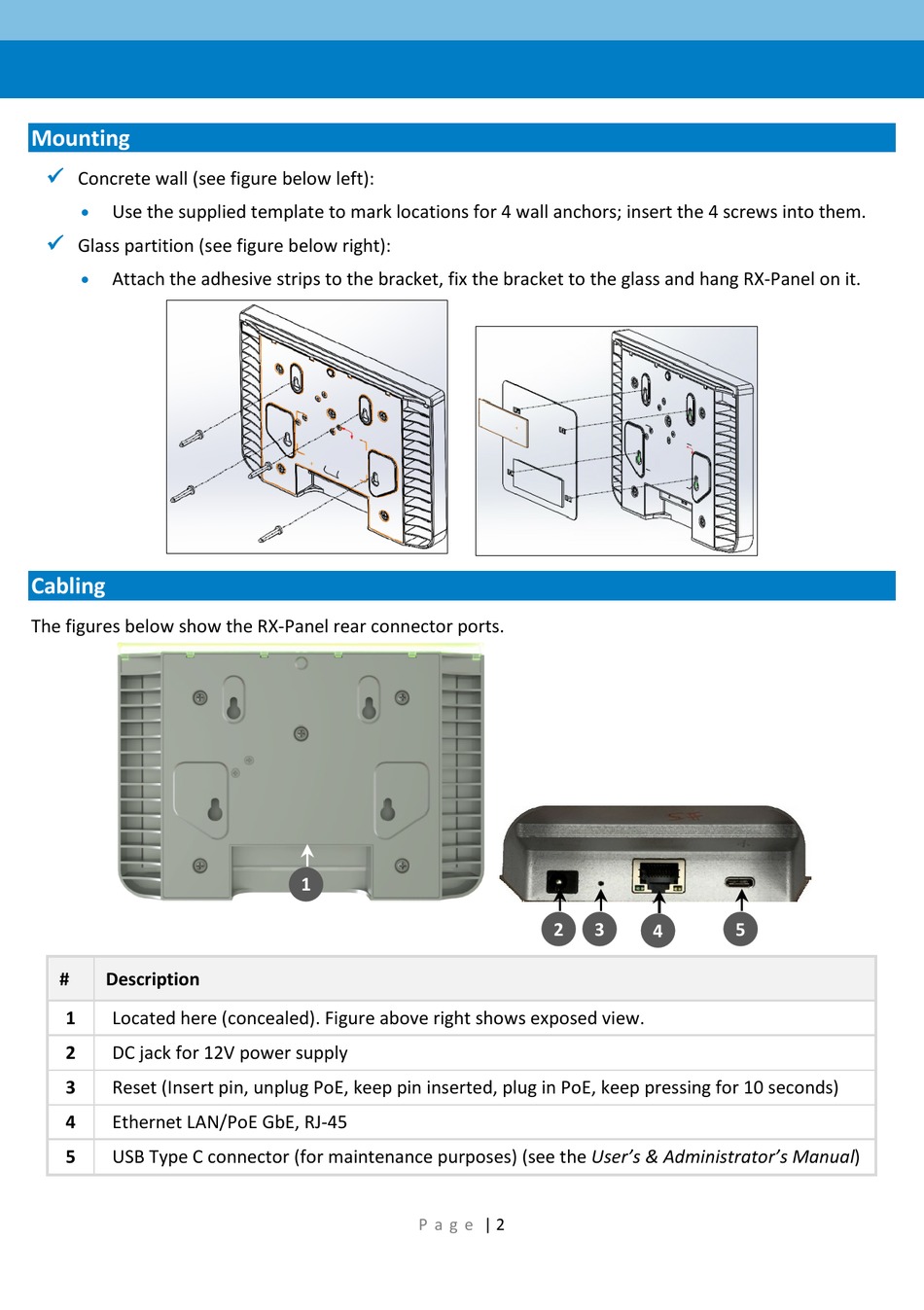

Mounting
Concrete wall (see figure below left):
Use the supplied template to mark locations for 4 wall anchors; insert the 4 screws into them.
•
Glass partition (see figure below right):
Attach the adhesive strips to the bracket, fix the bracket to the glass and hang RX-Panel on it.
•
Cabling
The figures below show the RX-Panel rear connector ports.
#
Description
1
Located here (concealed). Figure above right shows exposed view.
2
DC jack for 12V power supply
3
Reset (Insert pin, unplug PoE, keep pin inserted, plug in PoE, keep pressing for 10 seconds)
4
Ethernet LAN/PoE GbE, RJ-45
5
USB Type C connector (for maintenance purposes) (see the User's & Administrator's Manual)
1
P a g e
2
3
4
| 2
5
