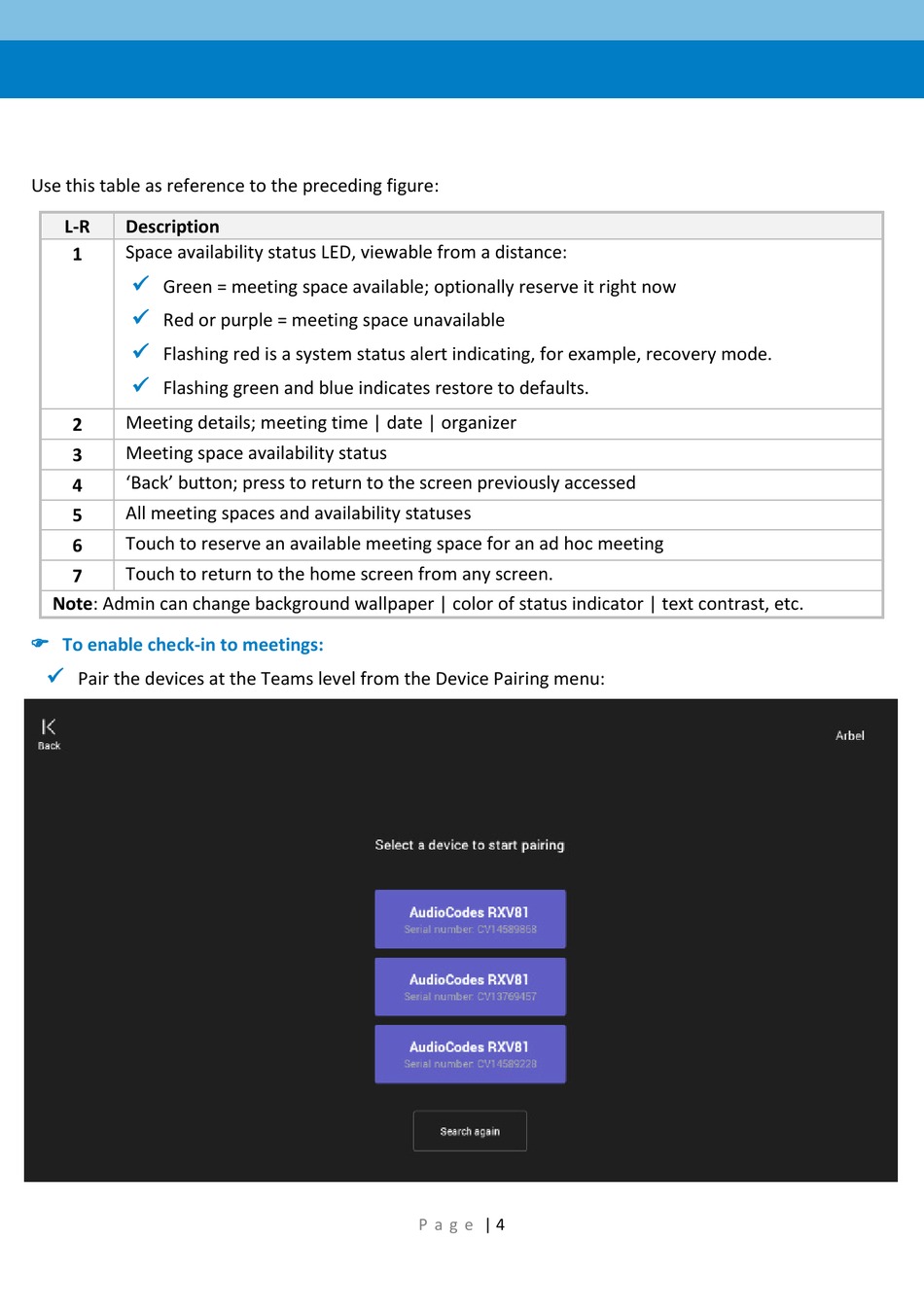

Use this table as reference to the preceding figure:
L-R
Description
Space availability status LED, viewable from a distance:
1
Green = meeting space available; optionally reserve it right now
Red or purple = meeting space unavailable
Flashing red is a system status alert indicating, for example, recovery mode.
Flashing green and blue indicates restore to defaults.
Meeting details; meeting time | date | organizer
2
Meeting space availability status
3
'Back' button; press to return to the screen previously accessed
4
All meeting spaces and availability statuses
5
Touch to reserve an available meeting space for an ad hoc meeting
6
Touch to return to the home screen from any screen.
7
Note: Admin can change background wallpaper | color of status indicator | text contrast, etc.
To enable check-in to meetings:
Pair the devices at the Teams level from the Device Pairing menu:
P a g e
| 4
