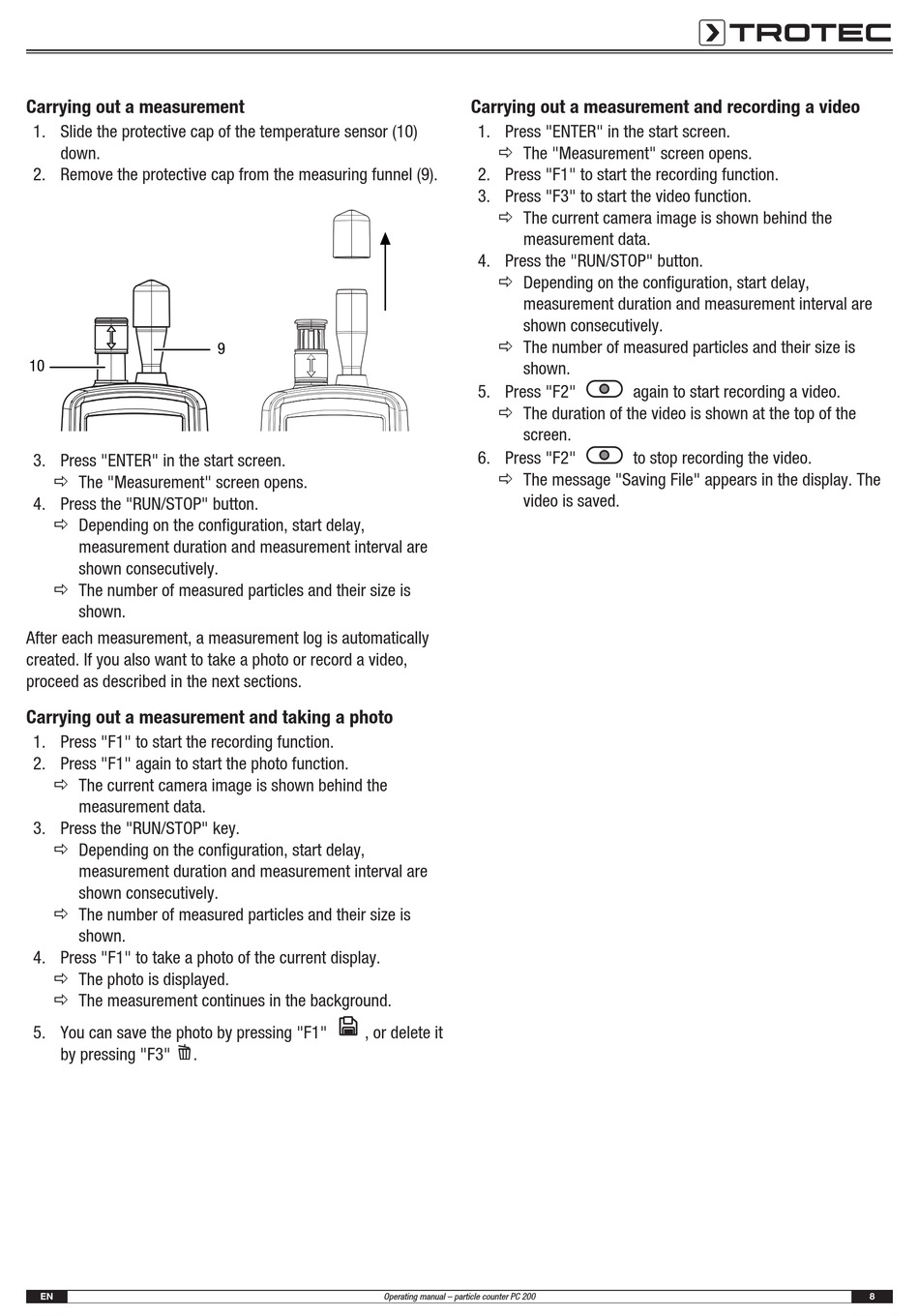

Trotec PC 200 Operating Manual page 9

Carrying out a measurement
1. Slide the protective cap of the temperature sensor (10)
down.
2. Remove the protective cap from the measuring funnel (9).
10
3. Press "ENTER" in the start screen.
ð The "Measurement" screen opens.
4. Press the "RUN/STOP" button.
ð Depending on the configuration, start delay,
measurement duration and measurement interval are
shown consecutively.
ð The number of measured particles and their size is
shown.
After each measurement, a measurement log is automatically
created. If you also want to take a photo or record a video,
proceed as described in the next sections.
Carrying out a measurement and taking a photo
1. Press "F1" to start the recording function.
2. Press "F1" again to start the photo function.
ð The current camera image is shown behind the
measurement data.
3. Press the "RUN/STOP" key.
ð Depending on the configuration, start delay,
measurement duration and measurement interval are
shown consecutively.
ð The number of measured particles and their size is
shown.
4. Press "F1" to take a photo of the current display.
ð The photo is displayed.
ð The measurement continues in the background.
5. You can save the photo by pressing "F1"
by pressing "F3" .
EN
9
, or delete it
Operating manual – particle counter PC 200
Carrying out a measurement and recording a video
1. Press "ENTER" in the start screen.
ð The "Measurement" screen opens.
2. Press "F1" to start the recording function.
3. Press "F3" to start the video function.
ð The current camera image is shown behind the
measurement data.
4. Press the "RUN/STOP" button.
ð Depending on the configuration, start delay,
measurement duration and measurement interval are
shown consecutively.
ð The number of measured particles and their size is
shown.
5. Press "F2" again to start recording a video.
ð The duration of the video is shown at the top of the
screen.
6. Press "F2" to stop recording the video.
ð The message "Saving File" appears in the display. The
video is saved.
