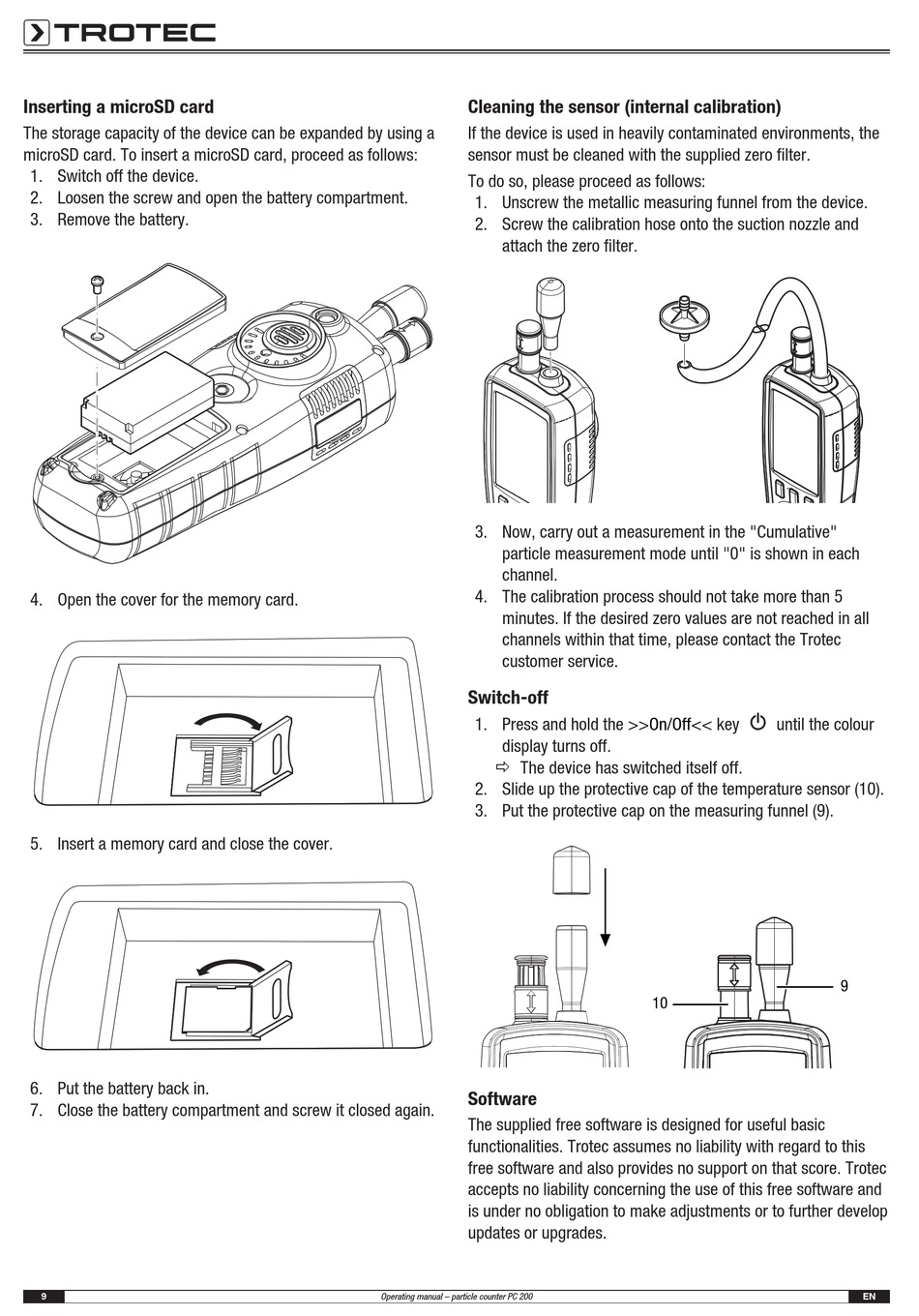

Trotec PC 200 Operating Manual page 10

Inserting a microSD card
The storage capacity of the device can be expanded by using a
microSD card. To insert a microSD card, proceed as follows:
1. Switch off the device.
2. Loosen the screw and open the battery compartment.
3. Remove the battery.
4. Open the cover for the memory card.
5. Insert a memory card and close the cover.
6. Put the battery back in.
7. Close the battery compartment and screw it closed again.
9
Cleaning the sensor (internal calibration)
If the device is used in heavily contaminated environments, the
sensor must be cleaned with the supplied zero filter.
To do so, please proceed as follows:
1. Unscrew the metallic measuring funnel from the device.
2. Screw the calibration hose onto the suction nozzle and
attach the zero filter.
3. Now, carry out a measurement in the "Cumulative"
particle measurement mode until "0" is shown in each
channel.
4. The calibration process should not take more than 5
minutes. If the desired zero values are not reached in all
channels within that time, please contact the Trotec
customer service.
Switch-off
1. Press and hold the
display turns off.
ð The device has switched itself off.
2. Slide up the protective cap of the temperature sensor (10).
3. Put the protective cap on the measuring funnel (9).
Software
The supplied free software is designed for useful basic
functionalities. Trotec assumes no liability with regard to this
free software and also provides no support on that score. Trotec
accepts no liability concerning the use of this free software and
is under no obligation to make adjustments or to further develop
updates or upgrades.
Operating manual – particle counter PC 200
>>On/Off<< key until the colour
