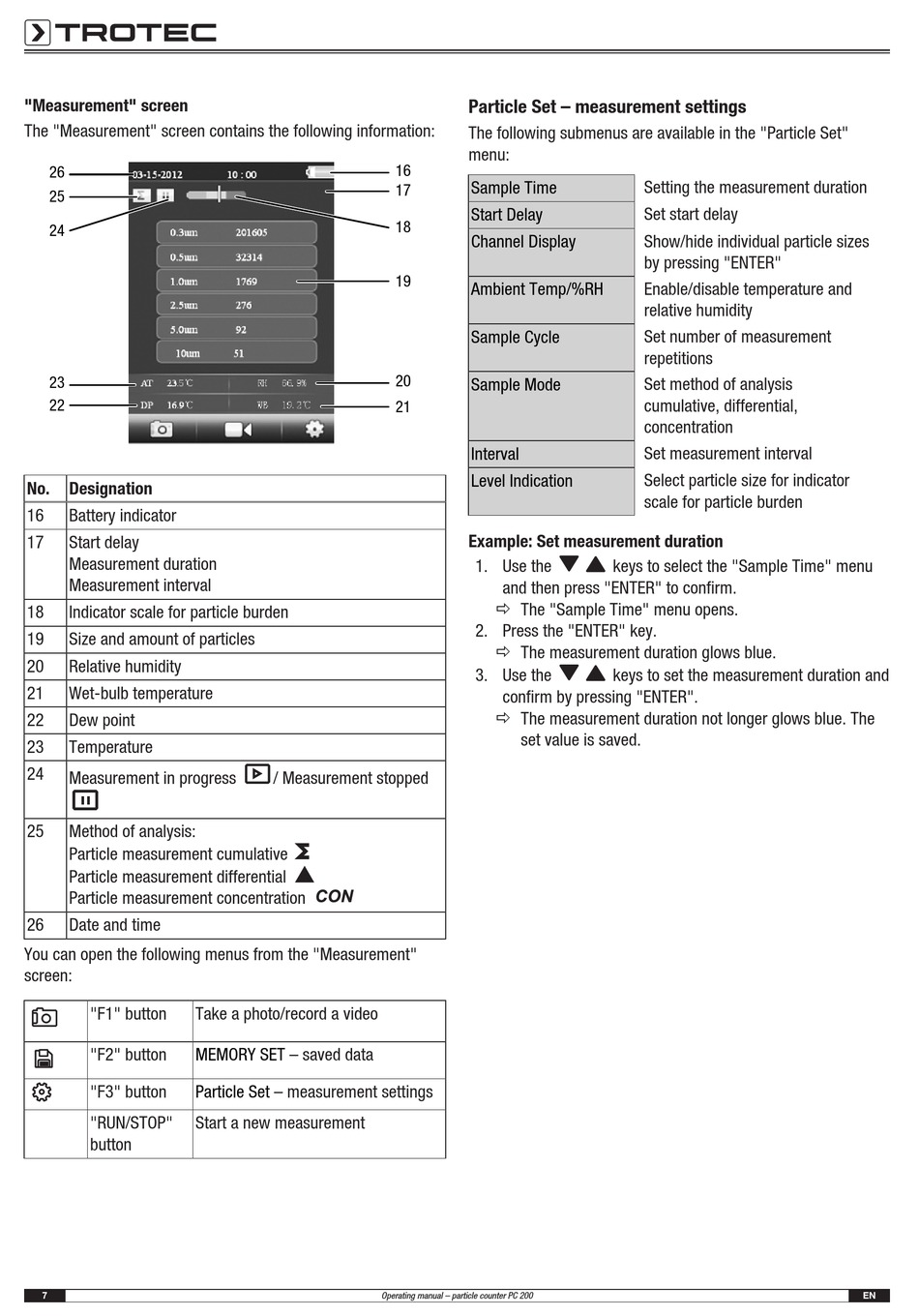

Trotec PC 200 Operating Manual page 8

"Measurement" screen
The "Measurement" screen contains the following information:
26
25
24
23
22
No. Designation
16 Battery indicator
17 Start delay
Measurement duration
Measurement interval
18 Indicator scale for particle burden
19 Size and amount of particles
20 Relative humidity
21 Wet-bulb temperature
22 Dew point
23 Temperature
24
Measurement in progress
25 Method of analysis:
Particle measurement cumulative
Particle measurement differential
Particle measurement concentration
26 Date and time
You can open the following menus from the "Measurement"
screen:
"F1" button Take a photo/record a video
"F2" button MEMORY SET
"F3" button Particle Set
"RUN/STOP" Start a new measurement
button
7
16
17
18
19
20
21
/ Measurement stopped
– saved data
– measurement settings
Operating manual – particle counter PC 200
Particle Set – measurement settings
The following submenus are available in the "Particle Set"
menu:
Sample Time
Start Delay
Channel Display
Ambient Temp/%RH
Sample Cycle
Sample Mode
Interval
Level Indication
Example: Set measurement duration
1. Use the keys to select the "Sample Time" menu
and then press "ENTER" to confirm.
ð The "Sample Time" menu opens.
2. Press the "ENTER" key.
ð The measurement duration glows blue.
3. Use the keys to set the measurement duration and
confirm by pressing "ENTER".
ð The measurement duration not longer glows blue. The
set value is saved.
Setting the measurement duration
Set start delay
Show/hide individual particle sizes
by pressing "ENTER"
Enable/disable temperature and
relative humidity
Set number of measurement
repetitions
Set method of analysis
cumulative, differential,
concentration
Set measurement interval
Select particle size for indicator
scale for particle burden
