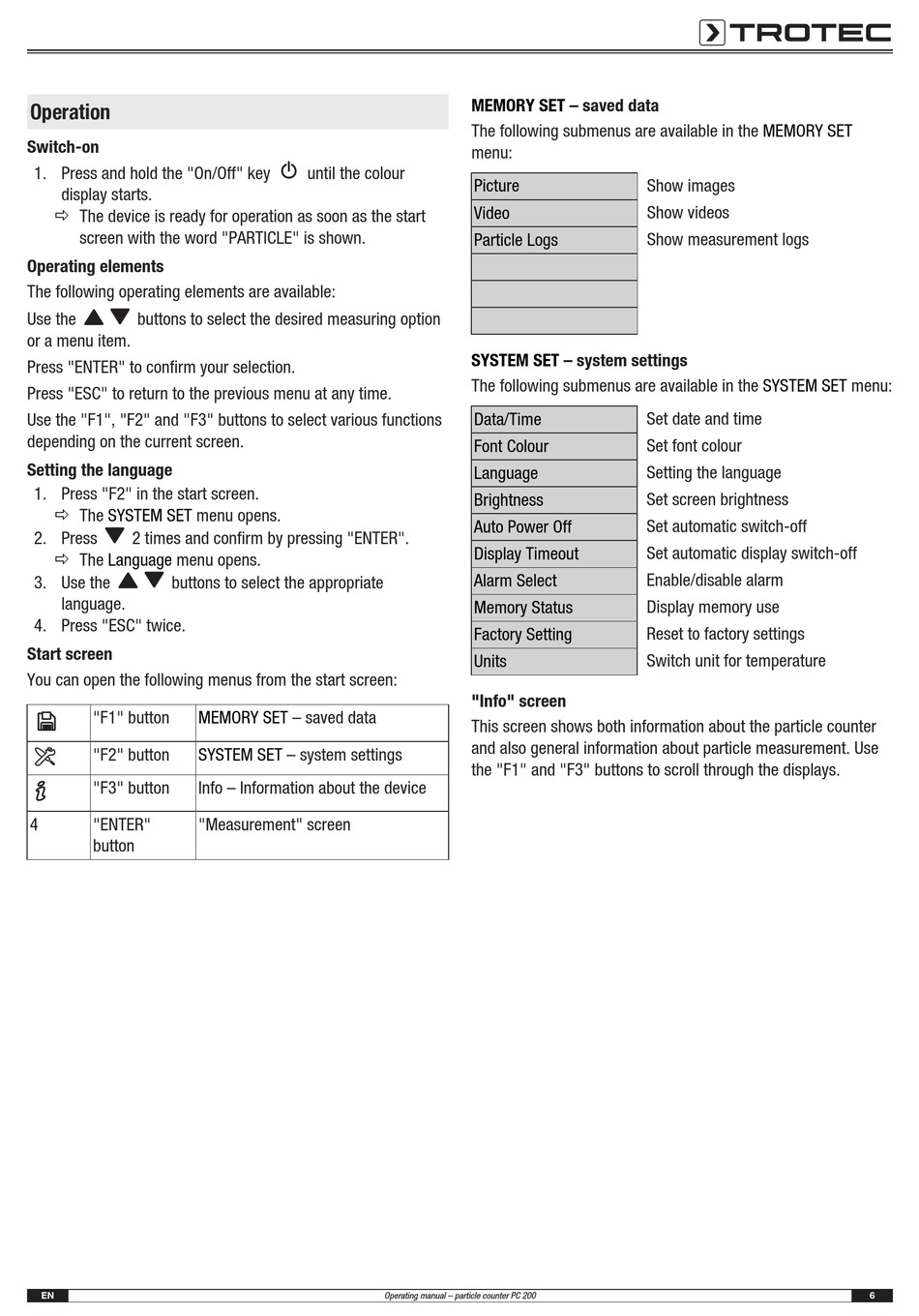

Operation

Switch-on
1. Press and hold the "On/Off" key
display starts.
ð The device is ready for operation as soon as the start
screen with the word "PARTICLE" is shown.
Operating elements
The following operating elements are available:
Use the buttons to select the desired measuring option
or a menu item.
Press "ENTER" to confirm your selection.
Press "ESC" to return to the previous menu at any time.
Use the "F1", "F2" and "F3" buttons to select various functions
depending on the current screen.
Setting the language
1. Press "F2" in the start screen.
ð The
SYSTEM SET menu opens.
2. Press 2 times and confirm by pressing "ENTER".
ð The
Language menu opens.
3. Use the buttons to select the appropriate
language.
4. Press "ESC" twice.
Start screen
You can open the following menus from the start screen:
"F1" button MEMORY SET
"F2" button SYSTEM SET
"F3" button Info – Information about the device
4 "ENTER" "Measurement" screen
button
EN
until the colour
– saved data
– system settings
Operating manual – particle counter PC 200
MEMORY SET – saved data
The following submenus are available in the
menu:
Video
Particle Logs
SYSTEM SET – system settings
The following submenus are available in the
Data/Time
Font Colour
Language
Brightness
Auto Power Off
Display Timeout
Alarm Select
Memory Status
Factory Setting
Units
"Info" screen
This screen shows both information about the particle counter
and also general information about particle measurement. Use
the "F1" and "F3" buttons to scroll through the displays.
MEMORY SET
Show images
Show videos
Show measurement logs
SYSTEM SET
Set date and time
Set font colour
Setting the language
Set screen brightness
Set automatic switch-off
Set automatic display switch-off
Enable/disable alarm
Display memory use
Reset to factory settings
Switch unit for temperature
menu:
