Assembly — Installing the Light Kit

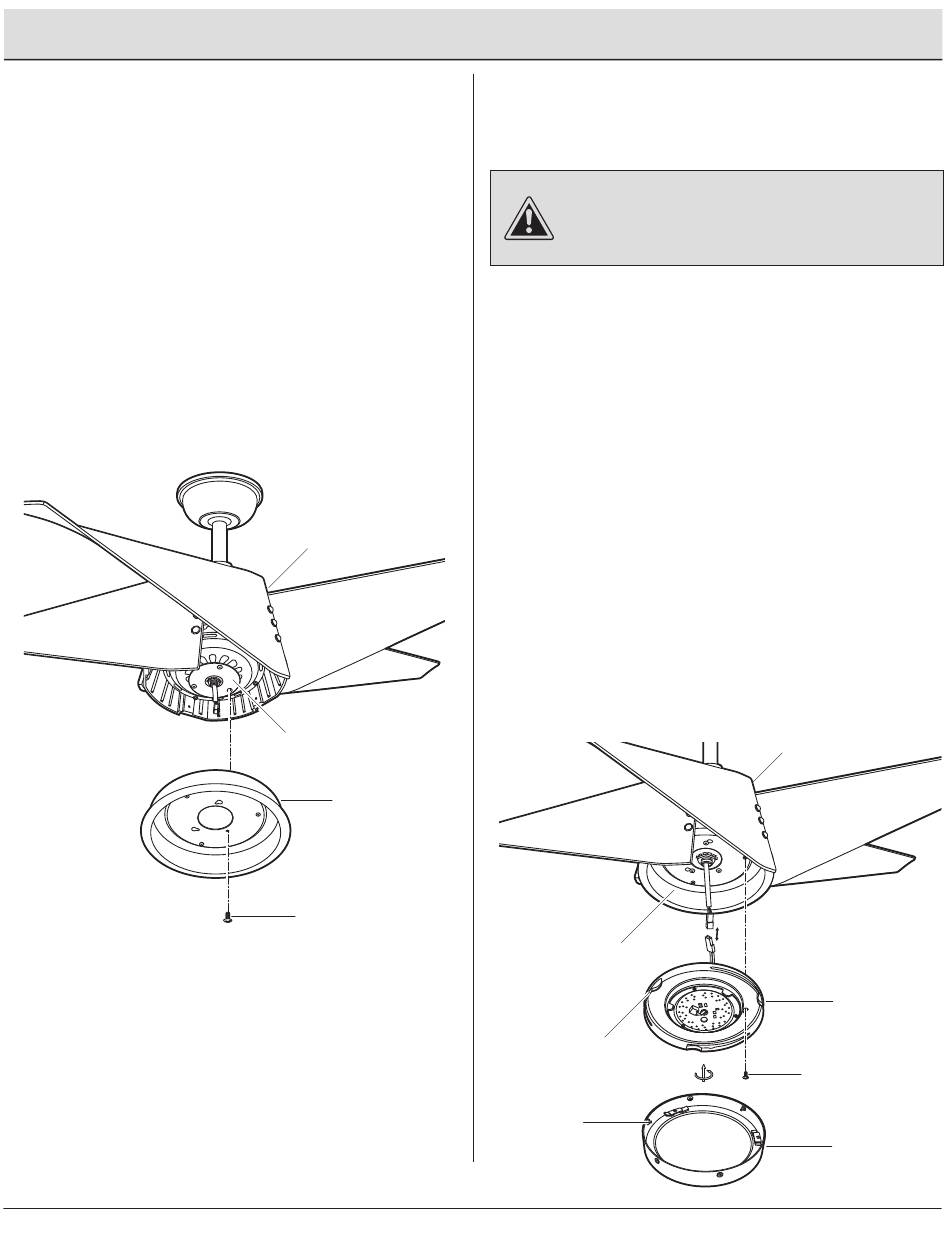

Attaching the light kit mounting
10
plate to the mounting ring
□
Remove one of the three light kit mounting plate
screws (II) from the mounting ring (SS) and loosen
the other two screws. (Do not remove.)
□
Place the key holes in the light kit mounting plate (H)
over the two screws (II) previously loosened from the
mounting ring (SS). Turn the light kit mounting plate
(H) until the light kit mounting plate (H) locks in place
at the narrow section of the key holes.
□
Securely tighten the two light kit mounting plate
screws (II) previously loosened and the one (II)
previously removed.
F
SS
H
II
14
Attaching the LED light kit
11
and light cover
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□
Remove one of the three light kit mounting screws
(JJ) from the light kit mounting plate (H) and loosen
the other two screws (JJ). (Do not remove.)
□
While holding the 14W LED light kit (I) under the fan
motor assembly (F), make the 2-pin wire
connections:
- White to white
- Black to black
□
Place the key holes in the 14W LED light kit (I) over
the two mounting screws (JJ) previously loosened
from the light kit mounting plate (H). Turn the 14W
LED light kit (I) until the 14W LED light kit (I) locks in
place at the narrow section of the key holes. Secure
by tightening the two light kit mounting screws (JJ)
previously loosened and the one (JJ) previously
removed.
□
Position the notches (TT) in the outer rim of the 14W
LED light kit (I) so they line up with the tabs (UU) on
the inside of the rim on the light cover (J). Carefully
lift the light cover (J) up inside the 14W LED light kit
(I) and secure it to the fan by turning the light cover
(J) clockwise until snug. DO NOT OVERTIGHTEN.
H
TT
UU
F
I
JJ
J
