INSTALLATION INSTRUCTIONS
IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.
WARNING:
WARNING:
12. To remove the REFLECTOR, disconnect the REFLECTOR
CONNECTOR from the HOUSING. (Fig. 12)
13. To reinstall, reverse steps 12 and 11, listening for audible
clicks as REFLECTOR TABS engage REFLECTOR.
NOTE: This fixture is to be installed as a DOWNLIGHT ONLY.
This fixture is not suitable for UPLIGHT mounting
configurations.
These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user's purpose, please
contact your nearest representative.
TM
Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing
or servicing.
Risk of Personal Injury. Fixture may become damaged and/or unstable if not installed properly.
Tighten all fixture components to their recommended torque values.

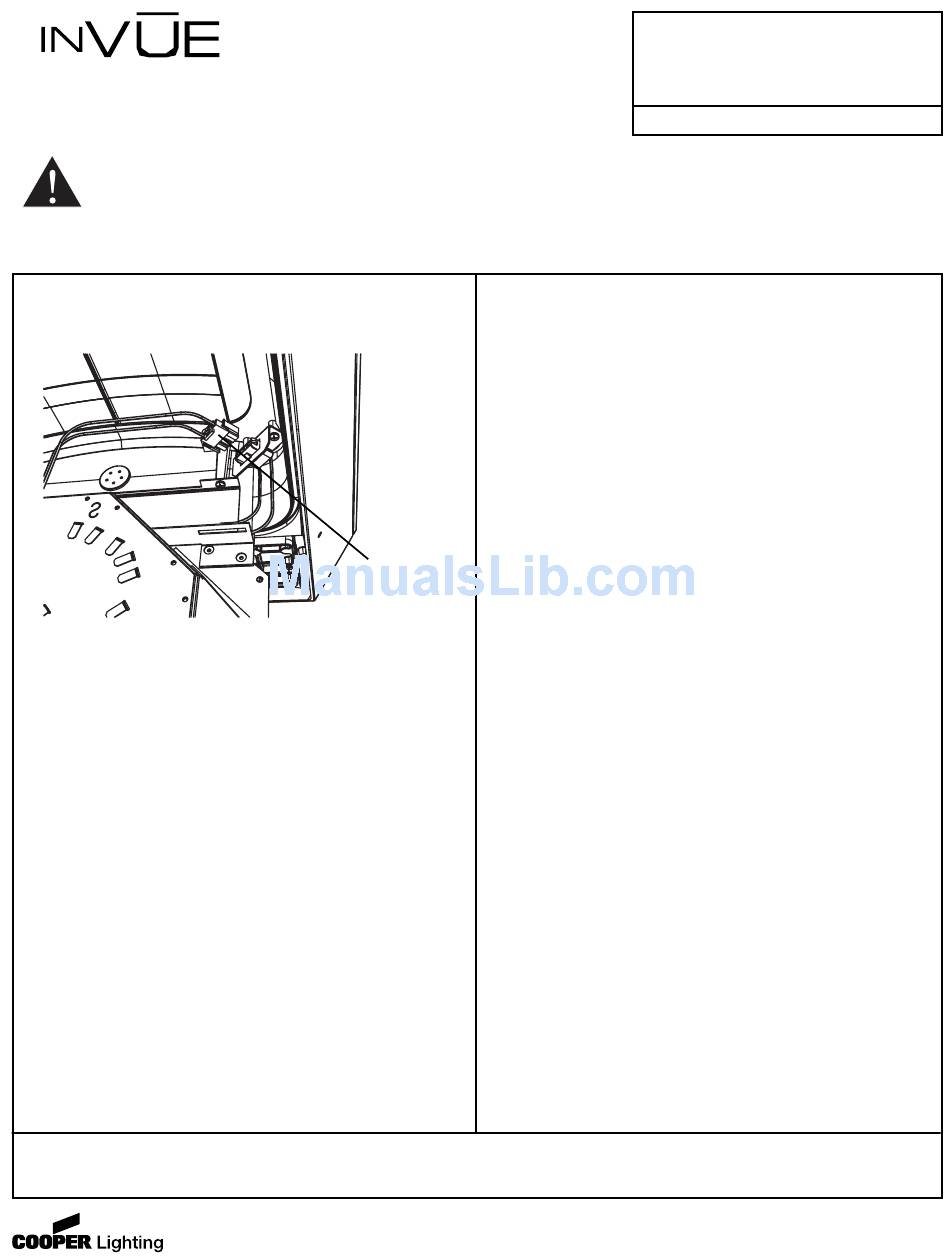

Fig. 12
REFLECTOR
CONNECTOR
Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269
Ascent/Strut Fixtures
NEMA TWIST LOCK PHOTOCONTROL & RECEPTACLE:
The photocontrol receptacle is factory installed and ordered with
the fixture. The photocontrol is ordered separately and must be
field installed. The voltage of the photocontrol must match the
voltage of the fixture.

FUSING:

Single fuse is available for use with 120V, 277V or 347V fixture.
Double fuse is available for use with 208V, 240V or 480V fixtures.

MAINTENANCE:

When maintenance is performed, check torque on all fasteners
and tighten to specified torque if required.

CLEANING:

The reflector and door glass may be cleaned with any suitable,
non-abrasive glass cleaning solution, soap or
detergent and rinsed with clean water. Please remove the
reflector and door from the fixture prior to cleaning.
KEEP THIS DOCUMENT FOR FUTURE REFERENCE
Sheet 5 of 5
4/26/04 IMI-572
IMI-572 AVU040062
