INSTALLATION INSTRUCTIONS
IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.
RETAIN FOR FUTURE REFERENCE.
WARNING:

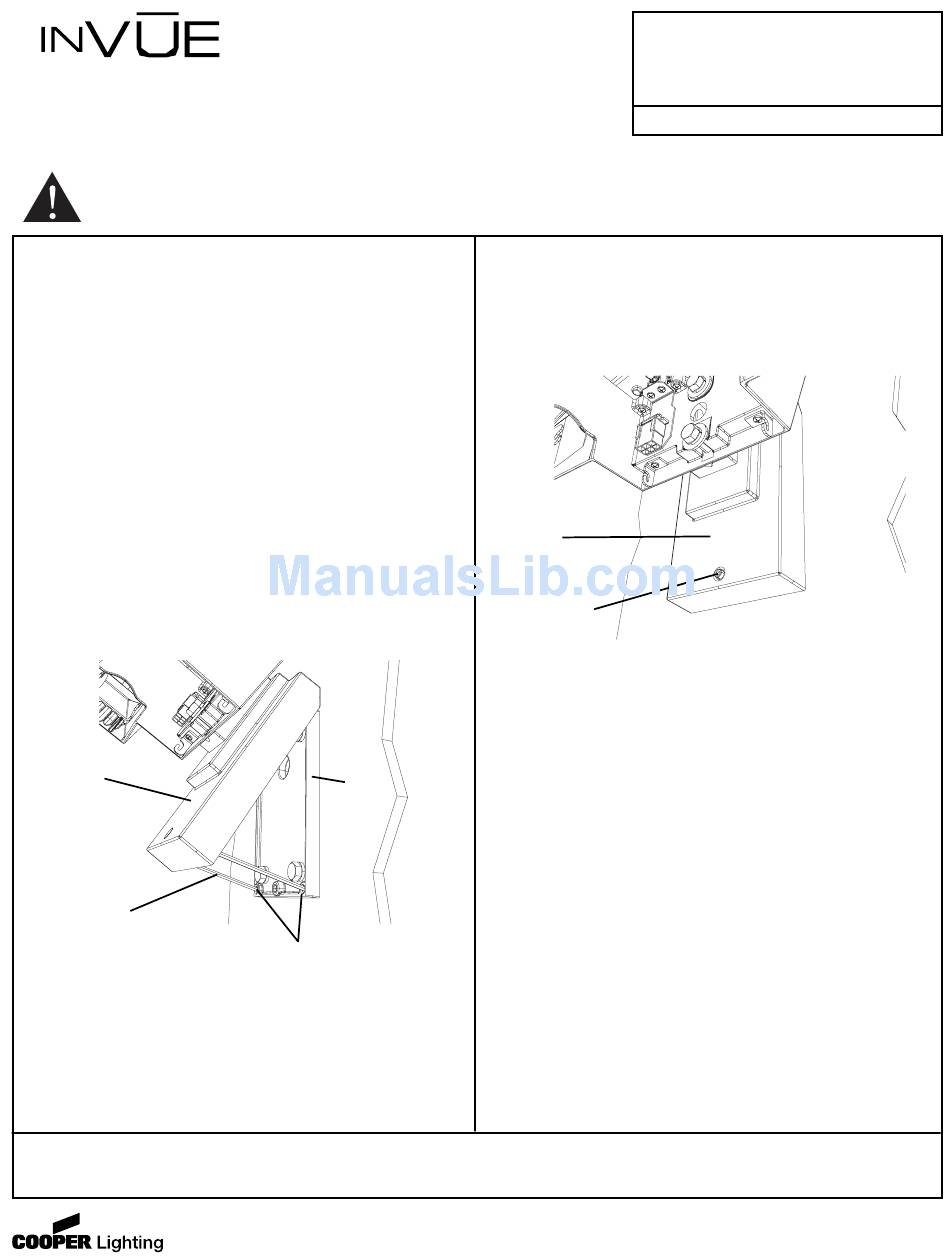

7. Hook WALL BRACKET over WALL PLATE and place
SUPPORT BRACKET into SUPPORT HOLES in WALL PLATE
to support fixture as shown. (Fig. 7)
Make wire connections in WALL BRACKET.
Wire the fixture ground lead to the supply ground lead.
Wire the fixture voltage lead to the supply voltage lead.
Wire the fixture common lead to the supply common
lead.
NOTE: To wire to circuits not having a neutral lead (such
as 480V), connect the fixture voltage lead to one of the
supply leads and the fixture common lead to the other
supply lead.
WALL
BRACKET
SUPPORT
BRACKET
These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user's purpose, please
contact your nearest representative.
TM
Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing
or servicing.
Fig. 7
WALL
PLATE
SUPPORT
HOLES
Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269
Ascent/Strut Fixtures
8. Push SUPPORT BRACKET into WALL BRACKET and lower
fixture until WALL BRACKET fits over WALL PLATE. Tighten
1/4-20 SOCKET SCREW. (Fig. 8)
Fig. 8
WALL
BRACKET
SOCKET
SCREW
NOTE: Ensure wires are not pinched while closing WALL
BRACKET to WALL PLATE.
Sheet 3 of 5
4/26/04 IMI-572
IMI-572 AVU040062
