Cooper Lighting INVUE IMI-572 Installation Instructions

INSTALLATION INSTRUCTIONS

IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.

General: Upon receipt of fixture thoroughly inspect for any
freight damage, which should be brought to the attention of
the delivery carrier. Compare the catalog description listed
on the packing slip with the fixture label on the housing to
assure you have received the correct merchandise.
WARNING:
WARNING:

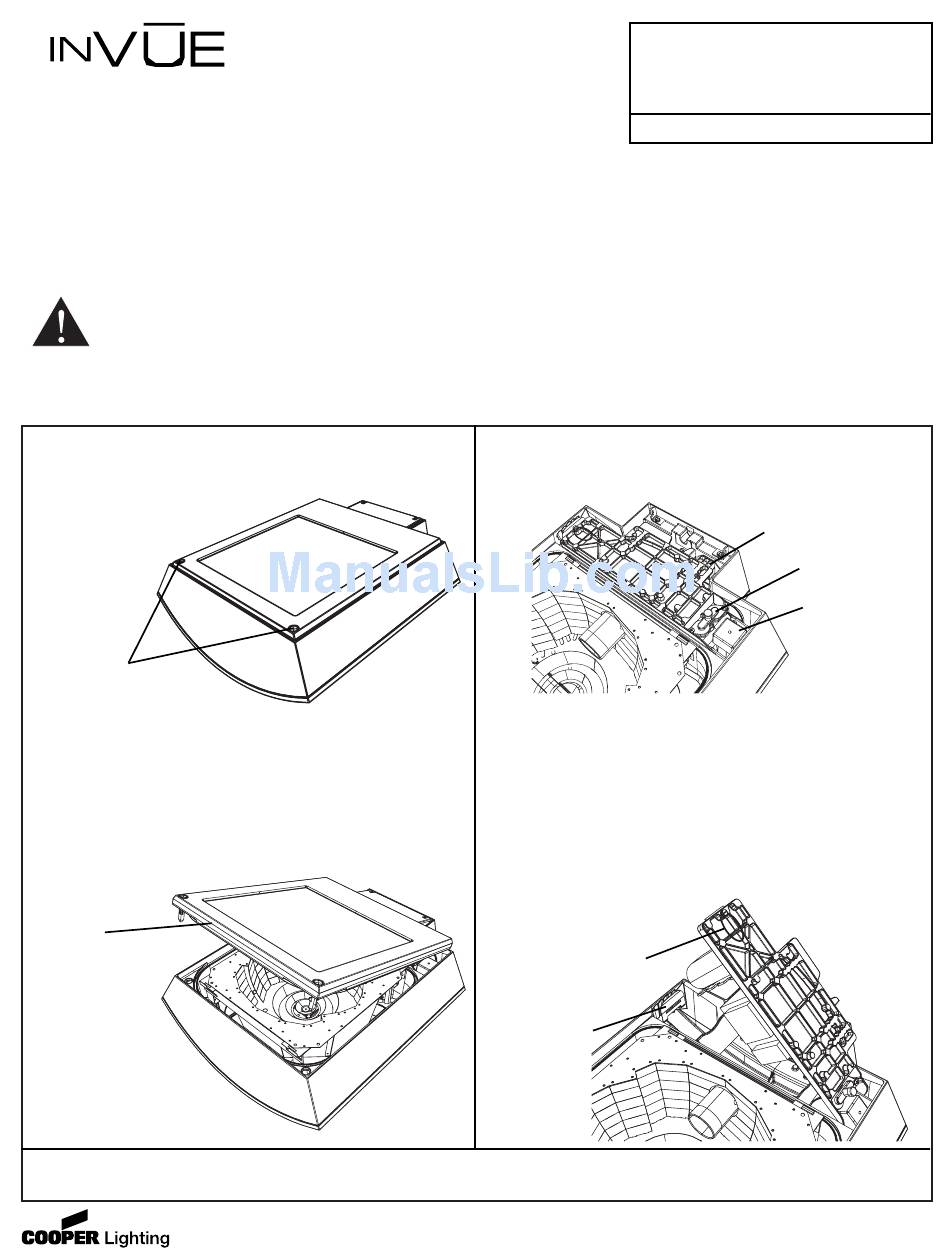

1. Open door by depressing LATCH BUTTONS into door and
lifting. (Fig. 1)
LATCH
BUTTONS
2. Remove DOOR while it is at a 20° - 30° angle to the housing.
This will allow the door to slide over and forward from the
hinges. (Fig. 2)
DOOR
These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user's purpose, please
contact your nearest representative.
TM
Risk of Electric Shock. Disconnect power at fuse or circuit breaker panel or
fuse box before installing or servicing.
Risk of Personal Injury. Fixture may become damaged and/or unstable if not
installed properly. Tighten all fixture components to their recommended torque
values.
Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269
Safety: This fixture must be wired in accordance with
the national electrical code and applicable local codes
and ordinance. Proper grounding is required to insure
personal safety. Carefully observe grounding procedure.
All work should be done by an electrician.
3. Disconnect PRIMARY QUICK-DISCONNECT by grabbing sides
and pulling away from fixture. (Fig. 3)
Fig. 1
NOTE: Fusing and the cube starter are accessible from
the bottom, exposed side of the POWER TRAY. They
may be serviced without opening the POWER TRAY.
4. Hold POWER TRAY HANDLE and press POWER TRAY
LATCH away from the power tray. Hinge power tray up
and lift from fixture.
(Fig. 4)
POWER TRAY
HANDLE
POWER TRAY
LATCH
Fig. 2
Ascent/Strut Fixtures
Sheet 1 of 5
4/26/04 IMI-572
PRIMARY
QUICK
DISCONNECT
FUSES
STARTER
Fig. 3
IMI-572
Fig. 4
AVU040062
