INSTALLATION INSTRUCTIONS
IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.
WARNING:
WARNING:

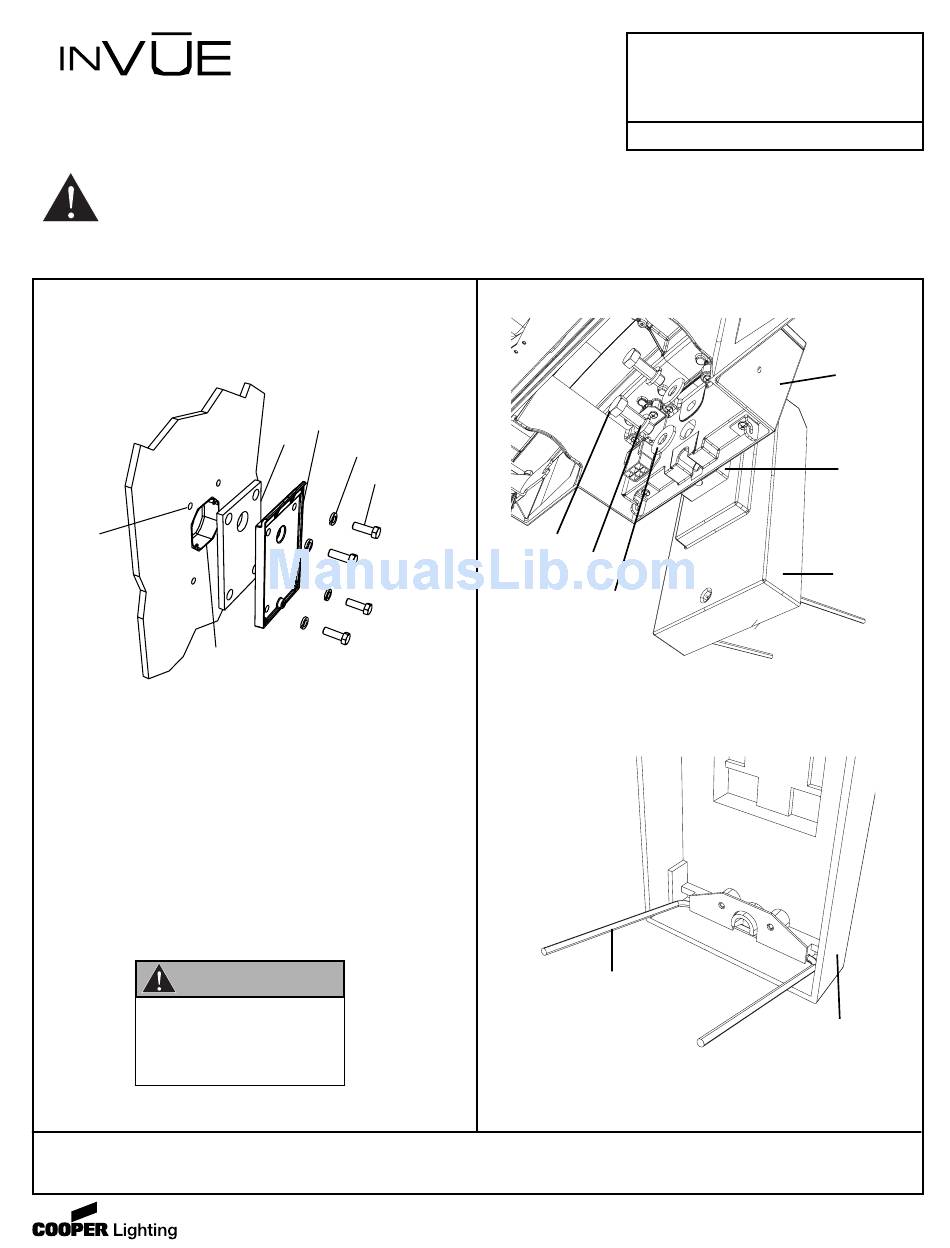

5. Using WALL PLATE as a template, drill (4) holes in wall. Install
appropriate wall anchors (not supplied) and secure GASKET
and WALL PLATE to wall with (4) 1/2-13 X 1-12 long BOLTS
and (4) Lockwashers (Fig. 5). Torque BOLTS to 450 in/lbs.
Fig. 5
HOLES
NOTE: The SPACER, WALL BRACKET and associated
components and hardware are shipped separately from the
fixture.
6. Assemble WALL BRACKET to SPACER and HOUSING with
(2) BOLTS, (2) FLAT WASHERS, and (2) LOCK WASHERS by
feeding BOLTS through holes in SPACER and into tapped
holes in WALL BRACKET. (Fig. 6A & 6B)
Torque BOLTS as follows:
• (2) 1/2 - 13 (AEM) = 450 in/lbs OR
• (2) 5/16 - 18 (AES) = 130 in/lbs
WARNING
Risk of Personal Injury
Fixture may become damaged and/or
unstable if not installed properly
Tighten all fixture components to their
recommended torque values
These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user's purpose, please
contact your nearest representative.
TM
Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing
or servicing.
Risk of Personal Injury. Fixture may become damaged and/or unstable if not installed properly.
Tighten all fixture components to their recommended torque values.
WALL
PLATE
LOCK
GASKET
WASHERS
BOLTS
BOX
Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269
Ascent/Strut Fixtures
Sheet 2 of 5
4/26/04
BOLTS
LOCK
WASHERS
FLAT
WASHERS
Fig. 6B
SUPPORT
BRACKET
IMI-572
Fig. 6A
HOUSING
SPACER
WALL
BRACKET
WALL
BRACKET
IMI-572 AVU040062
