Cooper Lighting Neo-Ray 601-IW Specifications

NEO-RAY ™
NIMBUS I
601-IW
D I R E C T- I N D I R E C T
• Semi-indirect light
distribution.
• Minimalist fixture profile –
8.75" wide by 1.625" high.
• Optimized T5 optics for wide
light distribution. and high
efficiency.
• Die formed steel perforated
housings.
• Modular – 4' and 8'
illuminated sections for
individual or continuous
runs.
• Precision die cast end caps,
standard or tapered.
734
COOPER LIGHTING
S

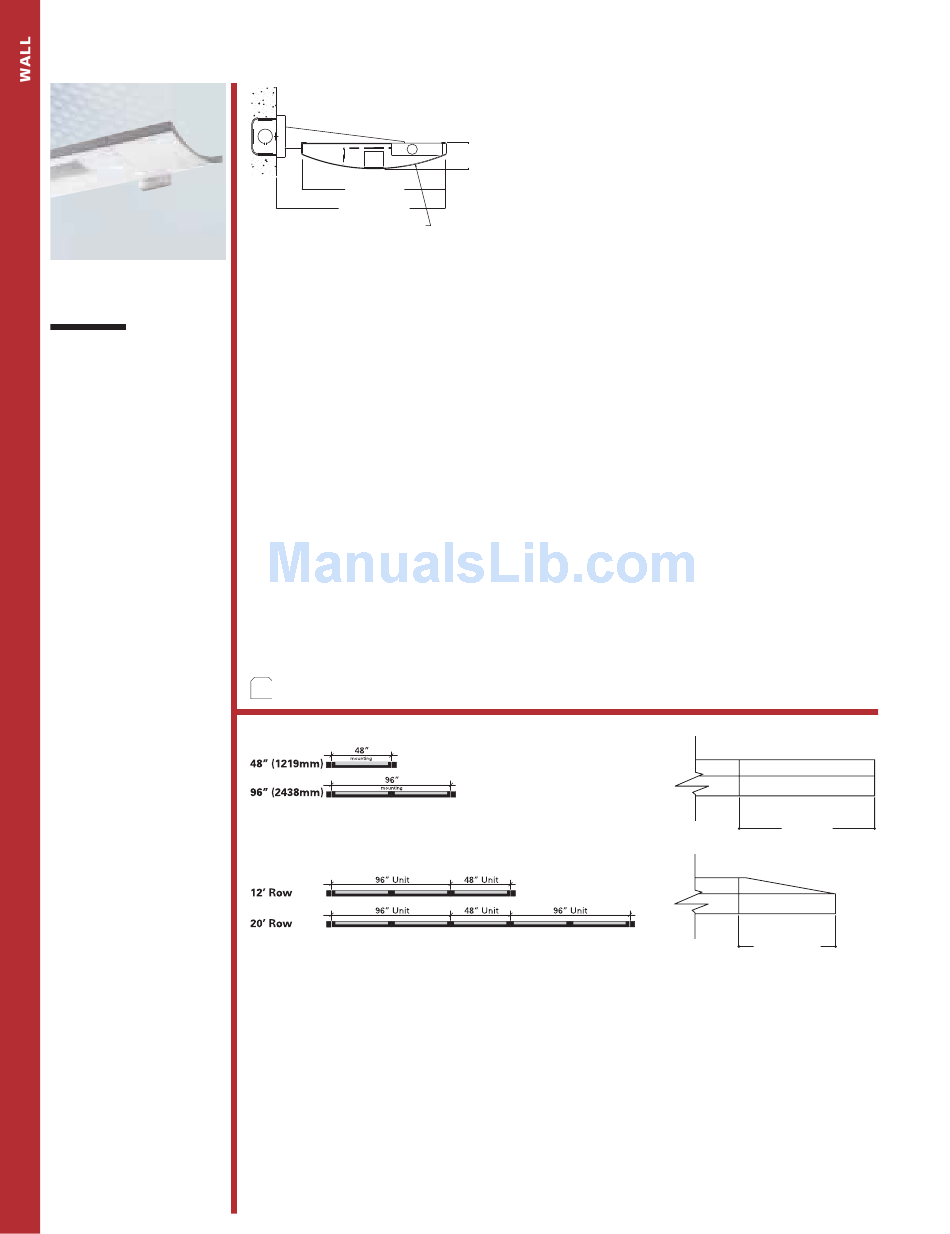

8-3/4" [222mm]
10-1/4" [260.25mm]
2" Perforation Window
Construction
20 guage steel housing with staggered round hole
pattern backed by white acrylic diffuser. Nominal 4'
or 8' illuminated sections.
End Caps
Precision die-cast aluminum.
Reflector
Formed semi-specular anodized aluminum.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Baked on low gloss white powder coated acrylic.
Mounting
Fixture mounts directly to existing structure over a
2" x 4" standard electrical box mounted
horizontally in the wall.
S
= Slim Line Ballast only.
S T A N D A R D L U M I N A I R E L E N G T H S
M O D U L A R R O W C O N F I G U R AT I O N
• Standard length sections join easily to create rows.
• Sections align with T-grid.
• All sections prewired for through-wiring with quick connectors.
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 601IW-1T5HO-40-1EB-SI-RP-ET
Series
601=Nimbus
1-5/8"
[41mm]
Light Output
I=Indirect
Mounting
W=Wall
Number of Lamps
1=1 Lamp 2=2 Lamps
Lamp Type
T5 T5HO
Run Length
Overall Nominal Run Length__ft.
Voltage 1
1=120V 2=277V
Ballast
EB=Electronic Ballast (Standard)
[Only slim line ballast (small case)]
Switching
SI=Single Switching
Perforation
RP=Round BP=None
Emergency
EM=Emergency Pack (Consult Factory)
End Cap
ET=Tapered
(Standard)
1 Due to various constraints, some options may not be combined with others.
(not included)
3=347V U=Universal
DB=Dimming Ballast
DU=Dual Switching (2 Lamps)
ES=Straight
END CAP "ES"
(Straight - Standard)
End Cap - Side View
6" [152mm]
END CAP "ET"
(Tapered)
End Cap - Side View
4-1/4" [108mm]
