INSTALLATION INSTRUCTIONS
IMPORTANT: Read carefully before installing fixture. Retain for future reference.
WARNING: Make certain power is OFF before starting installation or attempting any maintenance.
Adjustment Of Light Throw
Your Vision Wall luminaire has an adjustable forward light
throw.
1. Obtain a 3/16" allen wrench.
2. Locate the stainless steel button head screw on the
outside of the fixture (See Fig. 4).
3. Turn the screw clockwise to pivot the reflector and throw
the light forward.
4. You may monitor the reflector rotation by viewing the
bottom edge of the reflector and the indicator located
inside the fixture. This is viewable through the glass
(See Fig. 5).
5. Rotating the screw counter-clockwise brings the reflector
back down to zero.
CAUTION:
Prior to installing lamp in the fixture, verify that lamp source and wattage correspond with the fixture label. Lamp should
be screwed securely into the socket. Do not over tighten.
WARNING:
Recheck to be sure that the fixture has been wired properly. Improper wiring may result in ballast failure which voids all
warranties.
Cleaning
The reflector and door glass may be cleaned with any suitable non-abrasive glass cleaning solution, soap, or detergent
and rinse with clean water. The reflectors efficiency will be retained only if cleaned at regular intervals. Clean with mild
soap or detergent and water, or liquid wax emulsion. The refractor should also be cleaned along with the reflector, using
care not to chip glass surfaces.
CAUTION:
Do not use abrasive, strong alkaline or acid cleaners.
These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user's purpose, please
contact your nearest representative.
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801
VISION WALL
Sheet 4 of 4
12/29/03
IMI-498

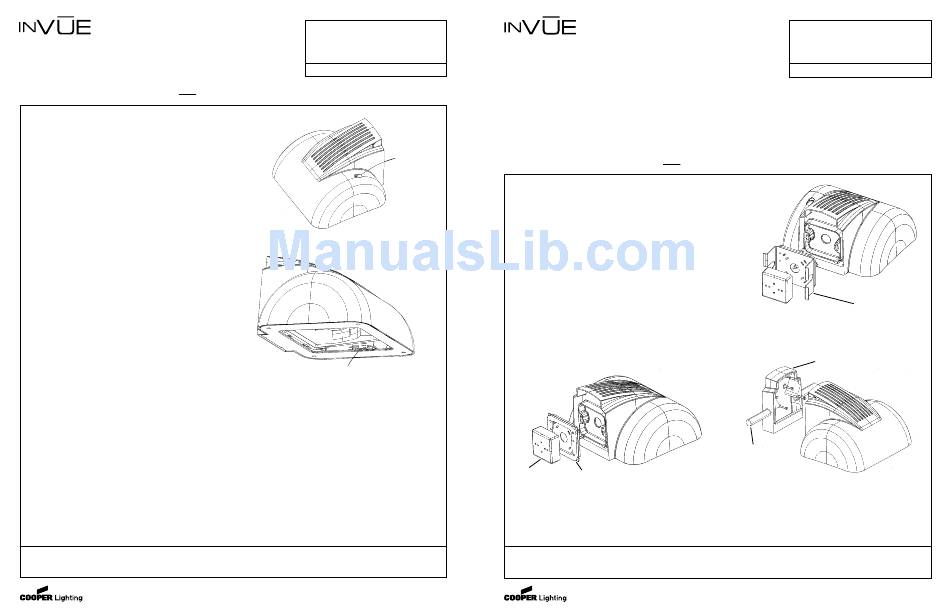

Adjustment
Screw
Fig. 4
Degree Indicator
Fig. 5
www.cooperlighting.com
AVU033142
TM
INSTALLATION INSTRUCTIONS
IMPORTANT: Read carefully before installing fixture. Retain for future reference.
General: Upon receipt of fixture thoroughly inspect for any
freight damage, which should be brought to the attention of
the delivery carrier. Compare the catalog description listed
on the packing slip with the fixture label on the housing to
assure you have received the correct merchandise.
WARNING: Make certain power is OFF before starting installation or attempting any maintenance.

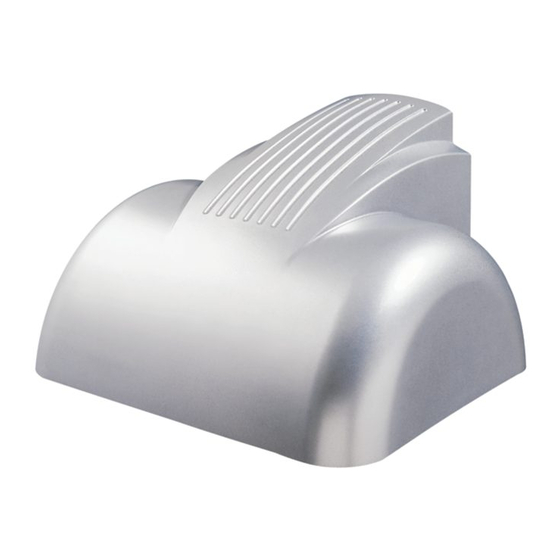

Your Vision Wall Luminaire has three different types of
mounting interface:
1. Standard Mount—mounts to any standard 4" J-box.
(Included with every fixture) (See Fig. 1).
2. Embedded Mount—mounts to a plate embedded into
the wall (Optional Accessory VWM/EM) (See Fig. 2).
3. Thru Way Box—mounts to surface mounted casting,
allowing a conduit run (Optional Accessory VWM/TB)
(See Fig. 3).
NOTE:
Please refer to your mounting kit for specific instructions.
Standard Mount Kit
4" J Box (By Others)
screws to J Box
Fig. 1
STANDARD MOUNT
These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user's purpose, please
contact your nearest representative.
VISION WALL
Sheet 1 of 4
12/29/03
IMI-498
Safety: This fixture must be wired in accordance with
the national electrical code and applicable local codes
and ordinance. Proper grounding is required to insure
personal safety. Carefully observe grounding procedure
under installation section. All work should be done by a
qualified electrician.
Embedded Mount Kit
Fig. 2
EMBEDDED MOUNT
VWM/EM
Thru Way Mounting
Conduit run by others
Fig. 3
THRU-WAY BOX
VWM/TB
AVU033142
