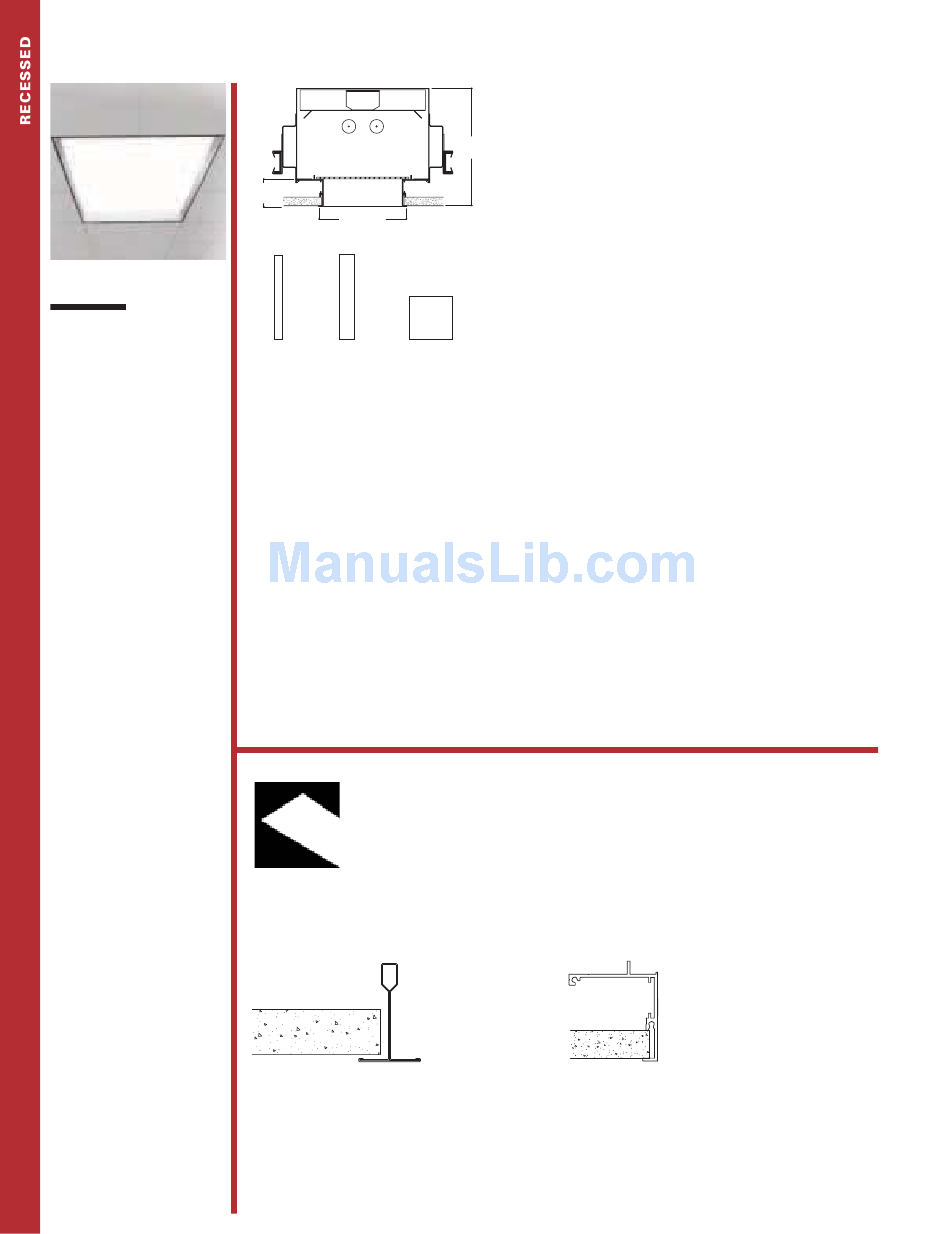

NEO-RAY
™
7
D I R E C T- I N D I R E C T
• Direct light distribution.
• T5 and T8 lamping.
• Die formed steel housing.
• Extruded aluminum ceiling
trims with 2" regress and
mitered corners.
• Fixtures can be mounted in
patterns (specify prior to
release of order).
764
COOPER LIGHTING
2"
[51mm]
5-3/4" [146mm]
24" x 24"
6" x 48"
12" x 48"
[305mm x 1219mm]
[610mm x 610mm]
[152mm x 1219mm]
Construction
20-gauge steel housing.
Shielding
White acrylic lens.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Trim
Extruded aluminum regressed trim with mitered
corners.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
Recessed.
Note: Must be installed prior to ceiling.
S H I E L D I N G O P T I O N S
S46 Structural Acrylic
M O U N T I N G I N F O R M AT I O N
ETG
EXPOSED TEE GRID
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 7-124R-2T8-STG-2EB-SI-S46
Series
9"
7
[229mm]
Fixture Size
648=6"x48"
336=36"x36"
224=24"x24"
[Consult factory for custom sizes]
Mounting
R=Recessed
Number of Lamps
1=1 Lamp
4=4 Lamps
Lamp Type
1
T8
T5
Ceiling Type
ETG=Exposed T-Grid
Voltage
1=120V
2=277V
Ballast
EB=Electronic Ballast (Standard)
Switching
SI=Single Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR
GMF
Shielding
S46=Structural Acrylic (Matte white finish)
1 Due to various constraints, some options may not be combined with others.
SR
SHEET ROCK
248=24"x48"
124=12"x24"
148=12"x48"
448=48"x48"
1
(not included)
2=2 Lamps
3=3 Lamps
5=5 Lamps
6=6 Lamps
T5HO
SR=Sheet Rock (Flanged)
3=347V
U=Universal
DB=Dimming Ballast
DU=Dual Switching
