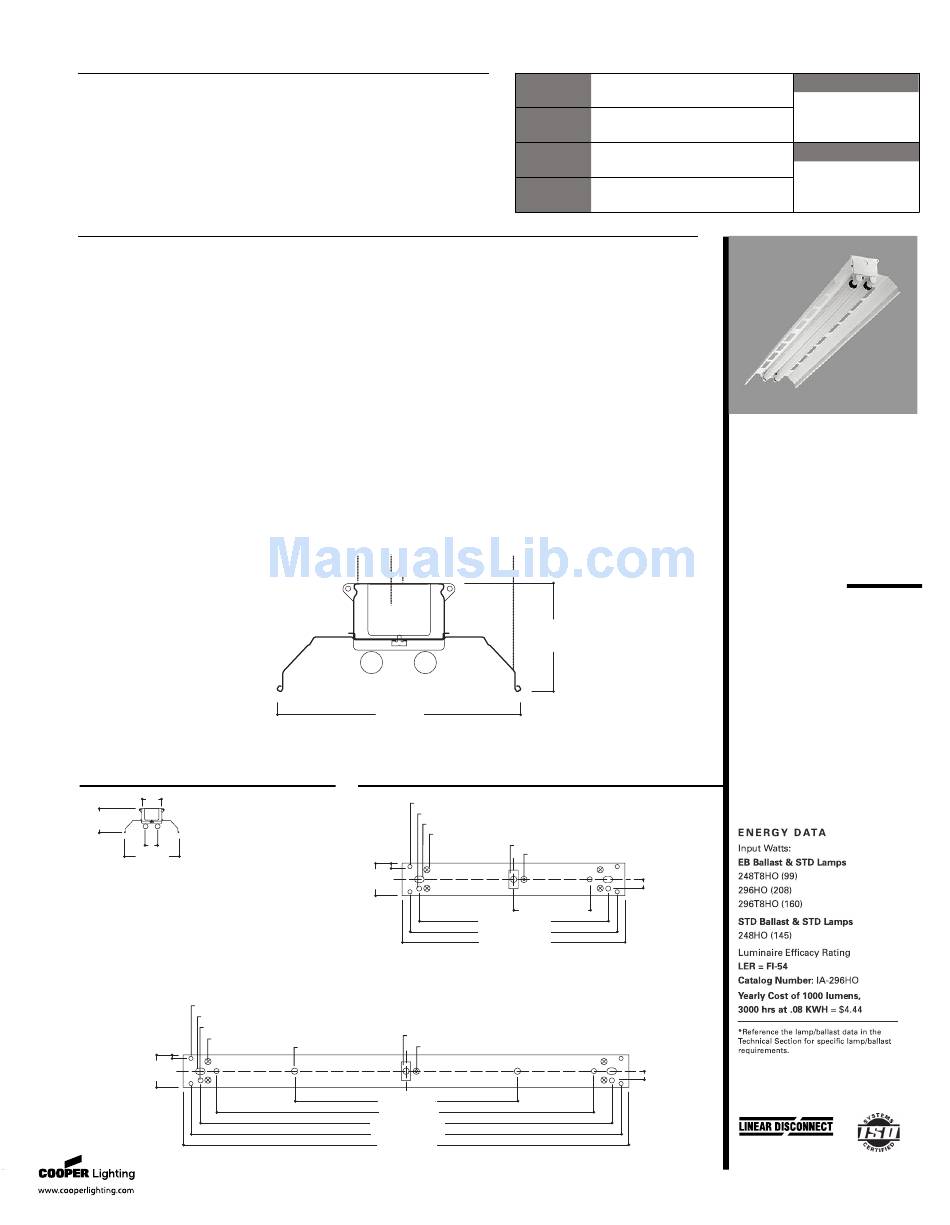

Cooper Lighting METALUX IA Specifications

DESCRIPTION

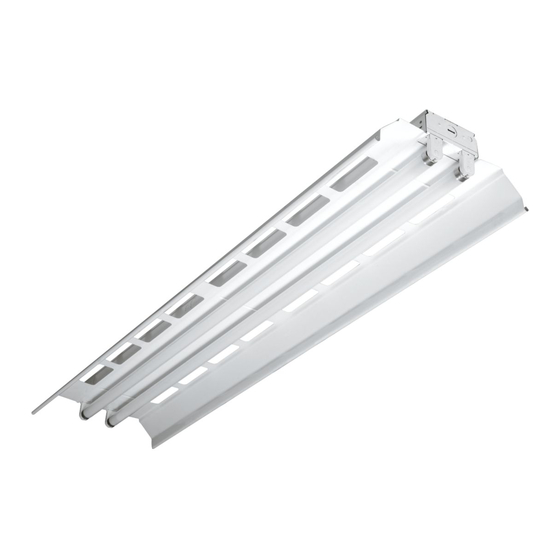

The IA Series is an energy efficient family of light duty industrials that
feature premium performance and durability. The series incorporates sturdy
embossed reflectors that precisely direct and effectively control light. The IA
Series can be installed using various mounting methods and numerous
options and accessories are available. The series is available with both
Apertured (IA) and Closed Top (IC) reflector combinations.
The IA Series can be utilized in simple task and area lighting and industrial
applications.
SPECIFICATION FEATURES
A ... Construction
Channel is code gauge prime cold
rolled steel. Die formed with deep
V-grooves for tong hanger. Die
formed channel connector assures
straight rows and continuity of
ground through set screws.
Numerous KOs for ease of
installation. Lampholder mounting
brackets are easily inserted with
snap-in action.
B ... Electrical*
Ballast are CBM/ETL Class "P" and
positively secured by mounting
bolts. Spring loaded lampholders.
UL/CUL listed. Suitable for damp
locations.
LAMP CONFIGURATIONS
X
5-5/8"
[143mm]
X=4-1/4"
Y
[108mm]
12"
Y=2-5/8"
[305mm]
[67mm]
15/64" [6mm] K.O. (4)
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (5)
3/16"
Ceiling Stand-Off
[5mm] Embossments
4-1/4"
[108mm]
Specifications and Dimensions subject to change without notice.
COOPER LIGHTING - METALUX
C ... Finish
Multistage iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor.
Lighting grade, baked white
enamel finish.
A B C
12"
[305mm]
MOUNTING DATA
15/64" [6mm] K.O. (4)
11/16" [17mm] x 1" K.O. (2)
7/8" [22mm] K.O. (4)
7/32" [6mm] x 3/8" [10mm] K.O. (4)
3/16"
[5mm]
4-1/4"
[108mm]
1-3/4" [17mm] x 3-1/4" K.O. (1)
Ground Screw Bump
11/16" [17mm] K.O. (2)
48" [1219mm]
81" [2057mm]
89-1/2" [2273mm]
91-7/8" [2334mm]
96" [2438mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
D ... Reflectors
Die formed prime steel, code
gauge. Formed edges for added
strength. All reflectors 4' sections.
12" width Reflectors secured with
quarter-turn fasteners. Baked white
enamel. Standard with 8% uplight
(IA). Closed top reflector (IC).
Optional industrial fixtures are
available incorporating silver
technology enhancements.
(SilverLining)
D
5-5/8"
[143mm]
1-3/4" [44mm] x 3-1/4" [83mm] K.O. (1)
Ground Screw Bump
1-1/8"
[29mm]
16-1/2" [419mm]
41-1/2" [1054mm]
43-7/8" [1114mm]
48" [1219mm]
1-1/8"
[29mm]
®
Type
Date
IA, IC
248HO
296HO
248T8HO
296T8HO
4' OR 8' INDUSTRIAL
2 LAMP
HIGH OUTPUT, 800 MA
Light Duty Industrial
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
