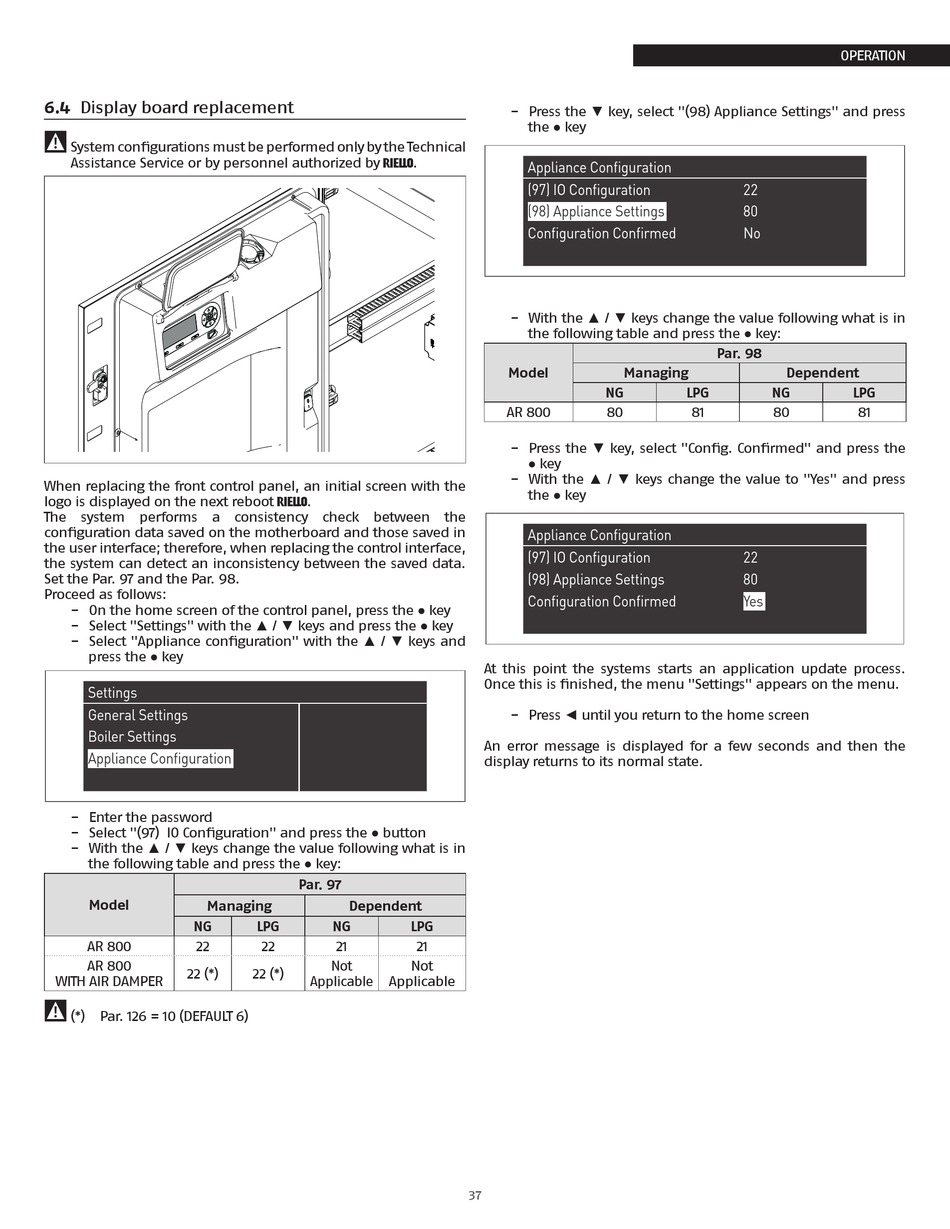

6.4 Display board replacement

9
System configurations must be performed only by the Technical
Assistance Service or by personnel authorized by
When replacing the front control panel, an initial screen with the
logo is displayed on the next reboot
The system performs a consistency check between the
configuration data saved on the motherboard and those saved in
the user interface; therefore, when replacing the control interface,
the system can detect an inconsistency between the saved data.
Set the Par. 97 and the Par. 98.
Proceed as follows:
− On the home screen of the control panel, press the ● key
− Select "Settings" with the ▲ / ▼ keys and press the ● key
− Select "Appliance configuration" with the ▲ / ▼ keys and
press the ● key
Settings
" "
General Settings
" "
Boiler Settings
" "
Appliance Configuration
"
− Enter the password
− Select "(97) IO Configuration" and press the ● button
− With the ▲ / ▼ keys change the value following what is in
the following table and press the ● key:
Model
Managing
NG
AR 800 22
AR 800
22 (*)
WITH AIR DAMPER
9
(*) Par. 126 = 10 (DEFAULT 6)
R
R .
"
Par. 97
Dependent
LPG NG LPG
22 21
Not Not
22 (*)
Applicable Applicable
− Press the ▼ key, select "(98) Appliance Settings" and press
the ● key
.
Appliance Configuration
"
(97) IO Configuration
"
(98) Appliance Settings
"
Configuration Confirmed
"
− With the ▲ / ▼ keys change the value following what is in
the following table and press the ● key:
Model
AR 800
− Press the ▼ key, select "Config. Confirmed" and press the
● key
− With the ▲ / ▼ keys change the value to "Yes" and press
the ● key
Appliance Configuration
"
(97) IO Configuration
"
(98) Appliance Settings
"
Configuration Confirmed
"
At this point the systems starts an application update process.
Once this is finished, the menu "Settings" appears on the menu.
− Press ◄ until you return to the home screen
An error message is displayed for a few seconds and then the
display returns to its normal state.
21
37
"
22
"
80
"
No
" " "
Par. 98
Managing
NG LPG NG
80 81 80
"
22
"
80
"
Yes
" " "
