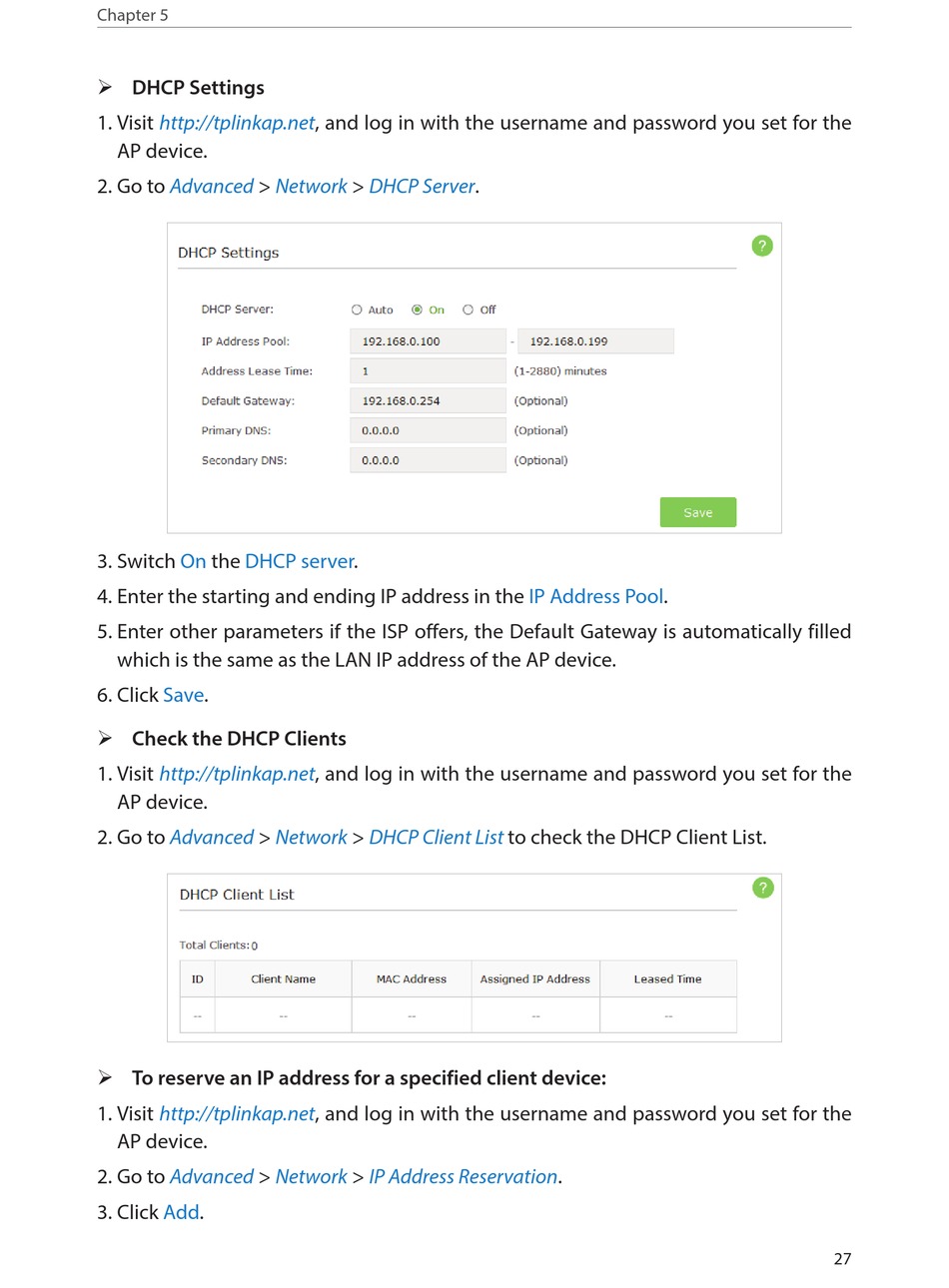

TP-Link AP300 User Manual page 30

Chapter 5
¾ DHCP Settings
1. Visit http://tplinkap.net, and log in with the username and password you set for the
AP device.
2. Go to Advanced > Network
3. Switch On the DHCP
4. Enter the starting and ending IP address in the
5. Enter other parameters if the ISP offers, the Default Gateway is automatically filled
which is the same as the LAN IP address of the AP device.
6. Click Save.
¾ Check the DHCP Clients
1. Visit http://tplinkap.net, and log in with the username and password you set for the
AP device.
2. Go to Advanced > Network
¾ To reserve an IP address for a specified client device:
1. Visit http://tplinkap.net, and log in with the username and password you set for the
AP device.
2. Go to Advanced > Network
3. Click Add.
> DHCP Server.
server.
> DHCP Client List
> IP Address Reservation.
IP Address Pool.
to check the DHCP Client List.
27
