TP-Link AP200 Quick Installation Manual

Quick

Installation Guide

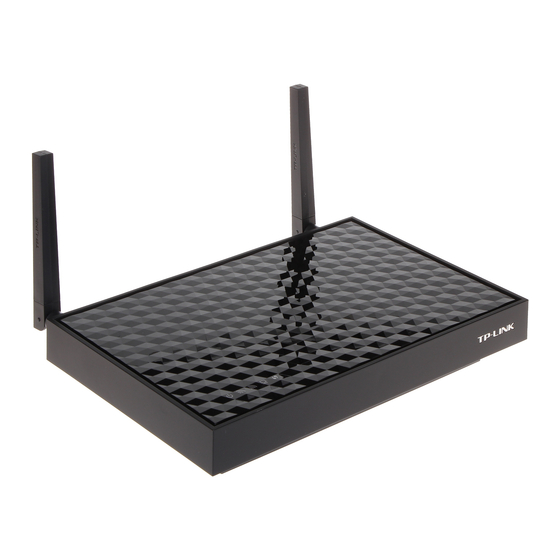

11AC Wireless Gigabit Access Point
AP200
Configure the AP Device
AP Mode (Default)
Internet
Wired Router
B A
1. Connect the AP device according to steps A to D in the diagram.
2. Turn on the power and wait until the Power (
are lit and stable, use the default SSID and Password printed on the product
label to join the AP device's Wi-Fi network.
Repeater/Bridge Mode
Internet
Host AP's SSID
Host AP
Connect the AP device according to steps A and B in the diagram.
1.
Turn on the power and wait until the Power (
2.
are lit and stable, use the default SSID and Password printed on the product
label to join the AP device's Wi-Fi network.
Client Mode
The AP device functions as a wireless adapter to connect the wired device (e.g. Xbox/TV) to a wireless network.
Internet
Host AP's SSID
Host AP
Connect the device according to the steps A and B in the diagram.
1.
2. Turn on the power and wait until the Power (
The AP device transforms your wired network into wireless.
AP200's SSID
C D
) and Wireless (
The AP device extends the range of an existing Wi-Fi network.
AP200's SSID
A B
) and Wireless (
A
) LED is lit and stable.
Before your start
Which mode do you need? Please refer to the table to choose a proper mode.
You want to convert your wired (Ethernet) network to a
wireless network.
You are in a Wi-Fi dead-zone or a place with weak wireless
signal. You want to have a greater effective range of the
wireless signal throughout your home or office.
You have a wired device with an Ethernet port and no wireless
capability, for example, a Smart TV, Media Player, or game
console. You want to connect it to the Internet wirelessly.
You want your devices connected to different wireless
networks and isolated by VLANs.
Note: You can enjoy the Internet surfing now. For your wireless network security, it is recommended to change the
default SSID (network name) and the password of your Wi-Fi network. To do so, perform the following steps.
Launch a web browser and enter http://tplinkap.net, then log in using admin
3.
(all lowercase) for both Username and Password.
Click Quick Setup, then select Access Point mode and click Next. Follow the
4.
step-by-step on-screen instructions to complete the configuration.
Now, reconnect your wireless devices to the new Wi-Fi network.
& ) LEDs
Enjoy!
Launch a web browser and enter http://tplinkap.net, then log in using admin
3.
(all lowercase) for both Username and Password.
4. Click Quick Setup, then select Repeater/Bridge mode and click Next. Follow
the step-by-step on-screen instructions to complete the configuration.
5. Relocate the AP device to a good place. For details, you can refer to Q5 in
Frequently Asked Questions (FAQ).
Now, connect your wireless devices to the Wi-Fi network using the AP device's
SSID and password.
& ) LEDs
Enjoy!
3. Connect your computer or smart device to the AP device via a wired or
wireless connection. The default SSID and wireless password are printed on
the product label.
Other
Device
or
4. Launch a web browser and enter http://tplinkap.net, then log in using admin
TV (all lowercase) for both Username and Password.
or
Click Quick Setup, then select Client mode and click Next. Follow the
5.
B
step-by-step on-screen instructions to complete the configuration.
Now, connect your wired-only device to the AP device using an Ethernet cable.
Enjoy!
Scenarios Operating Modes
AP Mode (Default Mode)
Repeater/Bridge Mode
Client Mode
Multi-SSID Mode
