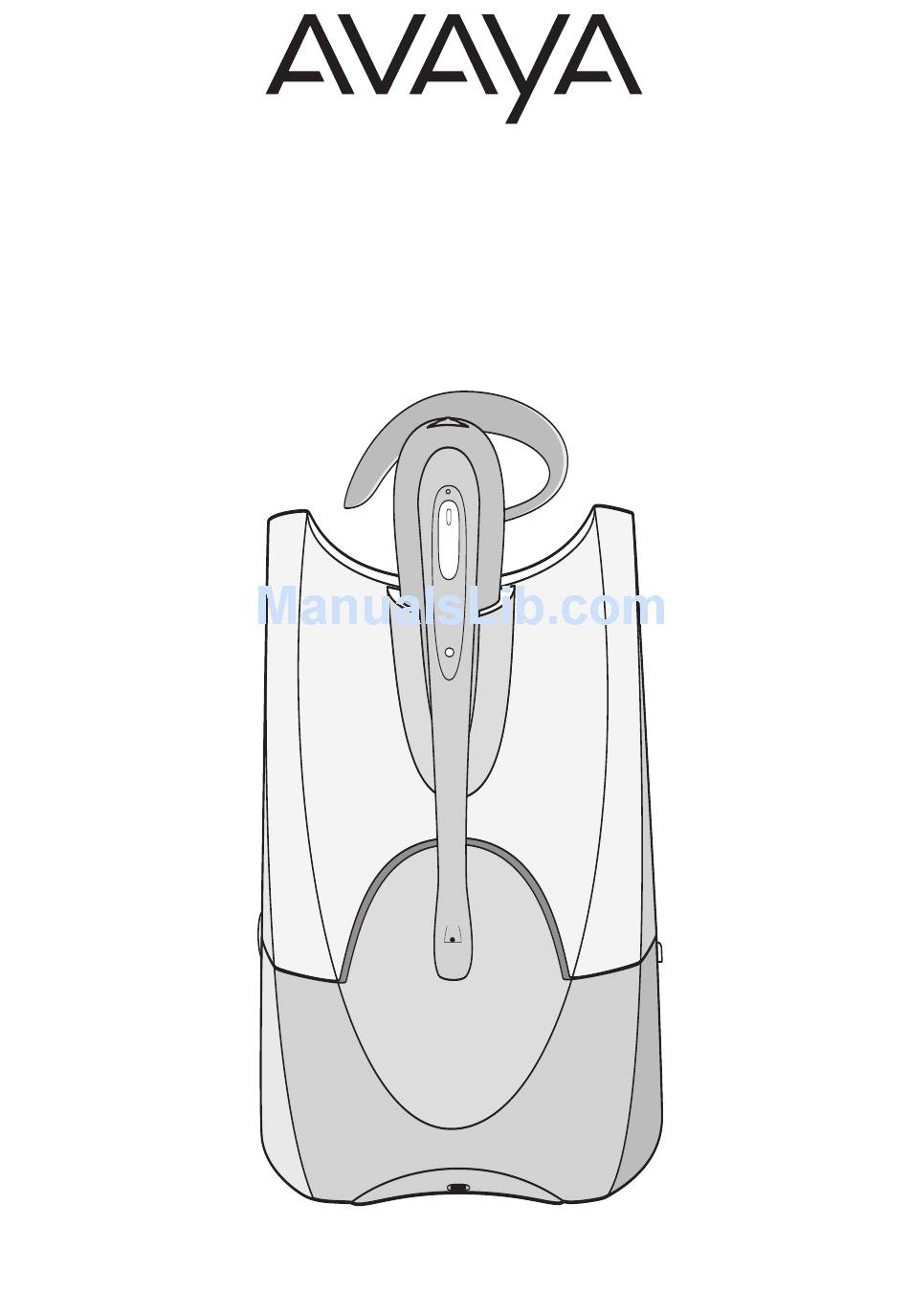

  • Page 1 AWH54/AWH55 IRELESS FFICE EADSET YSTEM USER GUIDE...

  • Page 2: Table Of Contents

    • Do not use this equipment to report a gas leak while you are in the vicinity of a gas leak. • Never allow children to play with the headset/adapter–small parts may be a choking hazard. • Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

  • Page 3: Components Of Base

    Indicator (Amber) IntelliStand Switch Back View Speak Volume Fine Tune Listen Volume Master COMPONENTS OF HEADSET Cordless Headset Talk Button Microphone Boom Listen Volume/ Mute Control Talk Indicator Light Outside View Microphone Inside View WEARING OPTIONS Small Medium Large Earloops...

  • Page 4: Awh55 Setup 1

    AWH55 SETUP 1 AWH55 SETUP 2 with AVAYA 2420, 4610SW, 4620, with AVAYA 2410, 5410, 6416 D+M and 6424 D+M Telephones 4620SW, 4621SW, 4622SW, 4625SW, 4630SW 5420, 5610 and 5620 Telephones configuration dial set to 1 configuration dial set to 3 {see pages 4 and 5 for callout of components}...

  • Page 5: Charge Your Headset

    Optional Lifter CHARGE YOUR HEADSET Dock the headset into the charge cradle (1). The amber charge indicator (9) will flash during charge. If charge indicator does not go on, reposition headset in the cradle.

  • Page 6: Wearing Options

    Audio problems may be experienced if this is incorrectly set. If you cannot hear a dial tone through your headset, turn the configuration dial until you obtain it. Then dial a co-worker and while speaking, turn the configuration dial through the 4 positions. Select the position that provides the best sound quality for both you and your co-worker.

  • Page 7: Listen Volume

    If they cannot hear you at all, try changing your telephone configuration dial on the base to another one of its 4 positions until you hear them and they hear you. Volume adjustments can be made separately as described in the next step.
  • Page 8 PLACE A CALL USING YOUR HEADSET To place a call using the headset, the system must be in headset mode and dial in the normal way. You will then be able to talk through your headset. When the call is complete, return the AWH54/AWH55 to the handset mode.

  • Page 9: Low Battery Warning

    As you walk away from the base unit you will eventually reach the system operating range limit. When in headset mode a warning alert of two beeps will sound in the headset shortly before you meet the range limit. On hearing this alert you should walk closer to the base unit to ensure call quality is maintained.

  • Page 10: Troubleshooting

    Press the mute control (15) dial once to turn mute off. •When an optional lifter is connected, three repetitive beeps indicate a call is coming into the headset. Press the talk button on the headset to answer the call.

  • Page 11: Subscription

    5 seconds. The power indicator (3) will then flash (red). 3. Press and hold the headset mute control button for a minimum of 5 seconds. The talk indicator light (17) on the headset will then illuminate (green).

  • Page 12: Troubleshooting

    To perform the system reset follow this procedure: 1. Press both the talk button (14) and the mute control (15) button on the headset for 5 seconds. 2. When the talk indicator light (17) on the headset blinks, release both buttons. 3. Press the talk button again.

  • Page 13: Fcc Requirements

    Earloops–pack of 3 Uniband Headset Replacement Cushions Foam (2) Replacement Cushions Leatherette (2) Behind-the-Head Neckband with Adapter Headset with Tripod Tripod For information on optional accessories and replacement parts, call the AVAYA Heeadset Support Line (see page 27). FCC REQUIREMENTS FCC Requirements—Part 15...

  • Page 14: Industry Canada

    1 (configure it as an “abrdg-appr” and setup the “Auto Select Any Idle Appearance” to Yes). The Avaya Headset Support Line is ready to assist you! Dial (800) 544-4779 Monday through Friday, 5 Pacific Time. For accessibility information also call the Avaya Headset Support Line.
  • Page 15 © 2005 Plantronics, Inc. All rights reserved. IntelliStand is a registered trademark of Plantronics, Inc. US patents 5,210,791; 6,735,453; D492,667 and D496,029; EM 69109; Patents Pending Printed in China 63915-03 (5-05)
