General Information

The Model 751-001 Speaker Amplifier is an important
component of the 700 Series Page/Party
mates directly with the 701 and 751 Series Enclosures
and broadcasts page announcements over the
®
Page/Party
system speakers.
The Model 751-001 is constructed of 16-gauge cold-
rolled steel and is suitable for either indoor or outdoor
use.

Installation

CAUTION
Do not install this equipment
in hazardous areas or areas other than those on the
equipment approval list in the Specifications section.
Such installation may cause a safety hazard and
consequent injury or property damage.
To install, plug the Model 751-001 Speaker Amplifier into the appropriate enclosure, and tighten the 4
screws in the corners of the front panel. Refer to Figure 1 for typical installation details.

Adjustment

Model 751-001 Speaker Amplifier mates with an enclosure wired directly to a speaker. The speaker
volume adjustment is located under the GAI-Tronics nameplate on the front panel. Refer to Figure 1. Use
a small flat-blade screwdriver to adjust the speaker sound volume.
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
Model 751-001
Speaker Amplifier
®
system. It
610-777-1374 n 800-492-1212 n Fax: 610-775-6540
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS

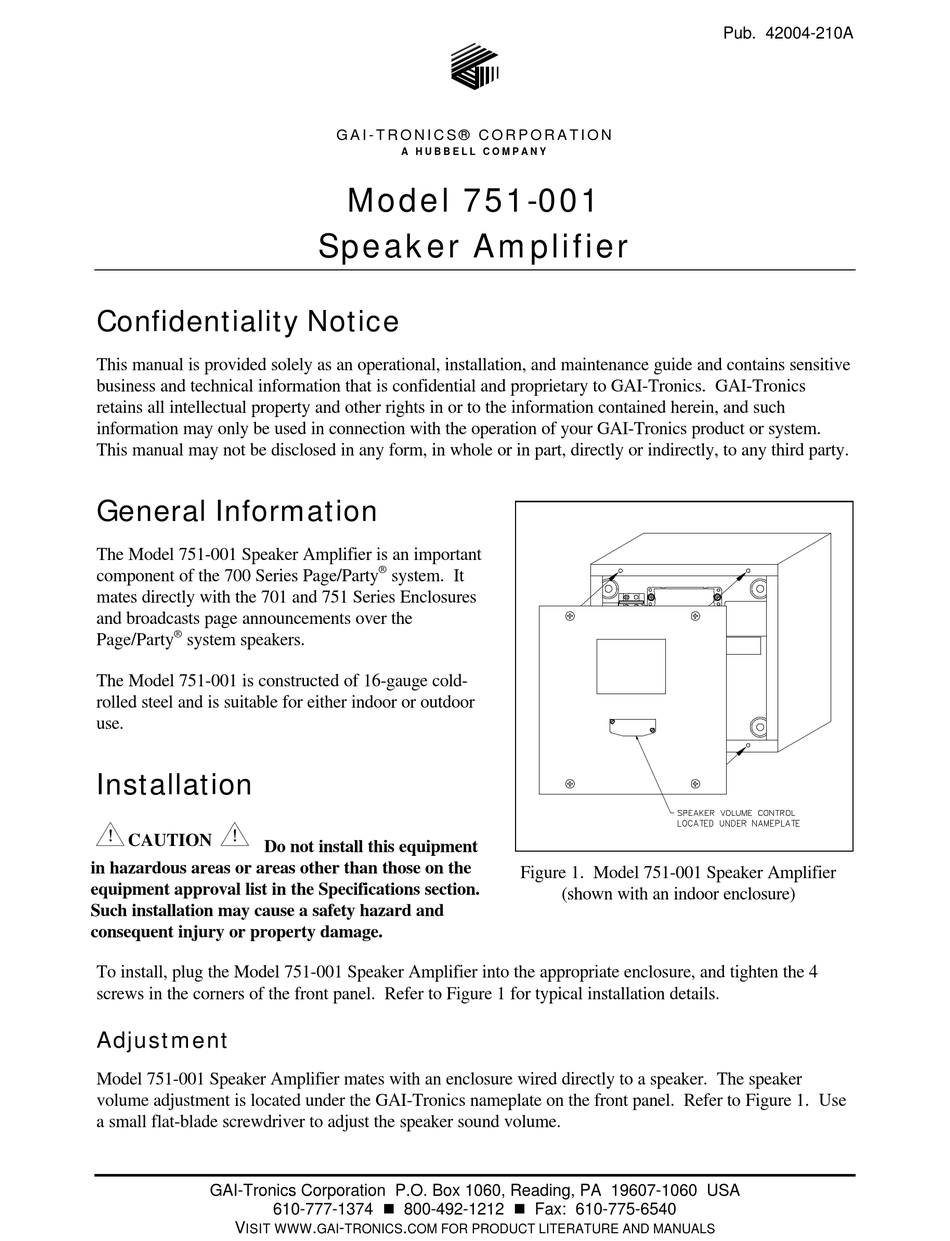

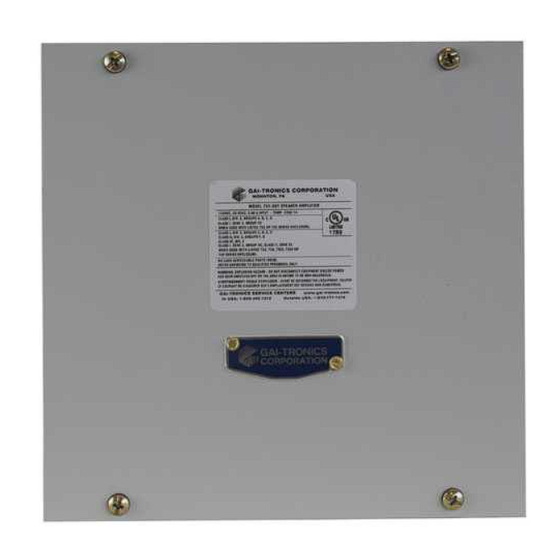

Figure 1. Model 751-001 Speaker Amplifier
