Hubbell GAI-Tronics SmartSeries Quick Installation Manual

Quick Installation Guide Pub. 42004-742L2AQG

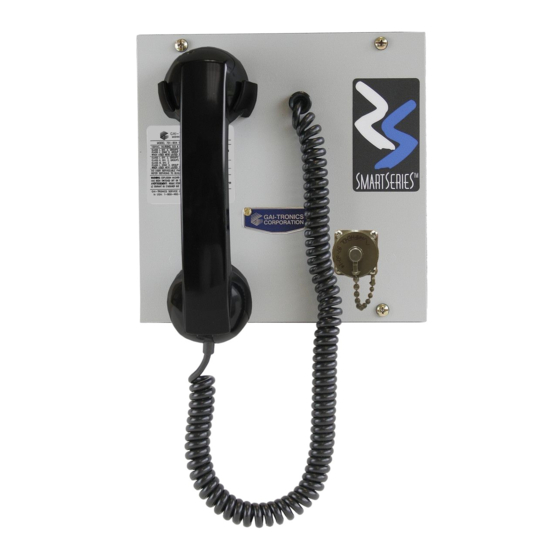

701-904RF SmartSeries Handset/Speaker Amplifier with Auxiliary Jack

General Information

This manual is provided as a simple installation guide for the 701-904RF SmartSeries Handset/Speaker Amplifier with Auxiliary Jack. For the
complete installation, operation and maintenance manual please visit http://www.gai-tronics.com/manuals.
Temperature range .............................................................................................................. −22º F to +158º F (−30º C to +70º C), operating and storage
Dimensions .................................................................................................................. 8.12 H  8.12 W  6.12 D inches (206  206  155 mm), overall
Shipping weight .......................................................................................................................................................................................... 7.1 lbs (3.2 kg)

Installation

See full product manual for additional information at www.gai-tronics.com.
This handset/speaker amplifier mates directly with the 702, 703, 732 and 733 series amplifier enclosures and is suitable for indoor or outdoor use.
The 701-904RF SmartSeries Handset/Speaker Amplifier with Auxiliary Jack plugs directly into the enclosure. Use extra care not to damage the
protruding latch wings of connector J2 located on the bottom edge of the amplifier during installation.
It also plugs into standard SmartSeries enclosures such as a SmartSeries station RTU enclosure, an Emergency Party Line (EPL) enclosure, or an
enclosure that houses a party line End-of-Line (EOL) module. When installing the assembly in one of these enclosures, you must also connect the
10-conductor keyed ribbon cable to J2 on the bottom of the Speaker Amp/Power Supply PCBA. Be sure that the red line on the edge of the cable
lines up with J2-pin 1.
Ensure that the connectors mate securely and then tighten the four screws in the corners of the front panel. The following figure shows installation
and adjustment details. Please refer to it when you are installing and adjusting the amplifier.
Figure 1.
