HUBBCOM™ Handset/Speaker Amplifier Station
General Information
This guide covers the installation of HUBBCOM™ handset/speaker amplifier stations (see Figure 1). Refer to Publication
42004-785 for detailed explanations of the available configuration options and adjustments, system specifications, and
Warranty information. GAI-Tronics' product documentation is on the GAI-Tronics website at https://www.gai-tronics.com.
Options
The factory installs and configures standard and optional equipment to default settings.
•
70-volt/100-volt speaker termination PCBA with
24-watt monitored output
•
24 V dc power supply
•
speaker amplifier only (no handset)
•
headset with page pressbar
•
All-Call push button
Settings and Adjustments
•
speaker volume
•
receiver volume
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
V
G A I - T R O N I C S
A H U B B E L L C O M P A N Y
Quick Installation Guide
Complete the following settings and adjustments after installation:
•
series/parallel speaker configuration
•
station ID and zone selector

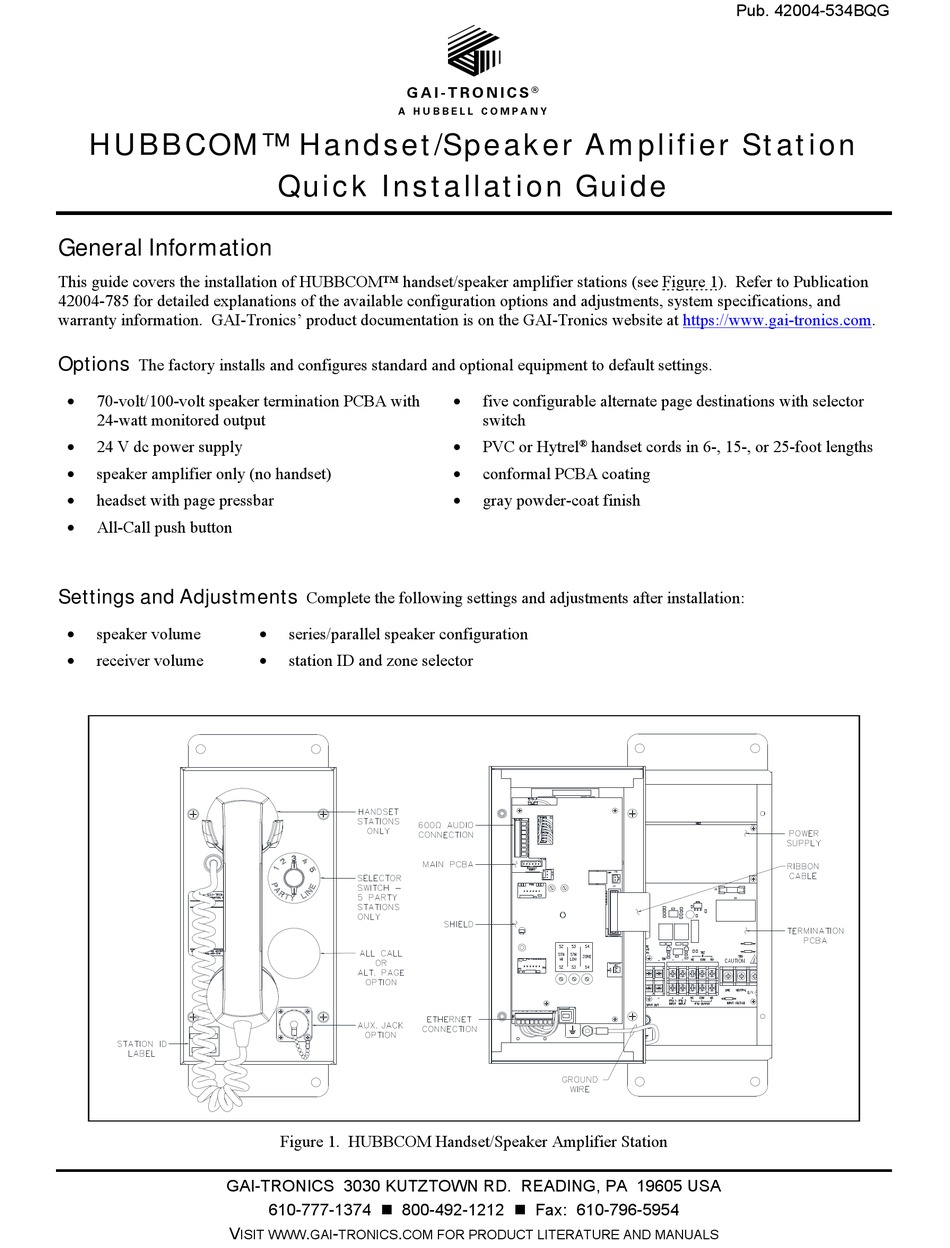

Figure 1. HUBBCOM Handset/Speaker Amplifier Station
610-777-1374 800-492-1212 Fax: 610-796-5954
.
-
.
ISIT WWW
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
®
•
five configurable alternate page destinations with selector
switch
•
®
PVC or Hytrel
handset cords in 6-, 15-, or 25-foot lengths
•
conformal PCBA coating
•
gray powder-coat finish
Pub. 42004-534BQG
Advertisement
Table of Contents
Related Manuals for Hubbell Gai-Tronics HUBBCOM
Summary of Contents for Hubbell Gai-Tronics HUBBCOM
- Page 1 Pub. 42004-534BQG G A I - T R O N I C S ® A H U B B E L L C O M P A N Y HUBBCOM™ Handset/Speaker Amplifier Station Quick Installation Guide General Information This guide covers the installation of HUBBCOM™ handset/speaker amplifier stations (see Figure 1). Refer to Publication 42004-785 for detailed explanations of the available configuration options and adjustments, system specifications, and warranty information.
- Page 2 Pub. 42004-534BQG HUBBCOM™ Handset/Speaker Amplifier Station Quick Installation Guide Page 2 of 4 Important Safety Instructions • Read, follow, and retain instructions—Read and follow all safety and operating instructions before installing or operating the unit. Retain instructions for future reference. •...
- Page 3 Pub. 42004-534BQG HUBBCOM™ Handset/Speaker Amplifier Station Quick Installation Guide Page 3 of 4 Field Wiring HUBBCOM stations provide terminal blocks, on the termination PCBA, located in the rear enclosure, for field wiring the power, speaker, and RTU connections. The main PCBA, mounted to the back of the front panel, provides pluggable terminal blocks for the 600-ohm audio and Ethernet network connections (see Figure 3).
- Page 4 Pub. 42004-534BQG HUBBCOM™ Handset/Speaker Amplifier Station Quick Installation Guide Page 4 of 4 Figure 3. HUBBCOM Termination and Main PCBA Connections Front Cover Installation After all termination and adjustments are complete: Place the front cover on the rear enclosure. Do not pinch any cables Secure the front cover using the four screws and washer provided.
- Page 5 Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
